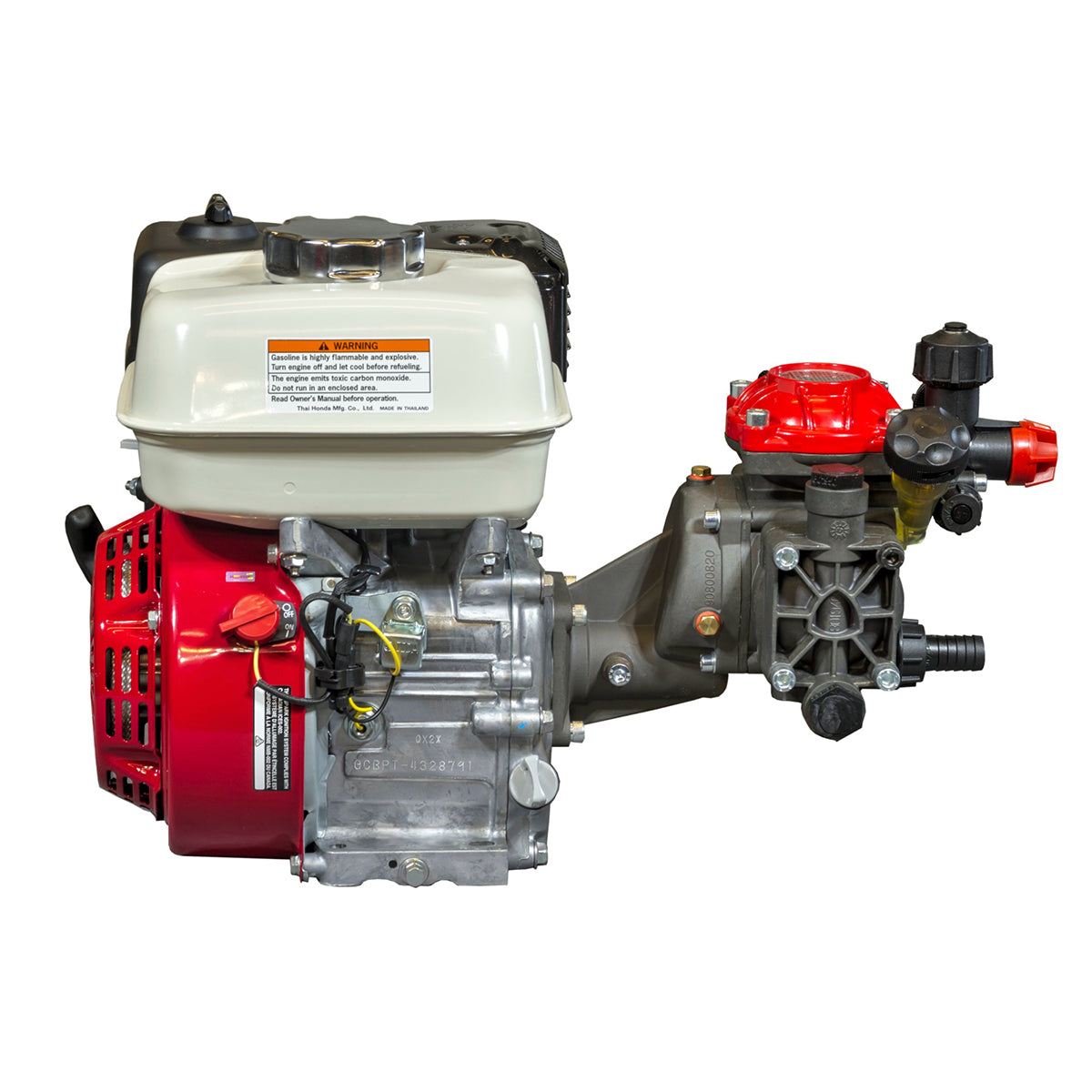

Hypro D252GRGI & Honda GX160 Engine
Hypro D252GRGI & Honda GX160 Engine
Brand:
Hypro
Weight:
60.0 lb
Item #
GXD252
15
Hypro D252GRGI & Honda GX160 Engine
Hypro D252GRGI & Honda GX160 Engine
Brand:
Hypro
Weight:
60.0 lb
Item #
GXD252
15
Regular price
$999.00
Sale price
$999.00
Regular price
List Price:
$999.00
Unit price
per
Couldn't load pickup availability

Earn 2,997 points with this purchase.
Collapsible content
Product Overview
Please note - the 252 regulator has been completely upgraded and now features the GR20, bringing improved performance and enhanced usability. Key enhancements include two discharge ball valves with ½" hose barbs, ¾" bypass and a pressure gauge.
For your agricultural spraying needs, install this Hypro D252GRGI & Honda GX160 Engine. Designed to deliver medium pressures up to 290 PSI, it features a Honda OHV commercial-grade engine that's both powerful and durab
Manufacturer description
Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Pressure and output are designed for optimum performance of small to medium-sized sprayers.
Honda's GX series engines are legendary for superior reliability and performance. And there's no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions without sacrificing power output or performance.
Features
9910-D252GRGI:
- Max flow: 6 gpm
- Max pressure: 290 psi
- Includes 9910-KIT1990 pressure regulator and gearbox with 3/4" hollow shaft for mounting to 2.5 to 5.5 hp gas engines
- Port sizes: 3/4" HB inlet, 3/8" HB outlet, 5/8" HB bypass
- Pump shaft rotation: CW and CCW
- Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
- Housing: Anodized aluminum
- Max fluid temperature: 140°F
- Weight: 14 lbs Honda GX160 Engine:
- Engine type: Air-cooled 4-stroke OHV
- Starting sytem: Recoil starter
- Shaft: 3/4" solid keyed
- Bore x stroke: 68 x 45 mm
- Displacement: 163 cm3
- Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
- Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
- PTO shaft rotation: Counterclockwise from PTO shaft side
- Compression ratio: 9.0 : 1
- Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
- Carburetor: Butterfly
- Ignition system: Transistorized magneto
- Lubrication system: Splash
- Governor system: Centrifugal mechanical
- Air cleaner: Dual element
- Oil capacity: 0.61 US qt. (0.58 L)
- Fuel tank capacity: 3.3 US qts (3.1 liters(more...)
Parts breakdown
Diagram
Parts list
-
