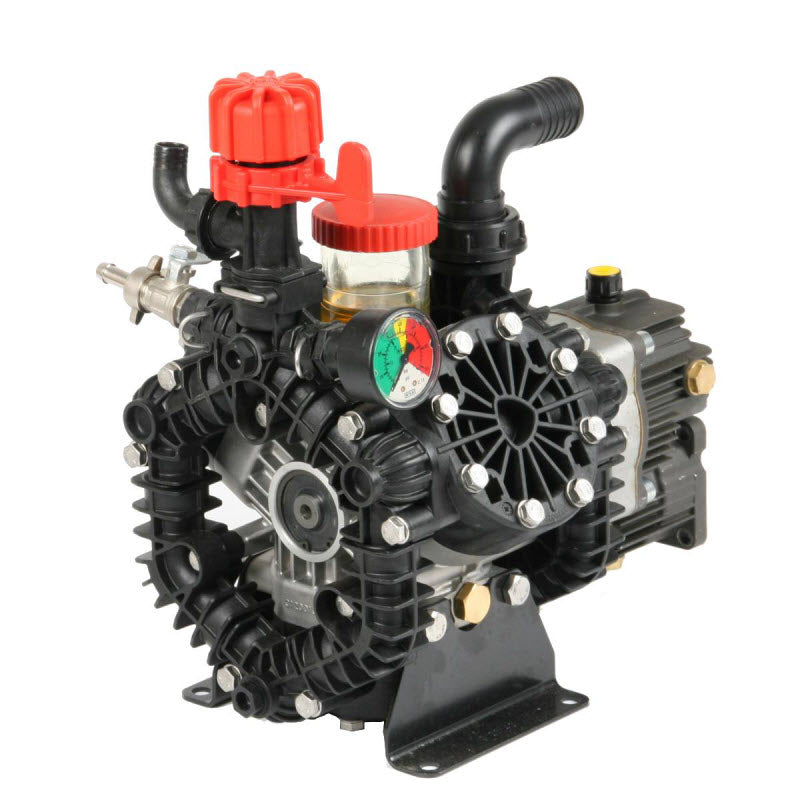

Hypro Pump - DP423GRGI

Hypro Pump - DP423GRGI

Brand:
Hypro
Weight:
30.0 lb
Item #
9910DP423GRGI
1 1

Hypro Pump - DP423GRGI

Hypro Pump - DP423GRGI

Brand:
Hypro
Weight:
30.0 lb
Item #
9910DP423GRGI

$1,245.65
$1,245.65 List Price: $2,264.82

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,737 points with this purchase.

See Details

View full details

Product Overview

Hypro Diaphragm Pump

Model #: 9910-DP423GRGI

This Hypro diaphragm pump is built with polypropylene heads and manifolds for corrosion resistance, and is designed for harsh chemical applications such as phosphorus and nitrogen-based fertilizers with ferrous sulfate. Comes complete with control unit and gear box for 3/4" engine shafts.

Features:
  • Max flow: 11 gpm
  • Max pressure: 290 psi


Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Suction Manifold
    • Ref No: 1
    • Part No: 99103120410
    • Qty Req: 1
    Our price: $16.95 List price: $20.92
  • Manifold Section
    • Ref No: 3
    • Part No: 99103120050
    • Qty Req: 5
    Our price: $8.69 List price: $10.73
  • Manifold Section
    • Ref No: 4
    • Part No: 99103120060
    • Qty Req: 4
    Our price: $11.15 List price: $13.76
  • Bolt
    • Ref No: 7
    • Part No: 99103120250
    • Qty Req: 12
    Our price: $4.07 List price: $5.02
  • Elbow 1-1/2"
    • Ref No: 12
    • Part No: 99103040160
    • Qty Req: 1
    Our price: $24.62 List price: $30.40
  • Ring nut
    • Ref No: 13
    • Part No: 9910750670
    • Qty Req: 1
    Our price: $13.66 List price: $16.87
  • Piston Ring
    • Ref No: 15
    • Part No: 99103120130
    • Qty Req: 3
    Our price: $5.62 List price: $6.94
  • Sleeve
    • Ref No: 16
    • Part No: 99103120090
    • Qty Req: 3
    Our price: $32.04 List price: $39.55
  • Plate
    • Ref No: 18
    • Part No: 99103120120
    • Qty Req: 3
    Our price: $7.10 List price: $8.76
  • Diaphragm Stud
    • Ref No: 19
    • Part No: 99103120100
    • Qty Req: 3
    Our price: $16.95 List price: $20.92
  • Snap Ring
    • Ref No: 20
    • Part No: 99101460490
    • Qty Req: 2
    Our price: $2.01 List price: $2.48
  • Head
    • Ref No: 22
    • Part No: 99103120020
    • Qty Req: 3
    Our price: $27.05 List price: $33.40
  • Circlip
    • Ref No: 25
    • Part No: 99101880450
    • Qty Req: 6
    Our price: $0.42 List price: $0.52
  • Piston
    • Ref No: 26
    • Part No: 99103120070
    • Qty Req: 3
    Our price: $21.41 List price: $26.43
  • Connecting Rod Pin
    • Ref No: 27
    • Part No: 9910380300
    • Qty Req: 3
    Our price: $25.24 List price: $31.16
  • Connecting Rod
    • Ref No: 28
    • Part No: 99103120180
    • Qty Req: 3
    Our price: $25.21 List price: $31.12
  • Shaft Seal
    • Ref No: 29
    • Part No: 99103120640
    • Qty Req: 1
    Our price: $6.70 List price: $8.27
  • Bearing
    • Ref No: 30
    • Part No: 9910380230
    • Qty Req: 1
    Our price: $52.65 List price: $65.00
  • Retaining Ring
    • Ref No: 31
    • Part No: 99101300120
    • Qty Req: 2
    Our price: $21.17 List price: $26.14
  • Shaft
    • Ref No: 32
    • Part No: 99103120170
    • Qty Req: 1
    Our price: $148.62 List price: $183.48
  • Bearing
    • Ref No: 33
    • Part No: 9910961780
    • Qty Req: 1
    Our price: $75.50 List price: $93.21
  • Shaft Seal
    • Ref No: 34
    • Part No: 99103120160
    • Qty Req: 1
    Our price: $11.60 List price: $14.32
  • Retaining Ring (Int.)
    • Ref No: 35
    • Part No: 9910961790
    • Qty Req: 1
    Our price: $5.87 List price: $7.25
  • Drain plug AR Diaphragm Pump
    • Ref No: 37
    • Part No: 99103120690
    • Qty Req: 2
    Our price: $5.61 List price: $6.99
  • Manifold Section
    • Ref No: 38
    • Part No: 99103120051
    • Qty Req: 1
    Our price: $20.29 List price: $25.05
  • Threaded Adapter
    • Ref No: 40
    • Part No: 99103120420
    • Qty Req: 1
    Our price: $17.84 List price: $22.03
  • Pressure Gauge
    • Ref No: 41
    • Part No: 99101880340
    • Qty Req: 1
    Our price: $63.85 List price: $78.83
  • 3/8" Hose Barb & Nut
    • Ref No: 42
    • Part No: 9910110131
    • Qty Req: 1
    Our price: $11.15 List price: $13.76
  • Outlet ball valve w/o barb
    • Ref No: 43
    • Part No: 9910130491
    • Qty Req: 1
    Our price: $85.55 List price: $106.94
  • Threaded Adapter
    • Ref No: 44
    • Part No: 99103120421
    • Qty Req: 1
    Our price: $5.62 List price: $6.94
  • Hose Barb 3/4"
    • Ref No: 45
    • Part No: 9910550460
    • Qty Req: 1
    Our price: $5.35 List price: $6.60
  • Barb Nut
    • Ref No: 47
    • Part No: 9910550450
    • Qty Req: 1
    Our price: $4.19 List price: $5.17
  • Knob-Adjust
    • Ref No: 48
    • Part No: 99101880220
    • Qty Req: 1
    Our price: $12.94 List price: $15.97
  • Spring
    • Ref No: 49
    • Part No: 99103120370
    • Qty Req: 1
    Our price: $111.53 List price: $137.69
  • Ring Nut
    • Ref No: 50
    • Part No: 99101880210
    • Qty Req: 1
    Our price: $8.88 List price: $10.96
  • Body
    • Ref No: 52
    • Part No: 99103120280
    • Qty Req: 1
    Our price: $19.86 List price: $24.52
  • Pin
    • Ref No: 55
    • Part No: 99101880240
    • Qty Req: 1
    Our price: $5.35 List price: $6.60
  • Piston
    • Ref No: 56
    • Part No: 99103120290
    • Qty Req: 1
    Our price: $5.00 List price: $6.17
  • Piston
    • Ref No: 58
    • Part No: 99103120300
    • Qty Req: 1
    Our price: $13.83 List price: $17.07
  • Seat
    • Ref No: 59
    • Part No: 99103120310
    • Qty Req: 1
    Our price: $4.11 List price: $5.07
  • Retaining Clip
    • Ref No: 60
    • Part No: 99103120320
    • Qty Req: 1
    Our price: $7.23 List price: $8.92
  • Bolt
    • Ref No: 61
    • Part No: 9910620342
    • Qty Req: 4
    Our price: $3.34 List price: $4.12
  • Base
    • Ref No: 62
    • Part No: 99103120140
    • Qty Req: 2
    Our price: $15.83 List price: $19.54
  • Plug
    • Ref No: 63
    • Part No: 9910880530
    • Qty Req: 1
    Our price: $4.86 List price: $6.00
  • Pump Body
    • Ref No: 64
    • Part No: 99103120010
    • Qty Req: 1
    Our price: $254.85 List price: $314.63
  • Oil Sight Glass
    • Ref No: 65
    • Part No: 99103120240
    • Qty Req: 1
    Our price: $41.35 List price: $51.05
  • Cap
    • Ref No: 67
    • Part No: 99101040320
    • Qty Req: 1
    Our price: $29.44 List price: $36.35
  • Discharge Manifold
    • Ref No: 68
    • Part No: 99103120330
    • Qty Req: 1
    Our price: $16.05 List price: $19.82
  • Retaining Clip
    • Ref No: 69
    • Part No: 9910392580
    • Qty Req: 2
    Our price: $4.33 List price: $5.35
  • Key
    • Ref No: 70
    • Part No: 99102280950
    • Qty Req: 1
    Our price: $2.15 List price: $2.65
  • Bolt
    • Ref No: 71
    • Part No: 99103120270
    • Qty Req: 24
    Our price: $1.16 List price: $1.43
  • Threaded Adapter
    • Ref No: 73
    • Part No: 99103120610
    • Qty Req: 1
    Our price: $8.33 List price: $10.29
  • Ring Nut
    • Ref No: 74
    • Part No: 99103120440
    • Qty Req: 1
    Our price: $5.05 List price: $6.23
  • Elbow
    • Ref No: 76
    • Part No: 99103120460
    • Qty Req: 1
    Our price: $10.25 List price: $12.66
