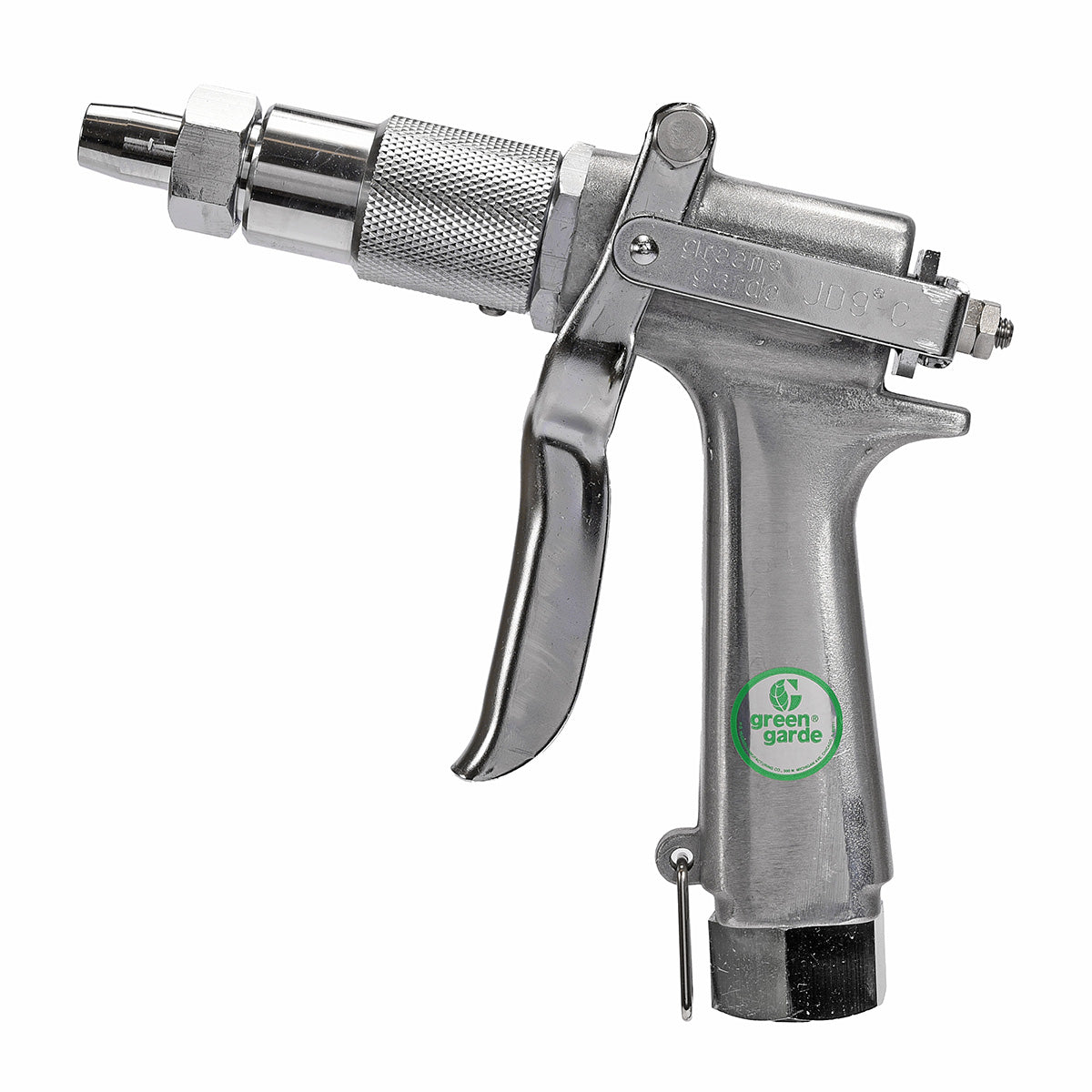

JD9®-C High Pressure Spray Gun

JD9®-C High Pressure Spray Gun

Brand:
HD Hudson
Weight:
2.09 lb
Item #
38500
30 reviews
1 1

JD9®-C High Pressure Spray Gun

JD9®-C High Pressure Spray Gun

Brand:
HD Hudson
Weight:
2.09 lb
Item #
38500
30 reviews

$164.25
$164.25 List Price: $225.00

Earn 493 points with this purchase.

See Details

View full details

Product Overview

Connect this JD9®-C High Pressure Spray Gun to your high-pressure sprayer systems for maximum efficiency and fluid deployment. This product can withstand pressures up to 1000 PSI and comes equipped with a large tip, adjustable from fine mist spraying to long-distance pencil stream squirting with just a turn of the barrel. It also features an option to attach it to the Green Garde 38919 root feeder, so it offers versatility as well as performance.
To add a Quick connect plug add part # 7465.

Manufacturer description

Heavy duty spray gun 1000 psi max. Adjustable from fine mist to long distance pencil stream by turning the barrel. Effective for any tree and shrub application. Designed with the operator in mind! Trigger lock for continuous spraying; drip free shutoff. Ergonomically designed for use all day long. Gun comes equipped with large adjustable nozzle. There are also XS, S, M and XL adjustable tips as well as 5 choices of shower head style nozzles. Please see part number 38919 for compatible root feeder attachment.

Features

  • Max pressure: 1000 psi
  • Nozzle: Equipped with 38602 Large Adjustable Nozzle (3-8 gpm), other sizes and showerhead nozzles available
  • Inlet: Female GHT

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cap
    • Ref No: 1
    • Part No: 38516
    • Qty Req: 1
    Our price: $9.25 List price: $11.00
  • 38602 Large Tip JD9-C
    • Ref No: 2
    • Part No: 38602
    • Qty Req: 1
    Our price: $14.88 List price: $15.74
  • O-Ring
    • Ref No: 3
    • Part No: 38517
    • Qty Req: 1
    Our price: $4.91 List price: $5.45
  • Adjuster Nut (Barrel)
    • Ref No: 4
    • Part No: 38534
    • Qty Req: 1
    Our price: $59.38 List price: $65.98
  • Screw for Adjuster Nut
    • Ref No: 5
    • Part No: 38535
    • Qty Req: 2
    Our price: $2.39 List price: $2.65
  • O-Ring
    • Ref No: 6
    • Part No: 38519
    • Qty Req: 1
    Our price: $2.61 List price: $2.75
  • Back-up Ring
    • Ref No: 7
    • Part No: 38521
    • Qty Req: 1
    Our price: $2.45 List price: $2.80
  • Adjuster Body
    • Ref No: 8
    • Part No: 38524
    • Qty Req: 1
    Our price: $61.65 List price: $68.50
  • Whirler - Replacement for JD9 & Greensmaster Spray Guns
    • Ref No: 9
    • Part No: 38518
    • Qty Req: 1
    Our price: $21.15 List price: $23.50
  • Teflon® Valve Seat
    • Ref No: 10
    • Part No: 38525
    • Qty Req: 1
    Our price: $14.40 List price: $16.75
  • Stainless Steel Valve for JD9 & Greensmaster Spray Guns
    • Ref No: 11
    • Part No: 38528
    • Qty Req: 1
    Our price: $50.50 List price: $57.50
  • Valve Spring
    • Ref No: 12
    • Part No: 38527
    • Qty Req: 1
    Our price: $8.66 List price: $9.62
  • Locking Nut
    • Ref No: 13
    • Part No: 38539
    • Qty Req: 1
    Our price: $4.28 List price: $4.75
  • Stainless Steel Bolt
    • Ref No: 14
    • Part No: 38532
    • Qty Req: 1
    Our price: $10.26 List price: $10.80
  • Trigger Assembly
    • Ref No: 15
    • Part No: 38531
    • Qty Req: 1
    Our price: $29.75 List price: $35.00
  • Nut
    • Ref No: 16
    • Part No: 38538
    • Qty Req: 2
    Our price: $2.24 List price: $2.49
  • Gland
    • Ref No: 17
    • Part No: 38536
    • Qty Req: 1
    Our price: $14.69 List price: $16.32
  • O-Ring
    • Ref No: 18
    • Part No: 38537
    • Qty Req: 1
    Our price: $4.65 List price: $5.08
  • Gland Packing
    • Ref No: 19
    • Part No: 38522
    • Qty Req: 1
    Our price: $2.52 List price: $2.75
  • Grip (38530 Tapped for Gauge)
    • Ref No: 20
    • Part No: 38529
    • Qty Req: 1
    Our price: $50.08 List price: $55.64
  • Stopper Clip
    • Ref No: 22
    • Part No: 38533
    • Qty Req: 1
    Our price: $2.75 List price: $3.05
  • Special Packing Gasket
    • Ref No: 23
    • Part No: 38541
    • Qty Req: 1
    Our price: $3.63 List price: $3.99
  • 3/4" Garden Hose Coupling
    • Ref No: 24
    • Part No: 38540
    • Qty Req: 1
    Our price: $29.93 List price: $31.50
  • Garden Hose Washer
    • Ref No: 25
    • Part No: 38543
    • Qty Req: 1
    Our price: $5.13 List price: $5.40
