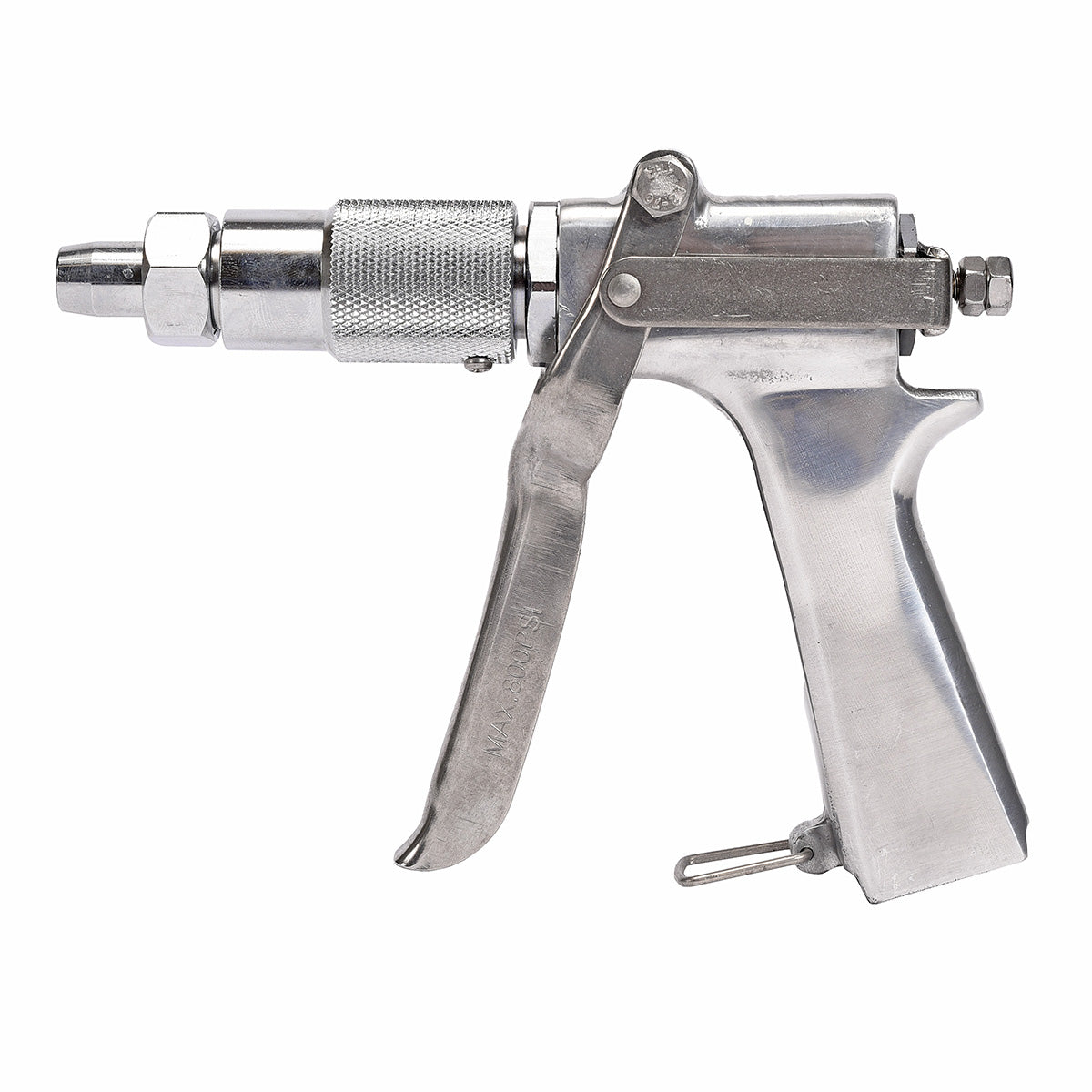

Greensmaster Spray Gun

Greensmaster Spray Gun

Brand:
Sprayer Depot
Weight:
1.72 lb
Item #
38505
48 reviews
Skip to product information
1 of 1

Greensmaster Spray Gun

Greensmaster Spray Gun

Brand:
Sprayer Depot
Weight:
1.72 lb
Item #
38505
48 reviews

Regular price $78.99
Sale price $78.99 Regular price List Price: $149.99

Earn 237 points with this purchase.

View full details

Collapsible content

Product Overview

Designed like the Green Garde JD9®-C model, the Greensmaster Spray Gun has an adjustable stream and a maximum pressure rating of 800 psi. Perfect for tree and shrub applications, it uses the same nozzles and repair kits as the Green Garde JD9®-C. This product has a 1/2" female pipe thread inlet and comes standard with the large adjustable nozzle (3-8 gpm).

Manufacturer description

Heavy duty spray gun 800 psi max. Adjustable from fine mist to long distance pencil stream by turning the barrel. Effective for any tree and shrub application. This is a copy of the Green Garde JD9®-C Spray Gun. It has close to the same pressure rating as the Green Garde JD9®-C Spray Gun and uses the same nozzles and repair kits. Please note, it is not recommended that you attach the Green Garde® 38919 root feeder to this gun and the gun does not come with the 3/4" ght fitting or reference numbers 23 and 25 on the parts breakdown. Gun has 1/2" female pipe thread. JD9®-C High Pressure Spray Gun (Item Code 38500) has option to attach Green Garde® 38919 Root Feeder and comes with 3/4" garden hose coupling and seals (References 23, 24 and 25).

Features

  • Max pressure: 800 psi
  • Nozzle: Equipped with 38602 Large Adjustable Nozzle (3-8 gpm), other sizes and showerhead nozzles available
  • Inlet: 1/2" FNPT

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cap
    • Ref No: 1
    • Part No: 38516
    • Qty Req: 1
    Our price: $9.25 List price: $11.00
  • 38602 Large Tip JD9-C
    • Ref No: 2
    • Part No: 38602
    • Qty Req: 1
    Our price: $14.88 List price: $15.74
  • O-Ring
    • Ref No: 3
    • Part No: 38517
    • Qty Req: 1
    Our price: $4.91 List price: $5.45
  • Adjuster Nut (Barrel)
    • Ref No: 4
    • Part No: 38534
    • Qty Req: 1
    Our price: $59.38 List price: $65.98
  • Screw for Adjuster Nut
    • Ref No: 5
    • Part No: 38535
    • Qty Req: 2
    Our price: $2.39 List price: $2.65
  • O-Ring
    • Ref No: 6
    • Part No: 38519
    • Qty Req: 1
    Our price: $2.61 List price: $2.75
  • Back-up Ring
    • Ref No: 7
    • Part No: 38521
    • Qty Req: 1
    Our price: $2.45 List price: $2.80
  • Adjuster Body
    • Ref No: 8
    • Part No: 38524
    • Qty Req: 1
    Our price: $61.65 List price: $68.50
  • Whirler - Replacement for JD9 & Greensmaster Spray Guns
    • Ref No: 9
    • Part No: 38518
    • Qty Req: 1
    Our price: $21.15 List price: $23.50
  • Teflon® Valve Seat
    • Ref No: 10
    • Part No: 38525
    • Qty Req: 1
    Our price: $14.40 List price: $16.75
  • Stainless Steel Valve for JD9 & Greensmaster Spray Guns
    • Ref No: 11
    • Part No: 38528
    • Qty Req: 1
    Our price: $50.50 List price: $57.50
  • Valve Spring
    • Ref No: 12
    • Part No: 38527
    • Qty Req: 1
    Our price: $8.66 List price: $9.62
  • Locking Nut
    • Ref No: 13
    • Part No: 38539
    • Qty Req: 1
    Our price: $4.28 List price: $4.75
  • Stainless Steel Bolt
    • Ref No: 14
    • Part No: 38532
    • Qty Req: 1
    Our price: $10.26 List price: $10.80
  • Trigger Assembly
    • Ref No: 15
    • Part No: 38531
    • Qty Req: 1
    Our price: $29.75 List price: $35.00
  • Nut
    • Ref No: 16
    • Part No: 38538
    • Qty Req: 2
    Our price: $2.24 List price: $2.49
  • Gland
    • Ref No: 17
    • Part No: 38536
    • Qty Req: 1
    Our price: $14.69 List price: $16.32
  • O-Ring
    • Ref No: 18
    • Part No: 38537
    • Qty Req: 1
    Our price: $4.65 List price: $5.08
  • Gland Packing
    • Ref No: 19
    • Part No: 38522
    • Qty Req: 1
    Our price: $2.52 List price: $2.75
  • Grip (38530 Tapped for Gauge)
    • Ref No: 20
    • Part No: 38529
    • Qty Req: 1
    Our price: $50.08 List price: $55.64
  • Stopper Clip
    • Ref No: 22
    • Part No: 38533
    • Qty Req: 1
    Our price: $2.75 List price: $3.05
  • Special Packing Gasket
    • Ref No: 23
    • Part No: 38541
    • Qty Req: 1
    Our price: $3.63 List price: $3.99
  • 3/4" Garden Hose Coupling
    • Ref No: 24
    • Part No: 38540
    • Qty Req: 1
    Our price: $29.93 List price: $31.50
  • Garden Hose Washer
    • Ref No: 25
    • Part No: 38543
    • Qty Req: 1
    Our price: $5.13 List price: $5.40
