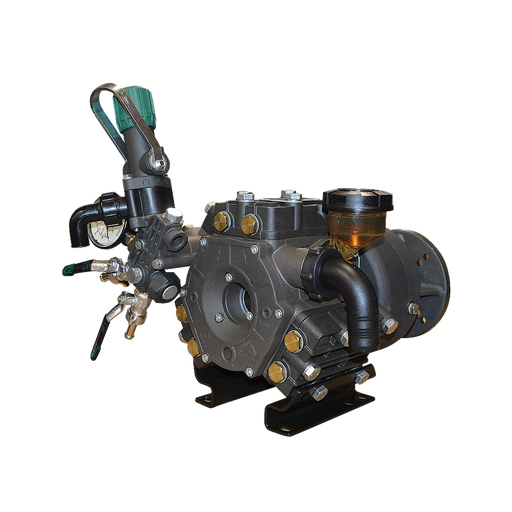

Udor KAPPA-55/GR-8 Diaphragm Pump
Udor KAPPA-55/GR-8 Diaphragm Pump
Brand:
Udor
Weight:
43.0 lb
Item #
KAPPA55GR8
Udor KAPPA-55/GR-8 Diaphragm Pump
Udor KAPPA-55/GR-8 Diaphragm Pump
Brand:
Udor
Weight:
43.0 lb
Item #
KAPPA55GR8
Regular price
$1,479.23
Sale price
$1,479.23
Regular price
List Price:
$2,689.50
Unit price
per
Couldn't load pickup availability

Earn 4,438 points with this purchase.
Collapsible content
Product Overview
This Udor KAPPA-55/GR-8 Diaphragm Pump is an excellent choice for a variety of spraying applications. Sturdily constructed out of anodized aluminum, this pump is great for agricultural and industrial uses. Meant for use with 8 to 11 horsepower gasoline engines that have 1-inch shafts; includes gear reduction. Order your diaphragm pump today.
Manufacturer description
KAPPA-55 3-cylinder, medium pressure diaphragm pump with control unit and gearbox with 1" hollow shaft for mounting on 8 to 11 hp engines. These pumps are excellent choices for various horticulture, agricultural, lawn care, nursery, pest control and turf spraying applications. They are also effectively used in other applications such as aircraft de-icing, hydrostatic testing and cleaning. KAPPA-55 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models.
Features:
Can Be Run Dry.
Visual Oil Sight Gauges.
Self-Priming Operation.
Stainless Steel Check Valves.
Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance.
Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids.
Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications.
Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F.
Largest Selection of Flows, Pressures and Drive Options Available.
Over 50 Years Of Diaphragm Pump Experience.
One Piece Stainless Steel Diaphragm Bolts.
Heavy Duty Pre-Formed Urethane (more...)
Resources
Features
- Max flow: 15 gpm
- Max pressure: 560 psi
- Includes 6010.24 control unit and 5033.A4 gearbox with 1" hollow shaft for mounting on 8 to 11 hp engines
- Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
- Pump shaft rotation: CW and CCW
- Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
- Housing: Anodized aluminum
- Max fluid temperature: 140°F
- Weight: 49 lbs
Parts breakdown
Diagram
-
