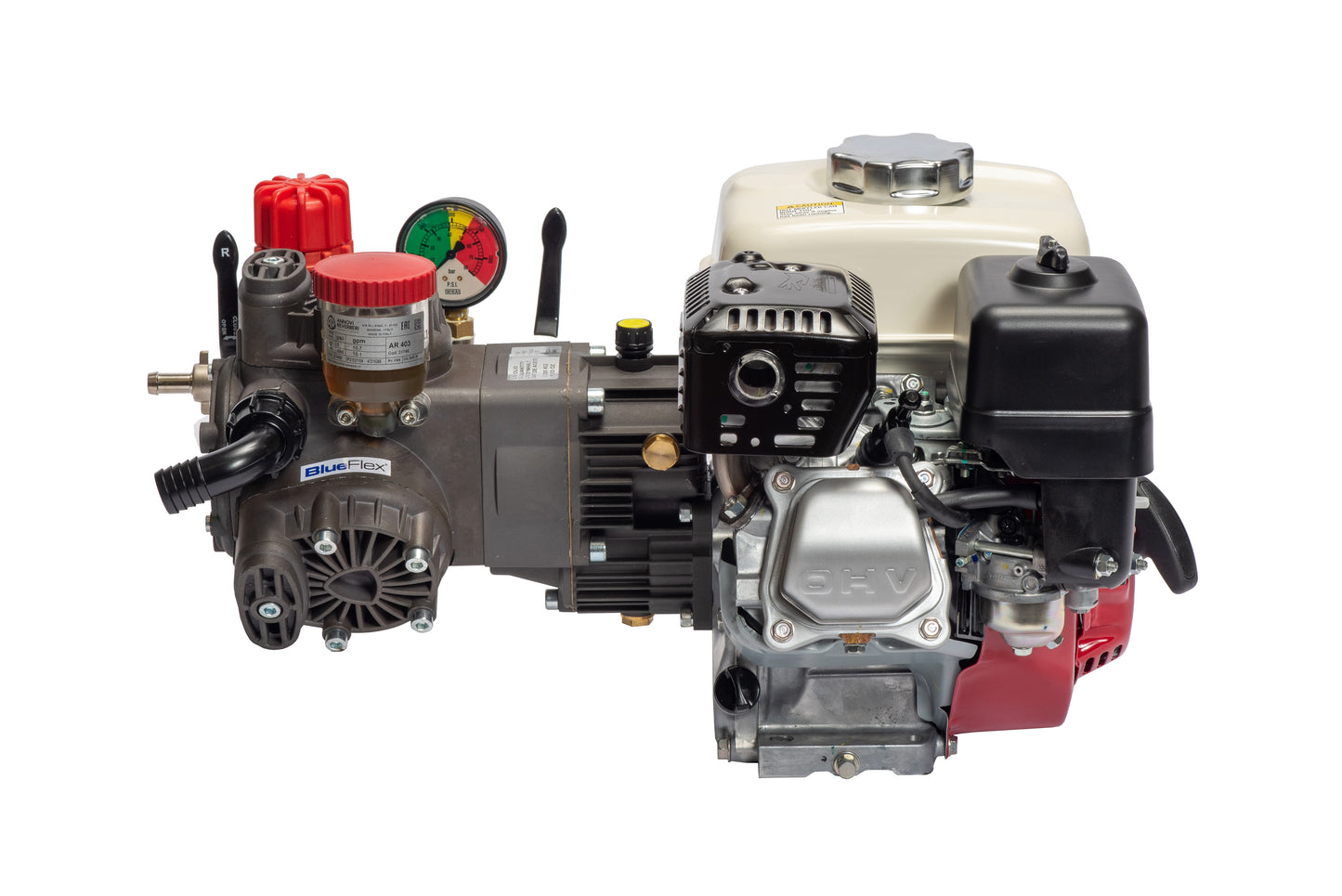

Hypro D403GRGI & Honda GX160 Engine Assembly

Hypro D403GRGI & Honda GX160 Engine Assembly

Brand:
Hypro
Weight:
76.0 lb
Item #
GXD403
4 reviews

Regular price $1,349.00
Sale price $1,349.00 Regular price List Price: $1,349.00

Earn 4,047 points with this purchase.

View full details

Collapsible content

Product Overview

Maximize the efficiency in your sprayer systems. This Hypro D403GRGI & Honda GX160 Engine Assembly contains durable, powerful components, and with a maximum pressure capacity of 580 PSI it is fabricated to handle medium-pressure spraying of many agricultural substances. With a 5.5. HP Honda commercial-grade engine, it's a champion at deploying liquid fertilizer, herbicide, pesticide and other agricultural solutions that require special care.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

Manufacturer description

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Hypro medium pressure diaphragm pumps can be adapted for male 1-3/8" splined shaft, female 1-3/8" splined shaft, 1" solid shaft, or gear reduction drive options. Pumps include a pulsation dampener except for Models 9910-D303, D403, and D503s. Honda's GX series engines are legendary for superior reliability and performance. And there's no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions without sacrificing power output or performance.

Features

9910-D403GRGI:
  • Max flow: 10.6 gpm
  • Max pressure: 580 psi
  • Includes 9910-GR40 pressure regulator and 9910-KIT1640 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines
  • Port sizes: 1" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F Honda GX160 Engine:
  • Engine type: Air-cooled 4-stroke OHV
  • Starting sytem: Recoil starter
  • Shaft: 3/4" solid keyed
  • Bore x stroke: 68 x 45 mm
  • Displacement: 163 cm3
  • Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
  • Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
  • PTO shaft rotation: Counterclockwise from PTO shaft side
  • Compression ratio: 9.0 : 1
  • Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
  • Carburetor: Butterfly
  • Ignition system: Transistorized magneto
  • Lubrication system: Splash
  • Governor system: Centrifugal mechanical
  • Air cleaner: Dual element
  • Oil capacity: 0.61 US qt. (0.58 L)
  • Fuel tank capacity: 3.3 US qts (3.1 liters)
  • Fuel: Unleaded 86 octane or higher
  • Dry weight 33 lbs (15.1 kg)
  • Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
  • Warranty: 3 year commercial warranty (limited to manufacturer defects)

Parts breakdown

Diagram

Diagram parts

Parts list

  • Retaining Bolt
    • Ref No: 1
    • Part No: 9910800090
    • Qty Req: 3
    Our price: $8.25
  • Plate
    • Ref No: 2
    • Part No: 9910800350
    • Qty Req: 3
    Our price: $8.88
  • Diaphragm Desmopan (Std.)
    • Ref No: 3
    • Part No: 9910800085
    • Qty Req: 3
    Our price: $24.76
  • Diaphragm Buna (Opt.)
    • Ref No: 3
    • Part No: 9910800080
    • Qty Req: 3
    Our price: $20.42
  • Sleeve (D403)
    • Ref No: 4
    • Part No: 99101880050
    • Qty Req: 3
    Our price: $48.07
  • Piston Ring
    • Ref No: 5
    • Part No: 99101880110
    • Qty Req: 3
    Our price: $10.70
  • Piston
    • Ref No: 6
    • Part No: 99101880060
    • Qty Req: 3
    Our price: $43.54
  • Piston Pin
    • Ref No: 7
    • Part No: 99101880120
    • Qty Req: 3
    Our price: $10.68
  • Ring Pin
    • Ref No: 8
    • Part No: 9910380080
    • Qty Req: 6
    Our price: $2.73
  • Connecting Rod
    • Ref No: 9
    • Part No: 99101880070
    • Qty Req: 3
    Our price: $56.98
  • Shaft (D403)
    • Ref No: 10
    • Part No: 99101880100
    • Qty Req: 1
    Our price: $261.67
  • Shield, 199 mm
    • Ref No: 11
    • Part No: 99101500350
    • Qty Req: 1
    Our price: $52.50
  • Washer
    • Ref No: 12
    • Part No: 9910900270
    • Qty Req: 4
    Our price: $1.56
  • M10 X 16 Bolt
    • Ref No: 13
    • Part No: 9910820670
    • Qty Req: 4
    Our price: $2.48
  • Retainer Ring
    • Ref No: 14
    • Part No: 9910620330
    • Qty Req: 1
    Our price: $12.16
  • Seal Ring
    • Ref No: 15
    • Part No: 9910620130
    • Qty Req: 1
    Our price: $24.41
  • Roller bearing
    • Ref No: 16
    • Part No: 9910550060
    • Qty Req: 1
    Our price: $64.27
  • Connecting Rod Ring
    • Ref No: 18
    • Part No: 99101880180
    • Qty Req: 2
    Our price: $19.72
  • Spacer
    • Ref No: 19
    • Part No: 99101880170
    • Qty Req: 1
    Our price: $5.35
  • Retaining Ring
    • Ref No: 20
    • Part No: 9910111120
    • Qty Req: 1
    Our price: $7.32
  • Bearing
    • Ref No: 21
    • Part No: 99101461430
    • Qty Req: 1
    Our price: $38.26
  • Retaining Ring
    • Ref No: 22
    • Part No: 9910620291
    • Qty Req: 1
    Our price: $7.13
  • Bolt
    • Ref No: 25
    • Part No: 9910780060
    • Qty Req: 3
    Our price: $1.72
  • Seal
    • Ref No: 26
    • Part No: 99101880380
    • Qty Req: 1
    Our price: $14.79
  • Suction Manifold
    • Ref No: 27
    • Part No: 99101880020
    • Qty Req: 1
    Our price: $40.80
  • O-Ring
    • Ref No: 28
    • Part No: 9910390290
    • Qty Req: 1
    Our price: $2.10
  • Threaded Adapter
    • Ref No: 29
    • Part No: 9910550340
    • Qty Req: 1
    Our price: $8.74
  • O-Ring
    • Ref No: 30
    • Part No: 9910550350
    • Qty Req: 2
    Our price: $1.79
  • Ring Nut
    • Ref No: 31
    • Part No: 9910550242
    • Qty Req: 1
    Our price: $9.23
  • Hose Barb 1"
    • Ref No: 32
    • Part No: 9910550370
    • Qty Req: 1
    Our price: $13.20
  • O-Ring
    • Ref No: 33
    • Part No: 9910390201
    • Qty Req: 1
    Our price: $5.15
  • O-Ring
    • Ref No: 34
    • Part No: 99101880130
    • Qty Req: 1
    Our price: $1.88
  • O-Ring
    • Ref No: 35
    • Part No: 9910390180
    • Qty Req: 1
    Our price: $1.51
  • Washer
    • Ref No: 36
    • Part No: 9910550331
    • Qty Req: 2
    Our price: $1.51
  • M6 X 30 Bolt
    • Ref No: 37
    • Part No: 99101200440
    • Qty Req: 2
    Our price: $2.10
  • Oil sight glass for Hypro D403, D115 and D135
    • Ref No: 38
    • Part No: 99101040310
    • Qty Req: 1
    Our price: $83.85
  • O-Ring
    • Ref No: 39
    • Part No: 9910650920
    • Qty Req: 1
    Our price: $2.92
  • Black oil tank cap for Hypro/AR Diaphragm Pumps
    • Ref No: 40
    • Part No: 99101040322
    • Qty Req: 1
    Our price: $32.14
  • Bolt
    • Ref No: 41
    • Part No: 9910540290
    • Qty Req: 2
    Our price: $2.98
  • Discharge Flange Housing
    • Ref No: 42
    • Part No: 9910450145
    • Qty Req: 1
    Our price: $36.51
  • 1/2" Hose Barb & Nut
    • Ref No: 44
    • Part No: 9910110130
    • Qty Req: 1
    Our price: $15.09
  • M8 X 55 Bolt
    • Ref No: 48
    • Part No: 9910800860
    • Qty Req: 12
    Our price: $2.92
  • Head
    • Ref No: 49
    • Part No: 99101880030
    • Qty Req: 3
    Our price: $63.14
  • Complete Valve Assembly
    • Ref No: 50
    • Part No: 99101889051
    • Qty Req: 6
    Our price: $24.28
  • O-Ring
    • Ref No: 51
    • Part No: 99101140450
    • Qty Req: 6
    Our price: $0.62
  • Pump Body
    • Ref No: 52
    • Part No: 99101880010
    • Qty Req: 1
    Our price: $308.16
  • M8 X 60 Bolt
    • Ref No: 54
    • Part No: 9910280080
    • Qty Req: 3
    Our price: $3.43
  • Right Valve Cover
    • Ref No: 55
    • Part No: 99101880040
    • Qty Req: 3
    Our price: $60.86
  • O-Ring
    • Ref No: 57
    • Part No: 9910740290
    • Qty Req: 2
    Our price: $1.92
  • Oil drain plug
    • Ref No: 58
    • Part No: 24060023
    • Qty Req: 2
    Our price: $11.32
  • Right Base
    • Ref No: 59
    • Part No: 99101880080
    • Qty Req: 1
    Our price: $29.40
  • Left Base
    • Ref No: 60
    • Part No: 99101880090
    • Qty Req: 1
    Our price: $29.40
  • Key (AP-A Model)
    • Ref No: 61
    • Part No: 9910620680
    • Qty Req: 1
    Our price: $3.27
