Hypro D403 Pump

Hypro D403 Pump

Brand:
Hypro
Weight:
23.25 lb
Item #
9910D403
10 reviews
Skip to product information
1 of 1

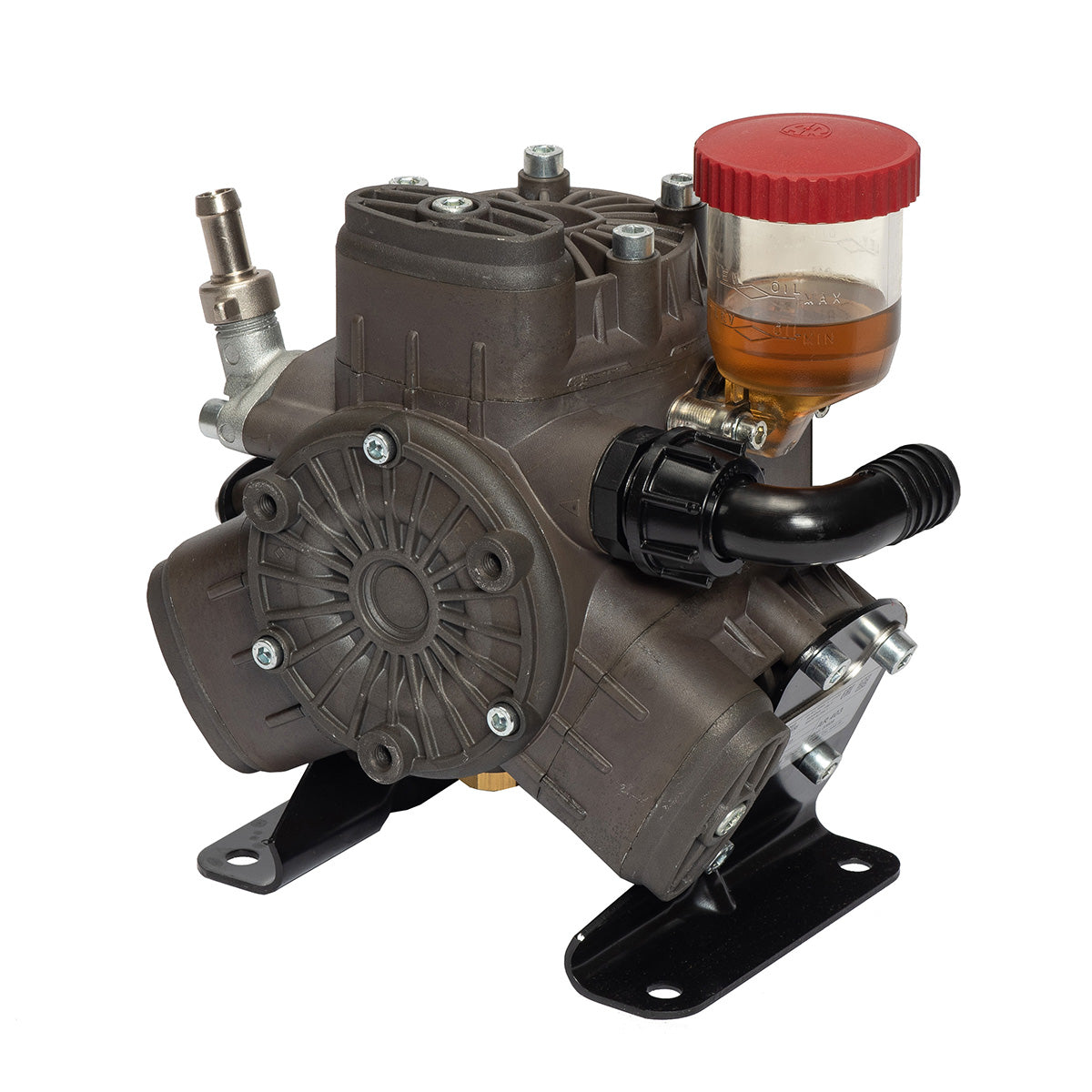

Hypro D403 Pump

Hypro D403 Pump

Brand:
Hypro
Weight:
23.25 lb
Item #
9910D403
10 reviews

Regular price $625.00
Sale price $625.00 Regular price List Price: $1,294.97

Earn 1,875 points with this purchase.

View full details

Collapsible content

Product Overview

For your medium pressure sprayer systems, install this Hypro D403 Pump. Precision tooled to help deliver consistent pressure and sprayer coverage, your new unit is designed for systems used in agricultural applications. This pump handles a maximum pressure of 580 PSI and is designed to work in assemblies deploying herbicides, pesticides and liquid fertilizers, as well as other fluids requiring special care and handling.

Hypro/Pentair is no longer

Manufacturer description

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Hypro medium pressure diaphragm pumps can be adapted for male 1-3/8" splined shaft, female 1-3/8" splined shaft, 1" solid shaft, or gear reduction drive options. Pumps include a pulsation dampener except for Models 9910-D303, D403, and D503s.

Features

  • Max flow: 10.7 gpm
  • Max pressure: 580 psi
  • Max rpm: 550
  • Port sizes: 1" HB inlet, 1/2" HB outlet
  • Shaft: Flanged for shaft kit or gearbox
  • Pump shaft rotation: CW and CCW

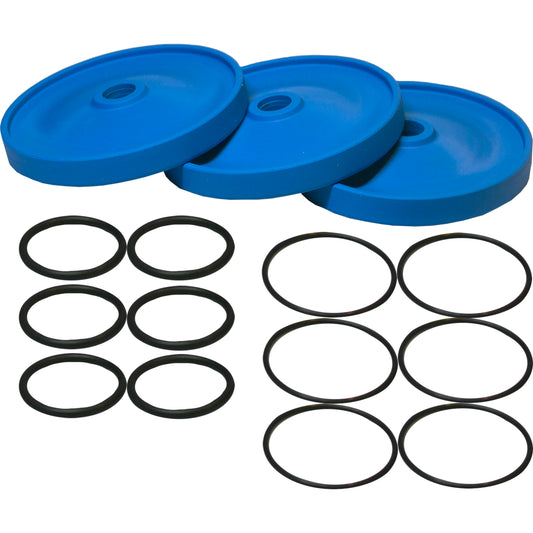

  • Diaphragms: 3, semi-hydraulic BlueFlex, Desmopan® and Buna available
  • Housing: Anodized aluminum

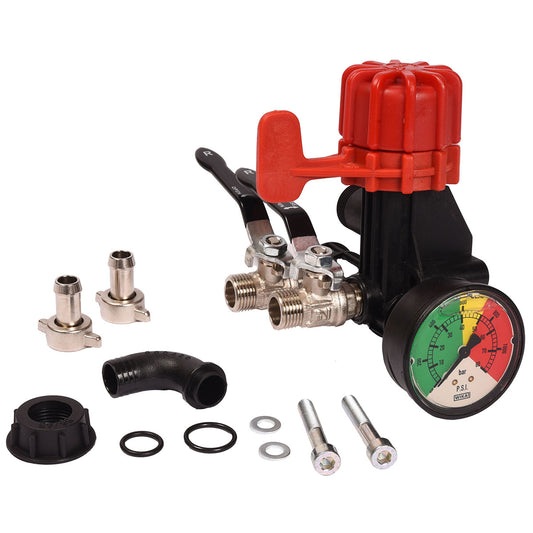

  • Recommended pressure regulator: 9910-GR40

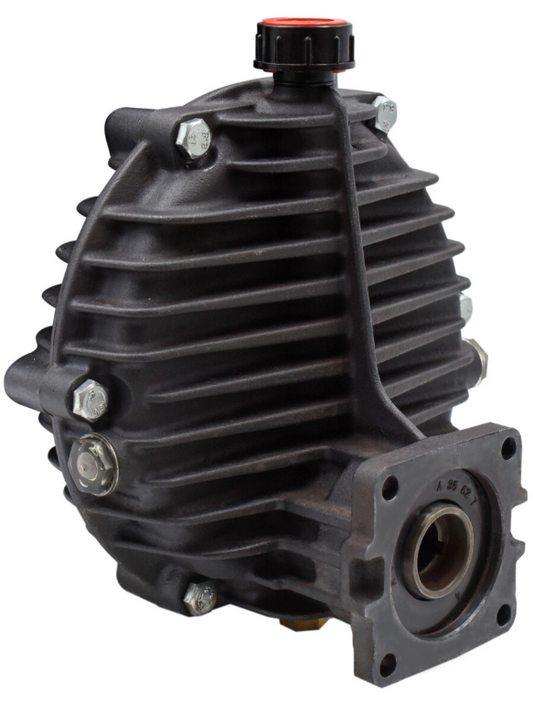

  • Recommended gearbox: 9910-KIT1640 (AR1636) with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
  • Max fluid temperature: 140°F
  • Weight: 24 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Retaining Bolt
    • Ref No: 1
    • Part No: 9910800090
    • Qty Req: 3
    Our price: $8.25 List price: $10.19
  • Plate
    • Ref No: 2
    • Part No: 9910800350
    • Qty Req: 3
    Our price: $8.88 List price: $10.96
  • Diaphragm Buna (Opt.)
    • Ref No: 3
    • Part No: 9910800080
    • Qty Req: 3
    Our price: $20.42 List price: $25.21
  • Diaphragm Desmopan (Std.)
    • Ref No: 3
    • Part No: 9910800085
    • Qty Req: 3
    Our price: $24.76 List price: $30.57
  • Sleeve (D403)
    • Ref No: 4
    • Part No: 99101880050
    • Qty Req: 3
    Our price: $48.07 List price: $59.34
  • Piston Ring
    • Ref No: 5
    • Part No: 99101880110
    • Qty Req: 3
    Our price: $10.70 List price: $13.21
  • Piston
    • Ref No: 6
    • Part No: 99101880060
    • Qty Req: 3
    Our price: $43.54 List price: $53.75
  • Piston Pin
    • Ref No: 7
    • Part No: 99101880120
    • Qty Req: 3
    Our price: $10.68 List price: $13.18
  • Ring Pin
    • Ref No: 8
    • Part No: 9910380080
    • Qty Req: 6
    Our price: $2.73 List price: $3.37
  • Connecting Rod
    • Ref No: 9
    • Part No: 99101880070
    • Qty Req: 3
    Our price: $56.98 List price: $70.35
  • Shaft (D403)
    • Ref No: 10
    • Part No: 99101880100
    • Qty Req: 1
    Our price: $261.67 List price: $323.05
  • Shield, 199 mm
    • Ref No: 11
    • Part No: 99101500350
    • Qty Req: 1
    Our price: $52.50 List price: $64.82
  • Washer
    • Ref No: 12
    • Part No: 9910900270
    • Qty Req: 4
    Our price: $1.56 List price: $1.92
  • M10 X 16 Bolt
    • Ref No: 13
    • Part No: 9910820670
    • Qty Req: 4
    Our price: $2.48 List price: $3.06
  • Retainer Ring
    • Ref No: 14
    • Part No: 9910620330
    • Qty Req: 1
    Our price: $12.16 List price: $15.01
  • Seal Ring
    • Ref No: 15
    • Part No: 9910620130
    • Qty Req: 1
    Our price: $24.41 List price: $30.14
  • Roller bearing
    • Ref No: 16
    • Part No: 9910550060
    • Qty Req: 1
    Our price: $64.27 List price: $79.34
  • Seal Ring
    • Ref No: 17
    • Part No: 99101880190
    • Qty Req: 1
    Our price: $7.29 List price: $9.00
  • Connecting Rod Ring
    • Ref No: 18
    • Part No: 99101880180
    • Qty Req: 2
    Our price: $19.72 List price: $24.35
  • Spacer
    • Ref No: 19
    • Part No: 99101880170
    • Qty Req: 1
    Our price: $5.35 List price: $6.60
  • Retaining Ring
    • Ref No: 20
    • Part No: 9910111120
    • Qty Req: 1
    Our price: $7.32 List price: $9.04
  • Bearing
    • Ref No: 21
    • Part No: 99101461430
    • Qty Req: 1
    Our price: $38.26 List price: $47.24
  • Retaining Ring
    • Ref No: 22
    • Part No: 9910620291
    • Qty Req: 1
    Our price: $7.13 List price: $8.80
  • Bolt
    • Ref No: 25
    • Part No: 9910780060
    • Qty Req: 3
    Our price: $1.72 List price: $2.12
  • Seal
    • Ref No: 26
    • Part No: 99101880380
    • Qty Req: 1
    Our price: $14.79 List price: $18.26
  • Suction Manifold
    • Ref No: 27
    • Part No: 99101880020
    • Qty Req: 1
    Our price: $40.80 List price: $50.37
  • O-Ring
    • Ref No: 28
    • Part No: 9910390290
    • Qty Req: 1
    Our price: $2.10 List price: $2.59
  • Threaded Adapter
    • Ref No: 29
    • Part No: 9910550340
    • Qty Req: 1
    Our price: $8.74 List price: $10.79
  • O-Ring
    • Ref No: 30
    • Part No: 9910550350
    • Qty Req: 2
    Our price: $1.79 List price: $2.21
  • Ring Nut
    • Ref No: 31
    • Part No: 9910550242
    • Qty Req: 1
    Our price: $9.23 List price: $11.39
  • Hose Barb 1"
    • Ref No: 32
    • Part No: 9910550370
    • Qty Req: 1
    Our price: $13.20 List price: $16.30
  • O-Ring
    • Ref No: 33
    • Part No: 9910390201
    • Qty Req: 1
    Our price: $5.15 List price: $6.36
  • O-Ring
    • Ref No: 34
    • Part No: 99101880130
    • Qty Req: 1
    Our price: $1.88 List price: $2.32
  • O-Ring
    • Ref No: 35
    • Part No: 9910390180
    • Qty Req: 1
    Our price: $1.51 List price: $1.86
  • Washer
    • Ref No: 36
    • Part No: 9910550331
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • M6 X 30 Bolt
    • Ref No: 37
    • Part No: 99101200440
    • Qty Req: 2
    Our price: $2.10 List price: $2.59
  • Oil sight glass for Hypro D403, D115 and D135
    • Ref No: 38
    • Part No: 99101040310
    • Qty Req: 1
    Our price: $83.85 List price: $103.52
  • O-Ring
    • Ref No: 39
    • Part No: 9910650920
    • Qty Req: 1
    Our price: $2.92 List price: $3.60
  • Black oil tank cap for Hypro/AR Diaphragm Pumps
    • Ref No: 40
    • Part No: 99101040322
    • Qty Req: 1
    Our price: $32.14 List price: $39.68
  • Bolt
    • Ref No: 41
    • Part No: 9910540290
    • Qty Req: 2
    Our price: $2.98 List price: $3.68
  • Discharge Flange Housing
    • Ref No: 42
    • Part No: 9910450145
    • Qty Req: 1
    Our price: $36.51 List price: $45.07
  • 1/2" Hose Barb & Nut
    • Ref No: 44
    • Part No: 9910110130
    • Qty Req: 1
    Our price: $15.09 List price: $18.63
  • M8 X 55 Bolt
    • Ref No: 48
    • Part No: 9910800860
    • Qty Req: 12
    Our price: $2.92 List price: $3.60
  • Head
    • Ref No: 49
    • Part No: 99101880030
    • Qty Req: 3
    Our price: $63.14 List price: $77.95

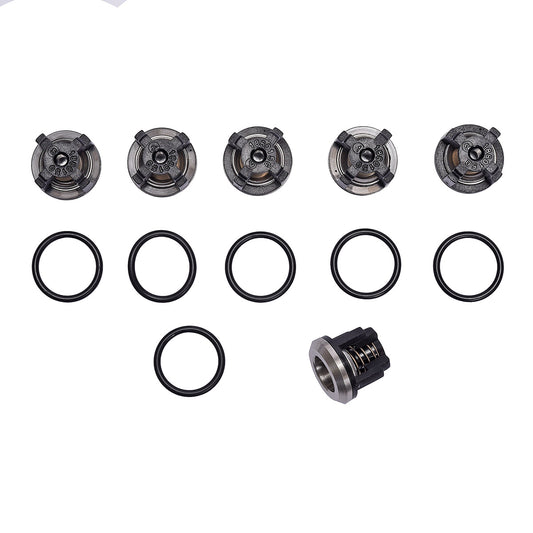

  • Complete Valve Assembly
    • Ref No: 50
    • Part No: 99101889051
    • Qty Req: 6
    Our price: $24.28 List price: $29.97
  • O-Ring
    • Ref No: 51
    • Part No: 99101140450
    • Qty Req: 6
    Our price: $0.62 List price: $0.77
  • Pump Body
    • Ref No: 52
    • Part No: 99101880010
    • Qty Req: 1
    Our price: $308.16 List price: $380.45
  • O-Ring
    • Ref No: 53
    • Part No: 99101260420
    • Qty Req: 6
    Our price: $1.04 List price: $1.28
  • M8 X 60 Bolt
    • Ref No: 54
    • Part No: 9910280080
    • Qty Req: 3
    Our price: $3.43 List price: $4.23
  • Right Valve Cover
    • Ref No: 55
    • Part No: 99101880040
    • Qty Req: 3
    Our price: $60.86 List price: $75.13
  • O-Ring
    • Ref No: 57
    • Part No: 9910740290
    • Qty Req: 2
    Our price: $1.92 List price: $2.37
  • Oil drain plug
    • Ref No: 58
    • Part No: 24060023
    • Qty Req: 2
    Our price: $11.32 List price: $13.97
  • Right Base
    • Ref No: 59
    • Part No: 99101880080
    • Qty Req: 1
    Our price: $29.40 List price: $36.30
  • Left Base
    • Ref No: 60
    • Part No: 99101880090
    • Qty Req: 1
    Our price: $29.40 List price: $36.30
  • O-Ring
    • Ref No: 62
    • Part No: 9910780050
    • Qty Req: 6
    Our price: $1.76 List price: $2.17
