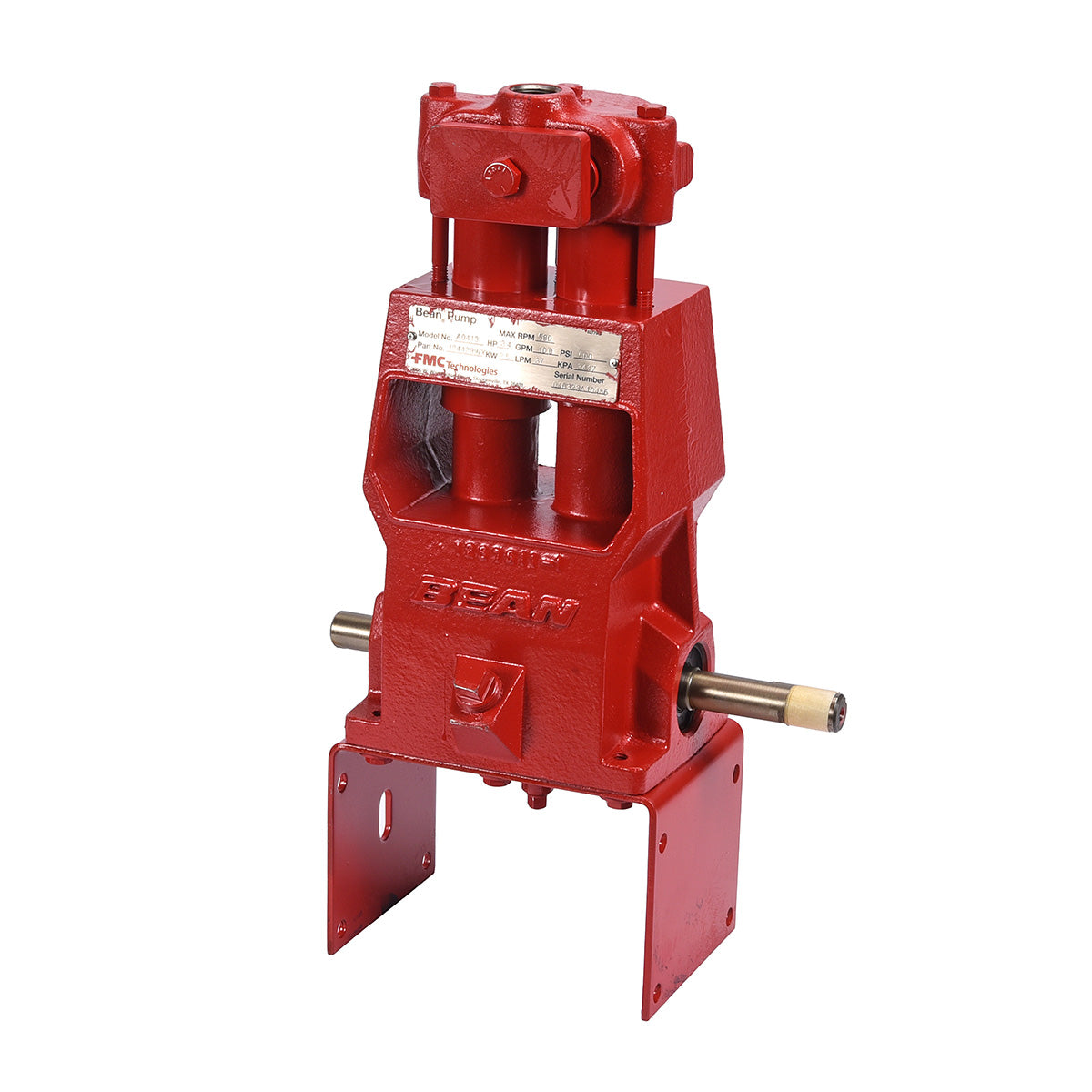

FMC John Bean R10 Piston Pump 1244299

FMC John Bean R10 Piston Pump 1244299

Brand:
FMC/John Bean
Weight:
50.0 lb
Item #
1244299

Regular price $1,895.00
Sale price $1,895.00 Regular price List Price: $2,200.00

Earn 5,685 points with this purchase.

View full details

Collapsible content

Product Overview

When you want a long-lasting pump, you need to get high-quality products. The FMC John Bean R10 Piston Pump 1244299 was designed to keep dirt out and oil in, which helps ensure that every party is able to do its job. This particular product can be rebuilt time and time again without having to completely replace the pump. Because of its light weight, there are a number of ways you may be able to mount this product.

Manufacturer description

Rugged piston pumps have cast iron cases, with hardened crankshafts and ball-type main bearings which are seated in oil for long life, non-wear ceramic cylinders and spring loaded disc-type stainless valves. Melonized forged crankshaft for increased fatigue, strength & durability and mounted on heavy-duty ball bearings.

Features

  • Max flow: 10 gpm
  • Max pressure: 500 psi
  • Max rpm: 580
  • Port sizes: 1" FNPT inlet, 3/4" FNPT outlet
  • Shaft: 7/8" solid keyed
  • Pistons: 2
  • Cylinder: Ceramic, 1-5/8" ID
  • Housing: Cast iron

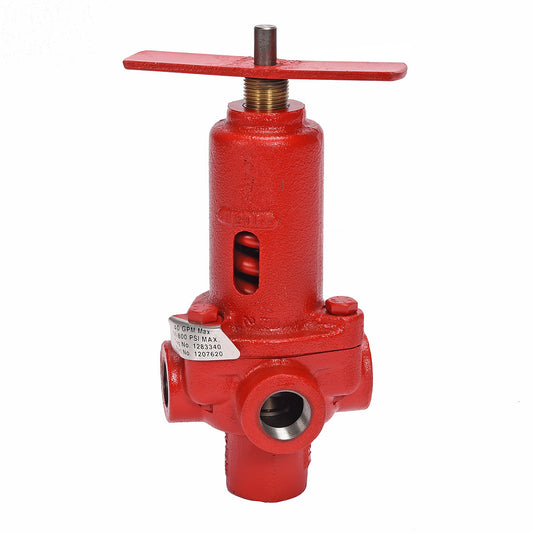

  • Recommended pressure regulator: 1207620
  • Recommended gas engine: 8 to 9 hp
  • Weight: 43 pounds

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Case
    • Ref No: 1
    • Part No: 1267611
    • Qty Req: 1
    Our price: $487.40 List price: $513.05
  • Crankshaft (Long Base Pumps)
    • Ref No: 2
    • Part No: 1244980
    • Qty Req: 1
    Our price: $380.95 List price: $401.00
  • Crankshaft (Short Base)
    • Ref No: 2
    • Part No: 1275026
    • Qty Req: 1
    Our price: $440.72 List price: $440.72
  • Connecting Rod
    • Ref No: 3
    • Part No: 1263906
    • Qty Req: 2
    Our price: $151.68 List price: $159.66
  • HHCS _ - 20 x 1 lock
    • Ref No: 4
    • Part No: 1278439
    • Qty Req: 4
    Our price: $2.37 List price: $2.49
  • Bearing Insert
    • Ref No: 5
    • Part No: 1280908
    • Qty Req: 2
    Our price: $40.38 List price: $42.50
  • Oil Slinger
    • Ref No: 6
    • Part No: 1280807
    • Qty Req: 1
    Our price: $20.43 List price: $21.50
  • Speed Nut (Replaced by 1177576)
    • Ref No: 7
    • Part No: 1272419
    • Qty Req: 1
    Our price: $3.80 List price: $4.00
  • Crosshead
    • Ref No: 9
    • Part No: 1216823
    • Qty Req: 2
    Our price: $68.40 List price: $72.00
  • Wrist Pin
    • Ref No: 10
    • Part No: 1219650
    • Qty Req: 2
    Our price: $13.78 List price: $14.50
  • Ball Bearing
    • Ref No: 11
    • Part No: 1177804
    • Qty Req: 2
    Our price: $85.50 List price: $90.00
  • Oil Seal
    • Ref No: 12
    • Part No: 1219669
    • Qty Req: 2
    Our price: $21.87 List price: $24.30
  • Retainer Ring
    • Ref No: 13
    • Part No: 1113528
    • Qty Req: 2
    Our price: $5.26 List price: $5.54
  • Base Gasket R10
    • Ref No: 14
    • Part No: 1219606
    • Qty Req: 1
    Our price: $5.70 List price: $6.00
  • Mounting Base (Long Base)
    • Ref No: 15
    • Part No: 1255297
    • Qty Req: 1
    Our price: $104.63 List price: $110.14
  • Plug 1/4" Std. Galv.
    • Ref No: 16
    • Part No: 11465
    • Qty Req: 1
    Our price: $3.47 List price: $3.86
  • Cap Screw (John Bean R10, R5B, R20-20, 130VS, 125VS)
    • Ref No: 17
    • Part No: 00286
    • Qty Req: 6
    Our price: $1.66 List price: $1.75
  • Spring Washer 3/8
    • Ref No: 18
    • Part No: 1177455
    • Qty Req: 6
    Our price: $3.80 List price: $4.00
  • Round Head Slotted Screw #4
    • Ref No: 20
    • Part No: 1187413
    • Qty Req: 2
    Our price: $2.14 List price: $2.25
  • Plug 3/4 Blk. Std.
    • Ref No: 21
    • Part No: 11471
    • Qty Req: 1
    Our price: $3.80 List price: $4.00
  • Sleeve
    • Ref No: 22
    • Part No: 1218743
    • Qty Req: 2
    Our price: $3.09 List price: $3.25
  • Umbrella Washer
    • Ref No: 23
    • Part No: 1269388
    • Qty Req: 2
    Our price: $15.20 List price: $16.00
  • Umbrella
    • Ref No: 24
    • Part No: 1279148
    • Qty Req: 2
    Our price: $3.33 List price: $3.50
  • O-Ring
    • Ref No: 25
    • Part No: 1101339
    • Qty Req: 2
    Our price: $1.36 List price: $1.43
  • Packing Cup Holder
    • Ref No: 26
    • Part No: 1282557
    • Qty Req: 2
    Our price: $20.00 List price: $22.43
  • Packing (Std.)
    • Ref No: 27
    • Part No: 1251925
    • Qty Req: 2
    Our price: $27.79 List price: $46.80
  • Packing, Cobox (Turf Models Only)
    • Ref No: 27
    • Part No: 5257807
    • Qty Req: 2
    Our price: $33.73 List price: $35.50
  • Packing Washer
    • Ref No: 28
    • Part No: 5257218
    • Qty Req: 2
    Our price: $34.96 List price: $36.80
  • Packing Washer (Turf Models Only)
    • Ref No: 28
    • Part No: 5257986
    • Qty Req: 2
    Our price: $19.41 List price: $20.43
  • Cup Bolt
    • Ref No: 29
    • Part No: 1284516
    • Qty Req: 2
    Our price: $3.33 List price: $3.50
  • Cylinder Gasket
    • Ref No: 30
    • Part No: A91684
    • Qty Req: 4
    Our price: $4.28 List price: $4.50
  • Cylinder 1-5/8"
    • Ref No: 31
    • Part No: 1241364
    • Qty Req: 2
    Our price: $104.46 List price: $109.96

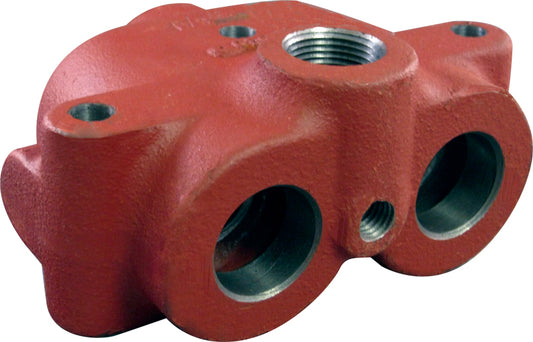

  • Valve Chamber (Bare)
    • Ref No: 32
    • Part No: 1241397
    • Qty Req: 1
    Our price: $223.25 List price: $235.00

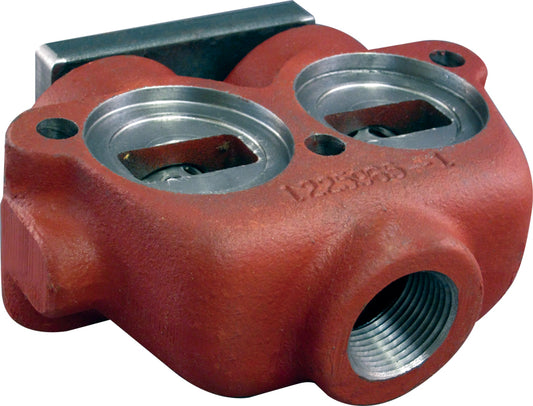

  • Valve Chamber Assembly (Loaded) R5/R10
    • Ref No: 32
    • Part No: 1241402
    • Qty Req: 1
    Our price: $359.10 List price: $378.00
  • Valve Chamber (Turf Pump 5257422)
    • Ref No: 32
    • Part No: 5257095
    • Qty Req: 1
    Our price: $445.55 List price: $469.00
  • Valve Seat
    • Ref No: 34
    • Part No: 1219615
    • Qty Req: 4
    Our price: $15.87 List price: $16.70
  • Valve Seat (Turf Models Only)
    • Ref No: 34
    • Part No: 5260142
    • Qty Req: 4
    Our price: $41.33 List price: $43.50
  • O-Ring
    • Ref No: 35
    • Part No: 1177394
    • Qty Req: 6
    Our price: $1.90 List price: $2.00
  • Valve Spring & Disc Assembly
    • Ref No: 36
    • Part No: 5253499
    • Qty Req: 4
    Our price: $11.38 List price: $11.98
  • Valve Cage
    • Ref No: 37
    • Part No: 1219610
    • Qty Req: 4
    Our price: $11.48 List price: $12.08
  • Valve Cover
    • Ref No: 38
    • Part No: 1219614
    • Qty Req: 2
    Our price: $12.11 List price: $12.75
  • Valve Cover Clamp
    • Ref No: 39
    • Part No: 1255887
    • Qty Req: 1
    Our price: $28.50 List price: $30.00
  • Cap Screw (John Bean R5B, R10, R20-20)
    • Ref No: 40
    • Part No: 00513
    • Qty Req: 1
    Our price: $2.37 List price: $2.49
