1-1/4" 50 Mesh Nylon Line Strainer (Buna Gasket, Clear Bowl)
1-1/4" 50 Mesh Nylon Line Strainer (Buna Gasket, Clear Bowl)
Brand:
Hypro
Weight:
1.11 lb
Item #
33500072P
2
1-1/4" 50 Mesh Nylon Line Strainer (Buna Gasket, Clear Bowl)
1-1/4" 50 Mesh Nylon Line Strainer (Buna Gasket, Clear Bowl)
Brand:
Hypro
Weight:
1.11 lb
Item #
33500072P
2
Regular price
$72.51
Sale price
$72.51
Regular price
List Price:
$89.52
Unit price
per
Free Shipping on Qualified Orders Over $100
In stock orders placed withinship out same day. Learn more
Couldn't load pickup availability
Earn 218 points with this purchase.
Collapsible content
Product Overview

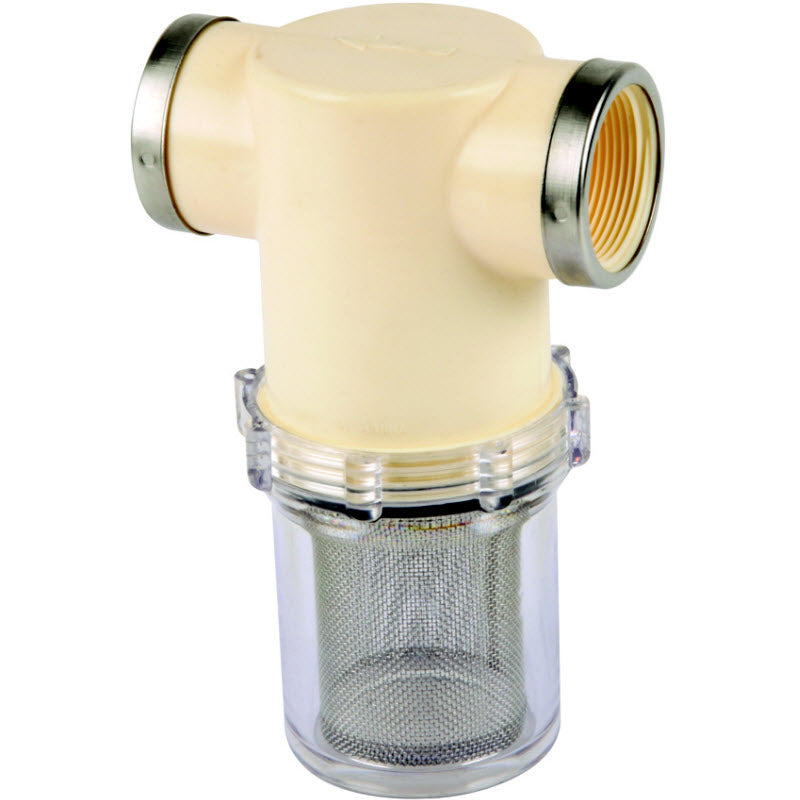

3350-0072P Hypro 1-1/4" (F) Nylon Line Strainer.
Clear bowl, 50 mesh screen, Buna-N gasket.
Nylon line strainers are ideal for suction or pressure applications. They are rated for higher pressure applications, up to 150 PSI at 70 degrees Fahrenheit (10 bar at 20 degrees Celsius) and 100 PSI at 125 degrees Fahrenheit (7 bar at 50 degrees Celsius). The maximum temperature rating is 140 degrees Fahrenheit (60 degrees Celsius).
The Nylon line strainers have white bodies that are made out of type 6 nylon. The bowl is available in white type 6 nylon or clear polyamide, which allows for visual inspection without disassembly. Choose from 20, 50, or 80-mesh stainless steel screens and Buna-N or Viton gaskets.
The 1/2", 3/4", 1", 1-1/4", and 1-1/2" models have internal (NPT) female ports and are available with white type 6 nylon or clear polyamide bowls. Add suffix "P" to part number (ex. 3350-0057P).
Clear bowl, 50 mesh screen, Buna-N gasket.
Nylon line strainers are ideal for suction or pressure applications. They are rated for higher pressure applications, up to 150 PSI at 70 degrees Fahrenheit (10 bar at 20 degrees Celsius) and 100 PSI at 125 degrees Fahrenheit (7 bar at 50 degrees Celsius). The maximum temperature rating is 140 degrees Fahrenheit (60 degrees Celsius).
The Nylon line strainers have white bodies that are made out of type 6 nylon. The bowl is available in white type 6 nylon or clear polyamide, which allows for visual inspection without disassembly. Choose from 20, 50, or 80-mesh stainless steel screens and Buna-N or Viton gaskets.
The 1/2", 3/4", 1", 1-1/4", and 1-1/2" models have internal (NPT) female ports and are available with white type 6 nylon or clear polyamide bowls. Add suffix "P" to part number (ex. 3350-0057P).
Resources
Parts breakdown
Diagram
-

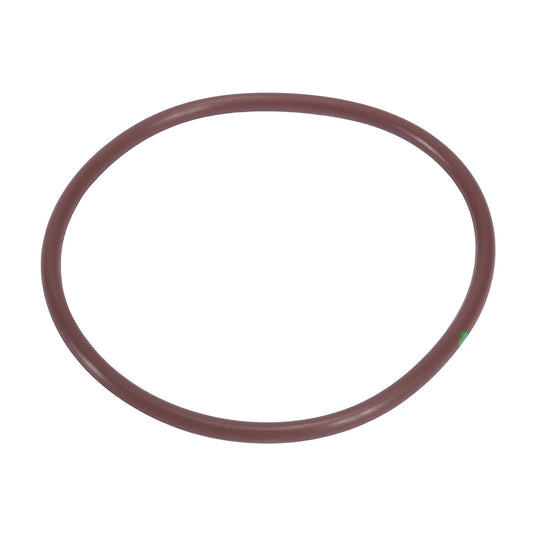

Item # 17000058
Viton Gasket Hypro 1" to 1-1/2" Strainer
1Regular price $5.22Sale price $5.22 Regular price List Price:Unit price per$6.44 -

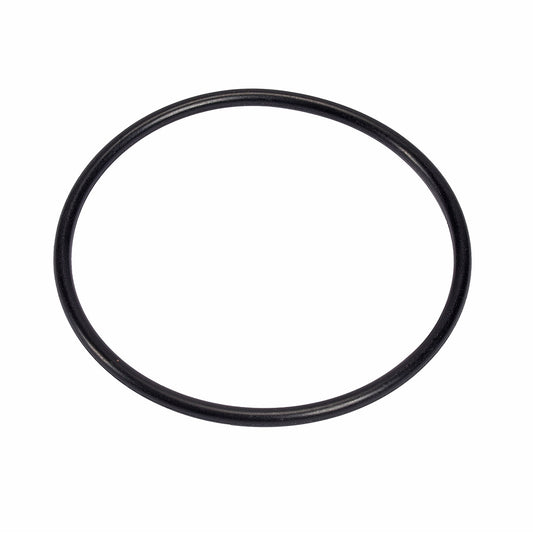

Item # 17000057
Buna Gasket Hypro 1" to 1-1/2" Strainers
1Regular price $1.73Sale price $1.73 Regular price List Price:Unit price per$2.14 -

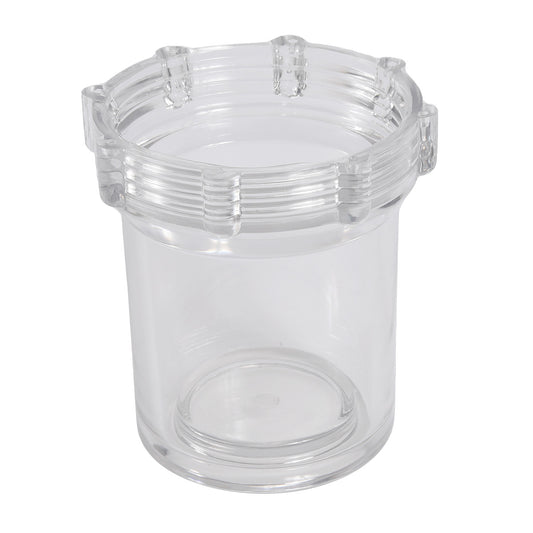

Item # 33510024
Clear Bowl Hypro 1" to 1-1/2" Strainers
1Regular price $46.36Sale price $46.36 Regular price List Price:Unit price per$57.23 -

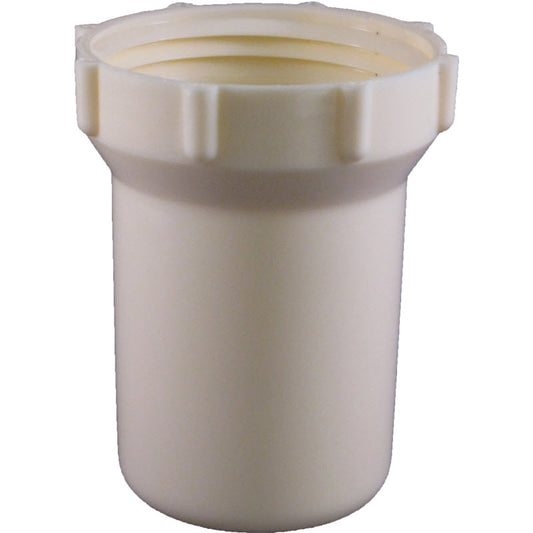

Item # 33510013
White Bowl Hypro 1" to 1-1/2" Strainers
1Regular price $18.61Sale price $18.61 Regular price List Price:Unit price per$22.98 -
Item # 38000043
20 Mesh Screen Hypro 1-1/4" Strainers
-
Item # 38000044
50 Mesh Screen Hypro 1-1/4" Strainers
-

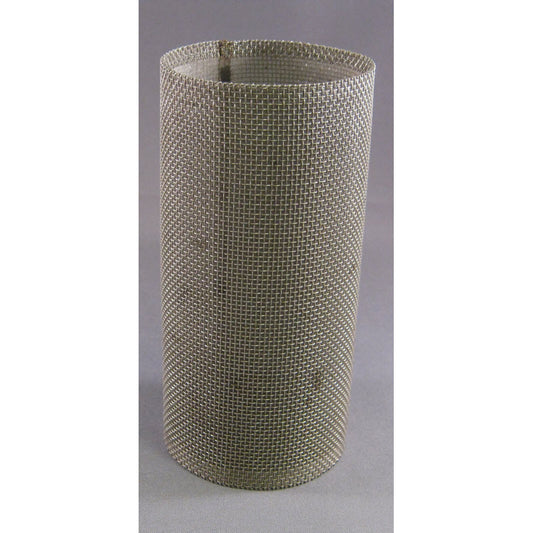

Item # 38000045
80 Mesh Screen Hypro 1-1/4" Strainers
-
Item # 33510016
Cap for Hypro 1-1/4" Nylon Line Strainer
