1-3/8" Female PTO Shaft Kit (D70/D115)

1-3/8" Female PTO Shaft Kit (D70/D115)

Brand:
Hypro
Weight:
3.0 lb
Item #
9910KIT1708
1 1

1-3/8" Female PTO Shaft Kit (D70/D115)

1-3/8" Female PTO Shaft Kit (D70/D115)

Brand:
Hypro
Weight:
3.0 lb
Item #
9910KIT1708

$222.36
$222.36 List Price: $296.48

Earn 667 points with this purchase.

See Details

View full details

Product Overview

1-3/8" 6 Spline Female PTO Shaft Kit.

2 pin Connection

For Hypro Models D70 & D115 Diaphragm Pumps.

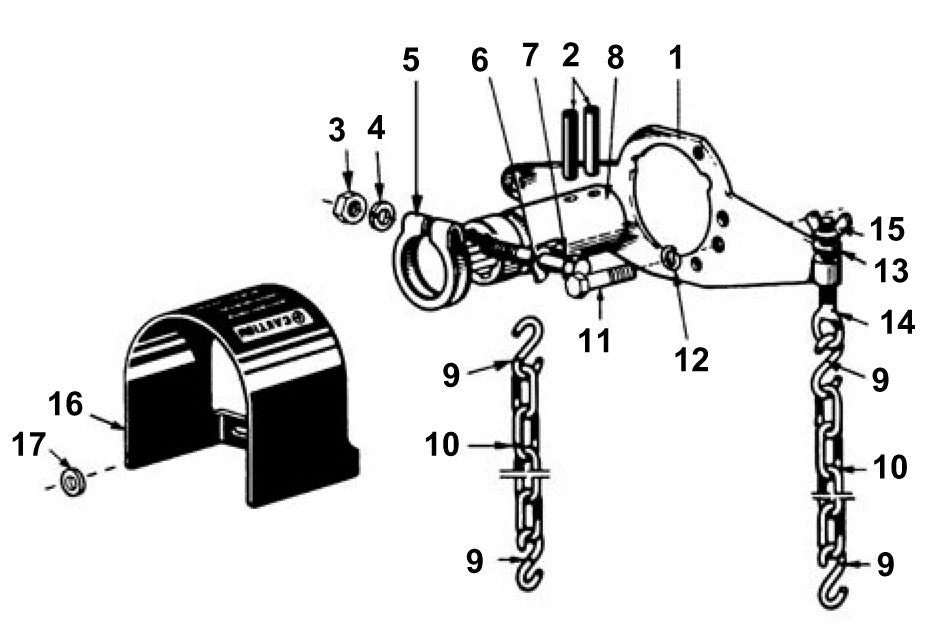

Parts breakdown

Diagram

Diagram parts

Parts list

  • Torque Arm
    • Ref No: 1
    • Part No: 9910380271
    • Qty Req: 1
    Our price: $87.11 List price: $107.54
  • Roll Pin
    • Ref No: 2
    • Part No: 9910550290
    • Qty Req: 2
    Our price: $9.44 List price: $11.65
  • Nut
    • Ref No: 3
    • Part No: 9910320130
    • Qty Req: 1
    Our price: $1.92 List price: $2.37
  • Washer
    • Ref No: 4
    • Part No: 9910320131
    • Qty Req: 1
    Our price: $1.51 List price: $1.86
  • Collar
    • Ref No: 5
    • Part No: 9910500160
    • Qty Req: 1
    Our price: $23.27 List price: $28.73
  • Washer
    • Ref No: 6
    • Part No: 9910500171
    • Qty Req: 1
    Our price: $7.14 List price: $8.82
  • Bolt
    • Ref No: 7
    • Part No: 9910320170
    • Qty Req: 1
    Our price: $5.77 List price: $7.12
  • Female Splined Shaft
    • Ref No: 8
    • Part No: 9910550250
    • Qty Req: 1
    Our price: $179.36 List price: $221.43
  • Chain "S" Hook
    • Ref No: 9
    • Part No: 9910320650
    • Qty Req: 4
    Our price: $2.96 List price: $3.66
  • Chain
    • Ref No: 10
    • Part No: 9910320640
    • Qty Req: 2
    Our price: $16.14 List price: $19.93
  • Bolt
    • Ref No: 11
    • Part No: 9910620472
    • Qty Req: 2
    Our price: $2.39 List price: $2.95
  • Lockwasher
    • Ref No: 12
    • Part No: 9910200231
    • Qty Req: 5
    Our price: $1.75 List price: $2.16
  • Wingnut
    • Ref No: 15
    • Part No: 9910320610
    • Qty Req: 1
    Our price: $3.34 List price: $4.12
  • Steel Safety Shield
    • Ref No: 16
    • Part No: 28400028
    • Qty Req: 1
    Our price: $136.71 List price: $168.78
  • Washer
    • Ref No: 17
    • Part No: 22700004
    • Qty Req: 4
    Our price: $1.22 List price: $1.50
