2" Poly w/ 5.5 HP Honda Engine

2" Poly w/ 5.5 HP Honda Engine

Brand:
Banjo
Weight:
75.0 lb
Item #
200PH5
1 1

2" Poly w/ 5.5 HP Honda Engine

2" Poly w/ 5.5 HP Honda Engine

Brand:
Banjo
Weight:
75.0 lb
Item #
200PH5

$978.95
$978.95 List Price: $2,303.42

Earn 2,937 points with this purchase.

See Details

View full details

Product Overview

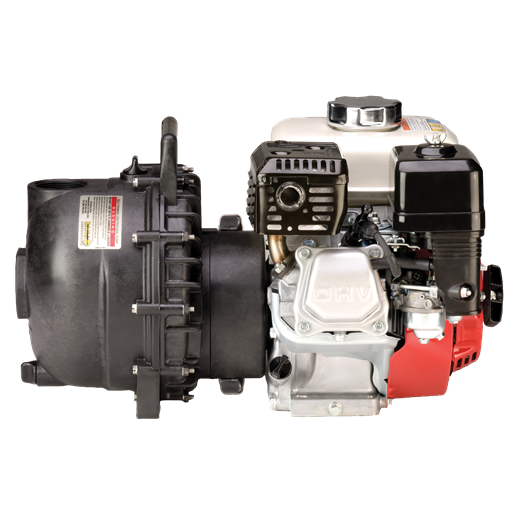

2" Poly Centrifugal Pump w/ 5.5 HP Honda Engine.

195 gpm, 45 psi. 2" NPT Inlet x 2" NPT Outlet.

Features:

-Precision Molded Construction.

-Corrosion Resistant.

-Low Maintenance.

-Lightweight, Superior Design.

-EPDM Standard, FKM (Viton type) Available.

Download Product Manual

Diagram

Diagram parts

Parts list

  • SS Body Nut
    • Ref No: 1
    • Part No: V07019
    • Qty Req: 10
    Our price: $0.87 List price: $1.74
  • SS Lock Washer
    • Ref No: 2
    • Part No: V07018
    • Qty Req: 10
    Our price: $0.87 List price: $1.74
  • Poly Pump Rear Bracket
    • Ref No: 3
    • Part No: 12703A
    • Qty Req: 1
    Our price: $73.87 List price: $147.74
  • Seal Assembly
    • Ref No: 4
    • Part No: 12713
    • Qty Req: 1
    Our price: $36.16 List price: $72.32
  • FKM (Viton) Seal Assembly w/ 316SS Cup & Spring
    • Ref No: 4
    • Part No: 12713V
    • Qty Req: 1
    Our price: $60.15 List price: $120.29
  • O-Ring for Screw Head
    • Ref No: 5
    • Part No: 12717
    • Qty Req: 4
    Our price: $0.77 List price: $1.54
  • FKM (Viton) O-Ring for Screw Head
    • Ref No: 5
    • Part No: 12717V
    • Qty Req: 4
    Our price: $0.91 List price: $1.82
  • SS Bracket Screw
    • Ref No: 5A
    • Part No: 12715A
    • Qty Req: 4
    Our price: $3.12 List price: $6.24
  • O-Ring Segment
    • Ref No: 6
    • Part No: 12754
    • Qty Req: 1
    Our price: $4.96 List price: $9.91
  • FKM (Viton) O-Ring Segment
    • Ref No: 6
    • Part No: 12754V
    • Qty Req: 1
    Our price: $7.99 List price: $15.98
  • Body O-Ring
    • Ref No: 7
    • Part No: 12719A
    • Qty Req: 1
    Our price: $11.80 List price: $23.60
  • FKM (Viton) Body O-Ring
    • Ref No: 7
    • Part No: 12719AV
    • Qty Req: 1
    Our price: $52.55 List price: $105.09
  • 5 Vane Impeller
    • Ref No: 8
    • Part No: 12772
    • Qty Req: 1
    Our price: $34.65 List price: $69.29
  • SS Impeller Bolt
    • Ref No: 9
    • Part No: 12765A
    • Qty Req: 1
    Our price: $14.86 List price: $29.71
  • Impeller Bolt Gasket
    • Ref No: 10
    • Part No: 12774VA
    • Qty Req: 1
    Our price: $1.35 List price: $2.69
  • Impeller Hex Nut
    • Ref No: 11
    • Part No: 12775A
    • Qty Req: 1
    Our price: $11.80 List price: $23.60
  • Poly Pump Volute
    • Ref No: 12
    • Part No: 12702A
    • Qty Req: 1
    Our price: $55.60 List price: $111.19
  • SS Volute Screw
    • Ref No: 13
    • Part No: 12725
    • Qty Req: 2
    Our price: $3.12 List price: $6.24
  • Poly Pump Check Valve
    • Ref No: 14
    • Part No: 12705
    • Qty Req: 1
    Our price: $13.34 List price: $26.67
  • FKM (Viton) Poly Pump Check Valve
    • Ref No: 14
    • Part No: 12705V
    • Qty Req: 1
    Our price: $91.38 List price: $182.75
  • Body Assembly
    • Ref No: 15
    • Part No: 12712A
    • Qty Req: 1
    Our price: $114.22 List price: $228.43
  • SS Body Screw
    • Ref No: 16
    • Part No: 12720
    • Qty Req: 10
    Our price: $3.12 List price: $6.24
  • Banjo 1/2" Drain Plug (1"-1/4")
    • Ref No: 17
    • Part No: 12777
    • Qty Req: 2
    Our price: $2.36 List price: $4.72
  • Prime/Drain Plug O-Ring
    • Ref No: 18
    • Part No: UV15163
    • Qty Req: 2
    Our price: $0.83 List price: $1.65
  • 1"-1/4" Viton O-Ring for Drain Plug
    • Ref No: 18
    • Part No: UV15163V
    • Qty Req: 2
    Our price: $3.24 List price: $6.47
  • SS Upper Volute Screw
    • Ref No: 19
    • Part No: 12900
    • Qty Req: 4
    Our price: $1.30 List price: $2.60
  • SS Rear Bracket Washer
    • Ref No: 20
    • Part No: 12901
    • Qty Req: 4
    Our price: $0.77 List price: $1.54
  • Impeller Key
    • Ref No: 21
    • Part No: 12902A
    • Qty Req: 1
    Our price: $1.52 List price: $3.03
  • Poly Pump Slinger
    • Ref No: 22
    • Part No: 12716
    • Qty Req: 1
    Our price: $4.96 List price: $9.91
  • O-Ring for Seal Assembly
    • Ref No: 23
    • Part No: 12710
    • Qty Req: 1
    Our price: $3.12 List price: $6.24
  • FKM (Viton) O-Ring for Seal Assembly
    • Ref No: 23
    • Part No: 12710V
    • Qty Req: 1
    Our price: $7.99 List price: $15.98
