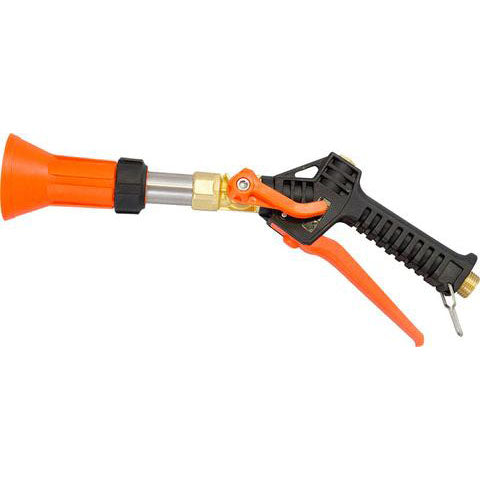

Name: 26.901.162 Udor Turbo Spray Gun
Brand: Udor
SKU: 26901162
Price: 178.37 USD
Availability: InStock

26.901.162 Udor Turbo Spray Gun

Brand:

Udor

Weight:

1.5 lb

Item #

26901162

1 1

26.901.162 Udor Turbo Spray Gun

Brand:

Udor

Weight:

1.5 lb

Item #

26901162

$178.37

$178.37 List Price: ~~$221.40~~

Product variants

Earn 535 points with this purchase.

See Details

View full details

Product Overview

The spray pattern of the 26.901.162 Udor Turbo Spray Gun is adjustable from a straight stream to a cone mist which makes it adaptable to a variety of projects. The inlet is designed to take 1/2" tubing with a maximum of 850 PSI, but can be converted to NPT with the right adapter.

Manufacturer description

UDOR high performance spray gun with 8" barrel. Adjustable spray pattern from straight stream to cone mist. 2.3 tip standard with gun. Please note the inlet on the gun is 1/2" male metric thread. Please use adapter 207P8 to convert to NPT.

Resources

Download Product Manual

Features

Max flow: 15 gpm
Max pressure: 850 psi
Barrel length: 8"
Inlet: 1/2" Metric male thread
Recommended adapter for inlet: 207P8, 1/2" Female Metric x 1/2" FNPT
Disc size: 2.3 is standard, other sizes available
Weight: 1.5 lbs

Parts breakdown

Diagram

Parts list

O-Ring
- Ref No: 2
- Part No: 76021
- Qty Req: 1
Our price: $3.65 List price: $4.40
Nozzle Retainer
- Ref No: 3
- Part No: 26170110
- Qty Req: 1
Our price: $20.92 List price: $25.20
O-Ring
- Ref No: 4
- Part No: 6860210
- Qty Req: 1
Our price: $3.65 List price: $4.40
Nozzle Protector
- Ref No: 5
- Part No: 2617072
- Qty Req: 1
Our price: $23.24 List price: $28.00
Outer Tube
- Ref No: 7
- Part No: 26170322
- Qty Req: 1
Our price: $37.60 List price: $45.30
Regulator
- Ref No: 9
- Part No: 26130433
- Qty Req: 1
Our price: $21.91 List price: $26.40
O-Ring
- Ref No: 10
- Part No: 716026
- Qty Req: 2
Our price: $4.73 List price: $5.70
Spacer
- Ref No: 12
- Part No: 26150614
- Qty Req: 1
Our price: $5.64 List price: $6.80
Adjustment Lever
- Ref No: 13
- Part No: 269026
- Qty Req: 1
Our price: $9.63 List price: $11.60
Bolt
- Ref No: 14
- Part No: 26190220
- Qty Req: 1
Our price: $2.82 List price: $3.40
Insert Guide
- Ref No: 15
- Part No: 268015
- Qty Req: 1
Our price: $6.72 List price: $8.10
Trigger
- Ref No: 17
- Part No: 299028
- Qty Req: 1
Our price: $11.79 List price: $14.20
Trigger Pin (Not Sold Individually)
- Ref No: 18
- Part No: 2916073
- Qty Req: 1
Our price: $2.32 List price: $2.80
Plug
- Ref No: 19
- Part No: 29170226
- Qty Req: 1
Our price: $7.89 List price: $9.50
Seat
- Ref No: 23
- Part No: 23160314
- Qty Req: 1
Our price: $7.30 List price: $8.80
O-Ring
- Ref No: 24
- Part No: 2360236
- Qty Req: 1
Our price: $25.40 List price: $30.60
Plunger
- Ref No: 25
- Part No: 23130429
- Qty Req: 1
Our price: $5.48 List price: $6.60
Spring
- Ref No: 27
- Part No: 23100316
- Qty Req: 1
Our price: $4.32 List price: $5.20
Trigger Clip
- Ref No: 28
- Part No: 2950710
- Qty Req: 1
Our price: $11.79 List price: $14.20
Inlet Adapter
- Ref No: 29
- Part No: 2911011
- Qty Req: 1
Our price: $7.22 List price: $8.70
Udor 29.1903.7 Trigger Valve
- Ref No: 30
- Part No: 2919037
- Qty Req: 1
Our price: $45.22 List price: $64.60
