6047.06/LP Control Unit RO-70

6047.06/LP Control Unit RO-70

Brand:
Udor
Weight:
5.0 lb
Item #
604706LP
Skip to product information
1 of 1

6047.06/LP Control Unit RO-70

6047.06/LP Control Unit RO-70

Brand:
Udor
Weight:
5.0 lb
Item #
604706LP

Regular price $281.85
Sale price $281.85 Regular price List Price: $386.10

Earn 846 points with this purchase.

View full details

Collapsible content

Product Overview

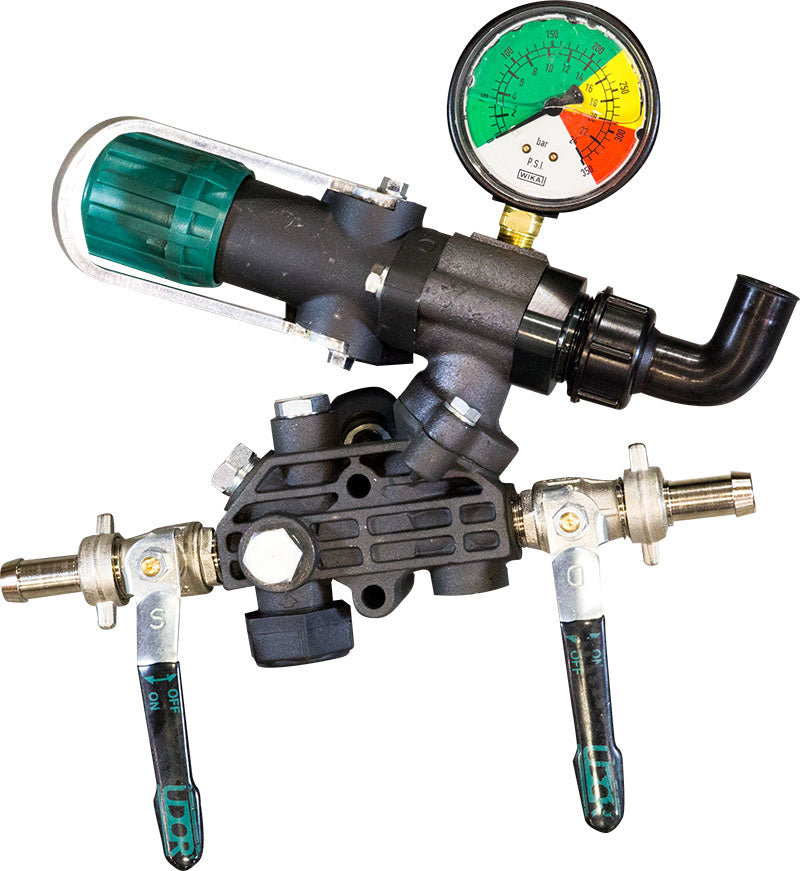

Put the control into your hands with this 6047.06/LP control unit RO-70 by Udor. Fit for a variety of spray operations, this unit is made for the RO-70 and RO-70/GR-5 diaphragm pumps and features a pressure control knob, a glycerin-filled gauge, a manual dump valve and two ball valve discharge ports.

Manufacturer description

The 6047-06 & 6047.06/LP are pump or remote mounted control units. They have right angle entry from the main body to the adjustable pressure regulator for smoother operation and longer life. They include a manual dump valve, two (2) 1/2" ball valve discharge ports, and pressure gauge. Liquid handling parts are black anodized aluminum, stainless steel, and glass-filled nylon. The 6047.06 is standard on KAPPA-75 & KAPPA-100 pumps. The 6047.06/LP is fitted with a lighter spring and gauge for lower pressure applications and is recommended for RO-70 pumps.

Features

  • Mounts to pump models: KAPPA-75, KAPPA-100
  • Remote mount to pump models: RO-70, RO-70/GR-5
  • Max flow: 26 gpm
  • Max pressure: 350 psi
  • Port sizes: 3/4" hose barb bypass, two 1/2" hose barb outlets with individual shut-offs
  • Pressure gauge: 0-350 psi, color coded, glycerin filled
  • Weight: 5 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • 1/2" Hose Barb
    • Ref No: 358
    • Part No: 020219
    • Qty Req: 2
    Our price: $10.29 List price: $12.40
  • Valve Body (601024, 604706)
    • Ref No: 426
    • Part No: 020440
    • Qty Req: 1
    Our price: $84.25 List price: $101.50
  • Main Body (601024, 604706)
    • Ref No: 428
    • Part No: 020448
    • Qty Req: 1
    Our price: $116.62 List price: $140.50
  • Regulator Piston
    • Ref No: 459
    • Part No: 020510
    • Qty Req: 1
    Our price: $24.98 List price: $30.10
  • Valve Cylinder Cam
    • Ref No: 460
    • Part No: 020511
    • Qty Req: 2
    Our price: $20.09 List price: $24.20
  • Bypass Elbow Hose Barb
    • Ref No: 776
    • Part No: 025404
    • Qty Req: 1
    Our price: $11.29 List price: $13.60
  • Barb Nut
    • Ref No: 1034
    • Part No: 060409
    • Qty Req: 2
    Our price: $9.55 List price: $11.50
  • Bypass Barb Nut
    • Ref No: 1040
    • Part No: 060426
    • Qty Req: 1
    Our price: $10.04 List price: $12.10
  • Gasket
    • Ref No: 1071
    • Part No: 060505
    • Qty Req: 2
    Our price: $1.83 List price: $2.20
  • Ball Valve-Right
    • Ref No: 1124
    • Part No: 060845
    • Qty Req: 1
    Our price: $54.53 List price: $65.70
  • Spring
    • Ref No: 1233
    • Part No: 090124
    • Qty Req: 1
    Our price: $10.71 List price: $12.90
  • 300 PSI Spring (LP Models)
    • Ref No: 1238
    • Part No: 090147
    • Qty Req: 1
    Our price: $10.71 List price: $12.90
  • Dump Valve Lever
    • Ref No: 1275
    • Part No: 090225
    • Qty Req: 1
    Our price: $10.87 List price: $13.10
  • Diaphragm
    • Ref No: 1304
    • Part No: 090326
    • Qty Req: 1
    Our price: $6.89 List price: $8.30
  • O-Ring
    • Ref No: 1368
    • Part No: 110104
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • Plunger Bolt O-Ring
    • Ref No: 1370
    • Part No: 110106
    • Qty Req: 2
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1374
    • Part No: 110112
    • Qty Req: 2
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1389
    • Part No: 110141
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • Adapter Flange
    • Ref No: 1501
    • Part No: 120340
    • Qty Req: 1
    Our price: $62.50 List price: $75.30
  • Steel Poppet (Optional)
    • Ref No: 1545
    • Part No: 120419
    • Qty Req: 1
    Our price: $25.15 List price: $30.30
  • Washer
    • Ref No: 1841
    • Part No: 140306
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • Washer
    • Ref No: 1843
    • Part No: 140307
    • Qty Req: 6
    Our price: $1.33 List price: $1.60
  • Seat
    • Ref No: 1936
    • Part No: 150123
    • Qty Req: 1
    Our price: $29.88 List price: $36.00
  • Oil Plug
    • Ref No: 2251
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Plug
    • Ref No: 2257
    • Part No: 160314
    • Qty Req: 1
    Our price: $4.57 List price: $5.50
  • Adjustment Knob
    • Ref No: 2379
    • Part No: 180117
    • Qty Req: 1
    Our price: $16.43 List price: $19.80
  • Bolt
    • Ref No: 2477
    • Part No: 180810
    • Qty Req: 2
    Our price: $2.41 List price: $2.90
  • Bolt
    • Ref No: 2478
    • Part No: 180468
    • Qty Req: 2
    Our price: $1.99 List price: $2.40
  • Bolt
    • Ref No: 2479
    • Part No: 180474
    • Qty Req: 4
    Our price: $2.32 List price: $2.80
  • S.S. Bolt
    • Ref No: 2630
    • Part No: 181001
    • Qty Req: 1
    Our price: $5.64 List price: $6.80
  • Ball Valve-Left
    • Ref No: 5003
    • Part No: 060846
    • Qty Req: 1
    Our price: $54.53 List price: $65.70
  • Bypass Flange (Udor Control Unit- 6047.06)
    • Ref No: 7262
    • Part No: 050807
    • Qty Req: 1
    Our price: $50.13 List price: $60.40
  • Barb Nut
    • Ref No: 7330
    • Part No: 060429
    • Qty Req: 1
    Our price: $7.55 List price: $9.10
  • Plug
    • Ref No: 7700
    • Part No: 160322
    • Qty Req: 1
    Our price: $2.24 List price: $2.70
