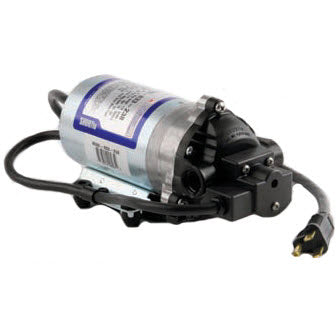

Pumps in the SHURflo 8000 and 8020 series deliver the same reliable performance as the popular 12 VDC version and offer a 115 VAC capacity. The high pressure flow rates commonly found in agricultural applications are easily handled by this bypass pump; this model handles a maximum flow rate of 1.6 GPM (6.1 l/m). This compact pump can be mounted in any position and is designed for simple maintenance.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

These SHURflo 8000 and 8020 Series pumps provide the same reliability as the 12 VDC version, except in a 115 VAC capacity. They are ideal in agricultural applications that require high pressure with flow rates up to 1.6 GPM [6.1 l/min] and low amp draw. They can be mounted in any position, are compact, and are designed for easy maintenance.

Download Product Manual

• Automatic Demand
• Self-priming up to 8 vertical feet
• Can run dry without damage
• Built-in check valve
• Max flow: 1.5 gpm
• Max pressure: 40 psi
• Voltage: 115VAC with 6' power cord
• Component material: Viton® valves, Santoprene® diaphragm
• Max Draw: .56
• Port size: 3/8" FNPT
• Weight: 6 lbs
