AA144A-3 Electric Solenoid Valve

AA144A-3 Electric Solenoid Valve

Brand:
TeeJet
Weight:
4.7 lb
Item #
AA144A3
1 review
Skip to product information
1 of 1

AA144A-3 Electric Solenoid Valve

AA144A-3 Electric Solenoid Valve

Brand:
TeeJet
Weight:
4.7 lb
Item #
AA144A3
1 review

Regular price $439.18
Sale price $439.18 Regular price List Price: $731.97

Earn 1,318 points with this purchase.

View full details

Collapsible content

Product Overview

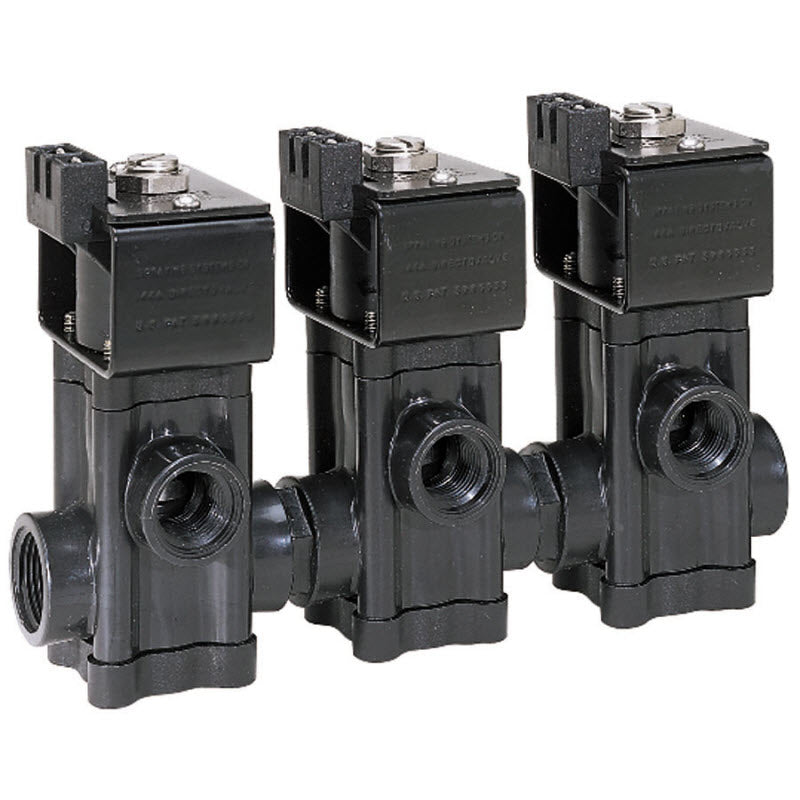

The AA144A-3 Electric Solenoid Valve is designed to resist clogs, and it allows for a continuous liquid flow through a bypass connection, and the flow to the main spray line is controlled by the valve's regulating action. The chemical-resistant body is made of polypropylene, and it provides pressure levels up to 100 PSI. You also can change the solenoid cell without removing the whole valve.
The three-way solenoid-operated DirectoValve control valve bypasses boom flow to maintain constant spraying pressure when one or more boom sections are shut off. To maintain pressure with a 23520 throttling valve, outlet 2 must be throttled to match the total capacity of the nozzles on that boom section. Features: -Direct acting; large internal flow chamber without pilot hole reduces chance of clogging -Stainless steel wetted parts provide additional corrosion resistance -Operates on 12 VDC system -Maximum pressure of 100 psi -Encapsulated solenoid coil can be changed without removing valve from system -EPDM diaphragms and seat washers standard, Viton® optional -Continuous flow through bypass connection, with flow to spray line controlled by valve "on-off" action
  • Max pressure: 100 psi (4.5 bar)
  • Flow rate: 8 gpm (30 l/min) with a 5 psi (0.34 bar) pressure drop
  • 2.5 amp current draw
  • Encapsulated 12 VDC coil can be easily changed without removing valve from line
  • Polypropylene body for chemical resistance
  • Internal metal parts are stainless steel
  • Chemical resistant EPDM diaphragms and seat washers
  • Weight: 5 lbs
