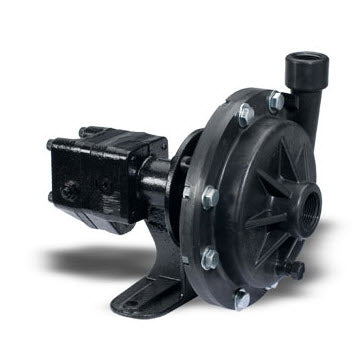

Ace Polypropylene Hydraulic Driven Centrifugal Pump

Model #: FMC-75-HYD-204

Centrifugal pump design provides great resistance to abrasive solutions and extra flow for agitation.  The advantages of the hydraulic motor driven pump are mounting versatility, customized performance and ease of maintenance.  All hydraulic driven pumps are equipped with a stainless steel shaft and wear ring for excellent corrosion resistance.

Features:

• Max flow: 25 gpm
• Max pressure: 100 psi
• Port sizes: 1" FNPT Suction, 3/4" FNPT Discharge
• Pump material: Poly
• Hydraulic motor: Requires 4 gpm hydraulic flow on closed and open systems
• Seal material: Viton® Carbon/Ceramic (Optional Severe Duty Silicon Carbide available)
• Max fluid temperature: 140° F

Download Product Manual
