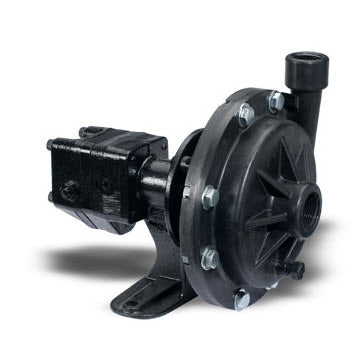

Name: Ace FMC-75-HYD-206 Centrifugal Pump
Brand: Ace Pumps
SKU: FMC75HYD206
Price: 772.8 USD
Availability: InStock

Ace FMC-75-HYD-206 Centrifugal Pump

Brand:

Ace Pumps

Weight:

17.0 lb

Item #

FMC75HYD206

1 1

Ace FMC-75-HYD-206 Centrifugal Pump

Brand:

Ace Pumps

Weight:

17.0 lb

Item #

FMC75HYD206

$772.80

$772.80 List Price: ~~$1,288.00~~

Product variants

Earn 2,318 points with this purchase.

See Details

View full details

Product Overview

Ace Polypropylene Hydraulic Driven Centrifugal Pump

Model #: FMC-75-HYD-206

Centrifugal pump design provides great resistance to abrasive solutions and extra flow for agitation. The advantages of the hydraulic motor driven pump are mounting versatility, customized performance and ease of maintenance. All hydraulic driven pumps are equipped with a stainless steel shaft and wear ring for excellent corrosion resistance.

Features:

Max flow: 27 gpm
Max pressure: 100 psi
Port sizes: 1" FNPT Suction, 3/4" FNPT Discharge
Pump material: Poly
Hydraulic motor: Requires 7 gpm hydraulic flow on closed and open systems
Seal material: Viton® Carbon/Ceramic (Optional Severe Duty Silicon Carbide available)
Max fluid temperature: 140° F

Resources

Download Product Manual

Parts breakdown

Diagram

Parts list

Pipe plug, 1/8” NPT, plastic
- Ref No: 1
- Part No: BAC53P
- Qty Req: 1
Our price: $1.75 List price: $2.50
Cap screw, 3/8”-16 x 7/8”, hex head
- Ref No: 2
- Part No: 80250
- Qty Req: 8
Our price: $1.93 List price: $2.75
Washer, 3/8”
- Ref No: 3
- Part No: 42701
- Qty Req: 8
Our price: $0.70 List price: $1.00
Volute, 3/4” x 1”, polypropylene
- Ref No: 4
- Part No: GE1275
- Qty Req: 1
Our price: $110.60 List price: $158.00
Cap screw, 1/4”-28 x 1”, hex, stainless steel
- Ref No: 5
- Part No: 42240
- Qty Req: 1
Our price: $2.80 List price: $4.00
Washer, sealing
- Ref No: 6
- Part No: 30028
- Qty Req: 5
Our price: $1.75 List price: $2.50
Impeller, with keyway, polypropylene
- Ref No: 7
- Part No: GE2675
- Qty Req: 1
Our price: $52.15 List price: $74.50
Cap screw, 5/16”NF x 2-1/4”
- Ref No: 8
- Part No: 42238
- Qty Req: 4
Our price: $2.63 List price: $3.75
Seal, 5/8” , Viton®/carbon/ceramic
- Ref No: 9
- Part No: BAC775V
- Qty Req: 1
Our price: $41.65 List price: $59.50
Seal, 5/8” , Viton®/silicon carbide (optional)
- Ref No: 9
- Part No: BAC7SC75V
- Qty Req: 1
Our price: $133.88 List price: $191.25
O-ring, shaft seal, GE-85
- Ref No: 9A
- Part No: 40159
- Qty Req: 1
Our price: $1.05 List price: $1.50
O-ring, volute seal, GE-85
- Ref No: 10
- Part No: 40017
- Qty Req: 1
Our price: $11.73 List price: $16.75
Bracket, polypropylene
- Ref No: 11
- Part No: GE1475
- Qty Req: 1
Our price: $117.25 List price: $167.50
Nut, hex, 3/8”
- Ref No: 12
- Part No: BAC45
- Qty Req: 8
Our price: $0.70 List price: $1.00
Mounting frame (for BAC-75-HYD-204R, 206R hydraulic motor)
- Ref No: 13
- Part No: BAC1475HYD
- Qty Req: 1
Our price: $228.55 List price: $326.50
Slinger
- Ref No: 14
- Part No: BAC54
- Qty Req: 1
Our price: $1.75 List price: $2.50
Snap Ring
- Ref No: 15
- Part No: BAC33
- Qty Req: 2
Our price: $1.75 List price: $2.50
Bearing, BAC-6 driven shaft
- Ref No: 16
- Part No: BAC37
- Qty Req: 2
Our price: $16.98 List price: $24.25
Snap ring, external, BAC-6 driven shaft
- Ref No: 17
- Part No: BAC32
- Qty Req: 2
Our price: $0.88 List price: $1.25
Spacer for BAC-6 shaft
- Ref No: 18
- Part No: BAC32S
- Qty Req: 1
Our price: $5.08 List price: $7.25
Key, 3/16” x 3/16” x 15/16”
- Ref No: 19
- Part No: 41082
- Qty Req: 1
Our price: $1.05 List price: $1.50
Shaft, 5/8” Driven shaft with tang slot, stainless steel
- Ref No: 20
- Part No: BAC675HYDSS
- Qty Req: 1
Our price: $109.20 List price: $156.00
Seal support spacer for 200 series hydraulic lip seal
- Ref No: 21
- Part No: S200ACE
- Qty Req: 1
Our price: $8.58 List price: $12.25
Hydraulic motor, 4 GPM
- Ref No: 22
- Part No: BAC75HYD204R
- Qty Req: 1
Our price: $492.45 List price: $820.75
Hydraulic motor, 7 GPM
- Ref No: 22
- Part No: BAC75HYD206R
- Qty Req: 1
Our price: $481.50 List price: $802.50
Cap screw, 5/16” NC x 3 1/2” socket head (for 204 motor)
- Ref No: 23
- Part No: 41253
- Qty Req: 4
Our price: $1.75 List price: $2.50
Cap screw, 5/16” NC x 3 3/4” socket head (for 206 motor)
- Ref No: 23
- Part No: 41255
- Qty Req: 4
Our price: $1.75 List price: $2.50
O-ring, #8 SAE fitting
- Ref No: 24
- Part No: 41875ACE
- Qty Req: 2
Our price: $1.05 List price: $1.50
Reverse Check Valve, #8 SAE Male x 1/2" NPT Female
- Ref No: 25
- Part No: BAC788SAE
- Qty Req: 1
Our price: $24.68 List price: $35.25
Body, restrictor orifice, #8SAE x 1/2” NPT
- Ref No: 26
- Part No: BAC808SAE
- Qty Req: 1
Our price: $19.25 List price: $27.50
O-ring, orifice insert
- Ref No: 27
- Part No: 41448
- Qty Req: 1
Our price: $1.05 List price: $1.50
Orifice, restrictor insert, .078 (204)
- Ref No: 28
- Part No: BAC795
- Qty Req: 1
Our price: $9.80 List price: $14.00
Orifice, restrictor insert, .109 (206)
- Ref No: 28
- Part No: BAC797
- Qty Req: 1
Our price: $9.80 List price: $14.00
Flow limiting valve (204), #8 SAE male x 1/2” NPT female
- Ref No: 29
- Part No: LS204N
- Qty Req: 1
Our price: $75.95 List price: $108.50
Flow limiting valve (206), #8 SAE male x 1/2” NPT female
- Ref No: 29
- Part No: LS206N
- Qty Req: 1
Our price: $75.95 List price: $108.50
