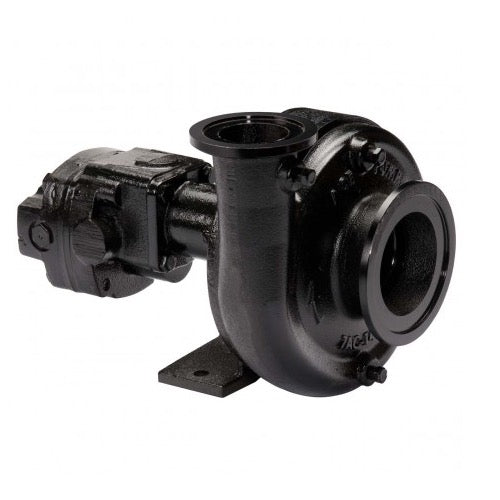

Name: Ace FMCSC-205F-HYD-304 Hydraulic Driven Centrifugal Pump
Brand: Ace Pumps
SKU: FMCSC205FHYD304
Price: 1297.8 USD
Availability: InStock

Ace FMCSC-205F-HYD-304 Hydraulic Driven Centrifugal Pump

Brand:

Ace Pumps

Weight:

40.0 lb

Item #

FMCSC205FHYD304

1 1

Ace FMCSC-205F-HYD-304 Hydraulic Driven Centrifugal Pump

Brand:

Ace Pumps

Weight:

40.0 lb

Item #

FMCSC205FHYD304

$1,297.80

$1,297.80 List Price: ~~$2,163.00~~

Free Shipping on Qualified Orders Over $100

In stock orders placed within

12 hrs 47 minsship out same day. Learn more

Product variants

Earn 3,893 points with this purchase.

See Details

View full details

Product Overview

Ace FMCSC-205F-HYD-304 Hydraulic Driven Centrifugal Pump

Manufacturer description

Stainless Steel
Severe Duty Silicon Carbide Mechanical Seal with O-ring Seat for Improved Survivability
Larger 203 Bearings for Longer Life
Chemical Resistant Valox Impeller

Resources

Download Product Manual

Features

Port sizes: Inlet 300 Flange, Outlet 220 Flange
Max Pressure: 120 PSI
Max Flow: 240 GPM
Weight: 40 lbs

Parts breakdown

Diagram

Parts list

Pipe Plug, 1/8" NPT
- Ref No: 1
- Part No: BAC53
- Qty Req: 4
Our price: $0.53 List price: $0.75
Pipe plug, 1/8" NPT stainless steel (-FS model)
- Ref No: 1
- Part No: 41120
- Qty Req: 4
Our price: $4.38 List price: $6.25
Volute, 300 standard flange x 220 full port flange, cast iron
- Ref No: 2
- Part No: 7AC14FLG
- Qty Req: 1
Our price: $381.33 List price: $544.75
Volute, 300 flange x 220 flange, 316 stainless steel (-FS model)
- Ref No: 2
- Part No: 7AC14FLGSS
- Qty Req: 1
Our price: $637.50 List price: $1,062.50
Nut, 3/8” NF, stainless steel
- Ref No: 3
- Part No: BAC23BSS
- Qty Req: 1
Our price: $1.05 List price: $1.50
Washer, 3/8”, stainless steel, self-locking
- Ref No: 4
- Part No: BAC24BSS
- Qty Req: 1
Our price: $5.95 List price: $8.50
Impeller, thermoplastic
- Ref No: 5
- Part No: BAC26200P
- Qty Req: 1
Our price: $113.93 List price: $162.75
Impeller, cast iron (optional)
- Ref No: 5
- Part No: BAC26200CI
- Qty Req: 1
Our price: $242.03 List price: $345.75
Impeller, 316 stainless steel (-FS model) (optional)
- Ref No: 5
- Part No: BAC26200SS
- Qty Req: 1
Our price: $324.28 List price: $463.25
O-ring, body seal
- Ref No: 6
- Part No: BAC4A
- Qty Req: 1
Our price: $6.65 List price: $9.50
Seal, silicon carbide
- Ref No: 7
- Part No: BAC7SC205V
- Qty Req: 1
Our price: $146.83 List price: $209.75
Mounting frame for 205 pump
- Ref No: 8
- Part No: BAC14205HYD
- Qty Req: 1
Our price: $326.73 List price: $466.75
Mounting frame for 205 pump, 316 stainless steel (-FS model)
- Ref No: 8
- Part No: BAC14205HYDSS
- Qty Req: 1
Our price: $673.50 List price: $1,122.50
Cap screw, 3/8” NC x 3/4” hex head
- Ref No: 9
- Part No: 40950
- Qty Req: 4
Our price: $0.70 List price: $1.00
Cap screw, 3/8” NC x 3/4” hex head, stainless steel
- Ref No: 9
- Part No: 40930
- Qty Req: 4
Our price: $2.10 List price: $3.00
Cap screw, 5/16” NC x 3/4” hex head, motor to pump
- Ref No: 10
- Part No: 41330
- Qty Req: 4
Our price: $0.70 List price: $1.00
Slinger
- Ref No: 11
- Part No: BAC54
- Qty Req: 1
Our price: $1.75 List price: $2.50
Snap ring, internal, BAC-14-205 mounting frame
- Ref No: 12
- Part No: BACH33
- Qty Req: 2
Our price: $1.40 List price: $2.00
Snap ring, internal, BAC-14-205 mounting frame
- Ref No: 13
- Part No: BACH32HD
- Qty Req: 3
Our price: $2.80 List price: $4.00
Ball bearing, sealed, BAC-6-205 shaft
- Ref No: 14
- Part No: 40880
- Qty Req: 2
Our price: $20.83 List price: $29.75
Shaft, extended keyway, tang, stainless steel
- Ref No: 15
- Part No: BAC6205HYDSS
- Qty Req: 1
Our price: $174.13 List price: $248.75
Key, 1/8” x 1/8” x 13/16”, extended keyway
- Ref No: 16
- Part No: BAC25
- Qty Req: 1
Our price: $1.05 List price: $1.50
Seal support spacer for 205 series pump
- Ref No: 17
- Part No: S305
- Qty Req: 1
Our price: $14.35 List price: $20.50
Hydraulic Motor
- Ref No: 18
- Part No: BAC75HYD304N
- Qty Req: 1
Our price: $686.55 List price: $1,144.25
O-ring, #8 SAE fitting
- Ref No: 19
- Part No: 41875ACE
- Qty Req: 1
Our price: $1.05 List price: $1.50
O-ring, #10 SAE fitting
- Ref No: 20
- Part No: 41445
- Qty Req: 1
Our price: $1.05 List price: $1.50
Body, restrictor orifice, #8SAE x 1/2” NPT
- Ref No: 21
- Part No: BAC808SAE
- Qty Req: 1
Our price: $19.25 List price: $27.50
O-ring, orifice insert
- Ref No: 22
- Part No: 41448
- Qty Req: 1
Our price: $1.05 List price: $1.50
Restrictor orifice insert, .125
- Ref No: 23
- Part No: BAC798
- Qty Req: 1
Our price: $9.80 List price: $14.00
Reverse check assembly, #10 SAE x 1/2” NPT
- Ref No: 24
- Part No: BAC7810SAE
- Qty Req: 1
Our price: $26.60 List price: $38.00
Flow limiter (optional)
- Ref No: 25
- Part No: LS304N
- Qty Req: 1
Our price: $75.95 List price: $108.50
