Annovi Reverberi manufactures high quality plunger pumps that are built to last. The XMA35G22N is no different and an industry standard for many businesses. Every part is made to perform efficiently even with heavy use. The valves and seals resist exposure to chemicals and will last longer than than the competition if maintained properly. This pump is a great replacement for the discontinued Hypro 2330B-P. Rail kit sold separately - please see part number 2633H.

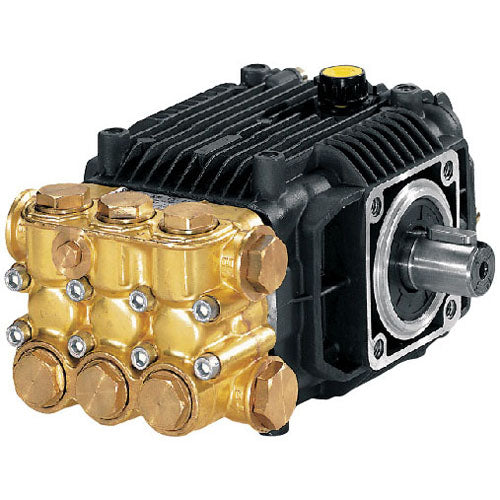

Annovi Reverberi AR XMA35G22N horizontal gas engine triplex plunger pump is rated up to 3.5 GPM or 2500 PSI with a 3/4" solid shaft at 1750 RPM. ½” FNPT inlet and 3/8" FNPT discharge thread.

Plunger Pumps are designed for a wide variety of moderate pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized needle bearing on the drive sides and ball bearings on the non-drive side assure proper shaft alignment and maximum life. Valve cages of special designed Ultra-Form impervious to water absorption provide positive seating and extended life. Onepiece connecting rods are either a special alloy aluminum or bronze at higher pressures, oversized for strength and load disbursement. These pumps are designed for electric motor 56-C driven systems.

• Max flow: 3.5 gpm
• Max pressure: 2500 psi
• Max speed: 1750 rpm
• Port Sizes: 1/2" FNPT inlet, 3/8" FNPT outlet
• Shaft: 3/4" solid
• Max. Fluid Temperature: 140 degrees Fahrenheit
• Weight: 14 lbs
