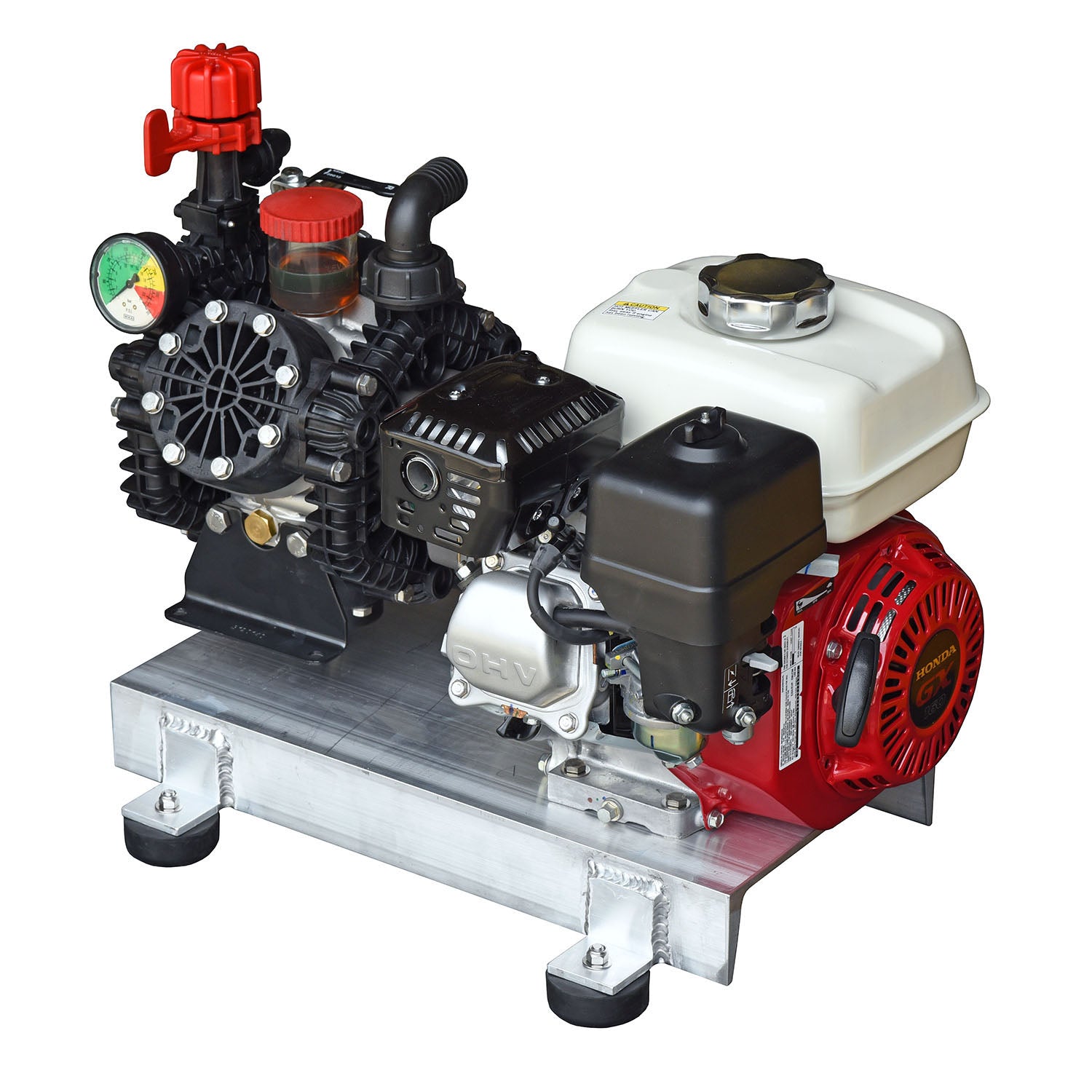

Annovi Reverberi AR45LFP-GR-GCI liquid fertilizer and pesticide low pressure diaphragm pump. Three semi-hydraulic diaphragms. Single male cardan shaft. For use in the gardening or professional agricultural sectors, base-mounted in combination with PTO’s, electric motors or internal combustion engines for gardening, and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.

• Semi-hydraulic three-diaphragm pump, for use with aggressive products in low pressure systems
• Parts in contact with the liquids being pumped are: reinforced polypropylene, Kynar and AISI 316 L. Diaphragms in BlueFlex and Viton®
• Three-diaphragm design for smoother operation, lower pulsation and less hammer effect
• Crankcase shell is precision die cast. Splash lubricated oiling system with a clear oil tank for visual oil level checking
• Remote level monitoring sensor on request
• Oil drainage stopper
• Piston and ring design offers an efficient “oil cushion” system to protect the diaphragm
• New-design diaphragms and keepers prevent contact tearing even in heavy-duty operating conditions
• Spherical sector profile valves offer lower flow resistance and improved volumetric efficiency
• Heavy duty mounting rails, AISI 304 SST fasteners. Drive types: Cardan shaft or keyed solid shaft Available with reduction gearbox for internal combustion engines, pulley fixtures or flanges for hydraulic motors.

AR45LFPGRGCI:

• Max flow: 11 gpm
• Max pressure: 290 psi
• Includes pressure regulator and gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines
• Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
• Pump shaft rotation: CW and CCW
• Max fluid temperature: 140°F

Honda GX160 Engine:

• Engine type: Air-cooled 4-stroke OHV
• Starting sytem: Recoil starter
• Shaft: 3/4" solid keyed
• Bore x stroke: 68 x 45 mm
• Displacement: 163 cm3
• Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
• Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
• PTO shaft rotation: Counterclockwise from PTO shaft side
• Compression ratio: 9.0 : 1
• Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
• Carburetor: Butterfly
• Lubrication system: Splash
• Governor system: Centrifugal mechanical
• Air cleaner: Dual element
• Oil capacity: 0.61 US qt. (0.58 L)
• Fuel tank capacity: 3.3 US qts (3.1 liters)
• Fuel: Unleaded 86 octane or higher
• Dry weight 33 lbs (15.1 kg)
• Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
• Warranty: 3 year commercial warranty (limited to manufacturer defects)
