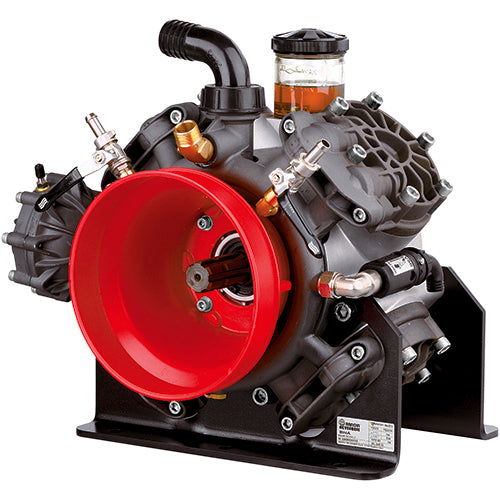

The BHA170-C/C diaphragm pump is widely used in the commercial, industrial and agricultural sprayer industries. With a flow rate up to 42.4 gpm and max pressure of 725 psi it is optimal for medium or large-sized sprayers, assisting in the targeted distribution of your liquid product onto desired surfaces for consistent, even coverage every time. This model is equipped with dual male PTO shafts.

Annovi Reverberi is the number one agricultural diaphragm pump manufacturer in the world. Our versatile pumps have been used in a multitude of applications for more than 5 decades in 85 countries worldwide. They are self-priming, with flows from 3.5 to 238 GPM and pressures up to 725 PSI, these pumps can feature the revolutionary AR BLUEFLEX diaphragms. BLUEFLEX is what we believe is the best performing diaphragm material currently available in the market.

Annovi Reverberi high pressure diaphragm pumps for agricultural, petrochemical, wastewater, mining, printing and more. Our pumps can apply a wide variety of chemicals with different viscosities, from 21.1 GPM to 51.2 GPM. The pumps are rugged enough to handle strong chemical agents with ease. These high pressure diaphragm pumps are simultaneously exquisitely sophisticated in terms of regulating systems and UID control strategies, perfectly in line with the need to protect the environment of today and tomorrow. Compatible with gasoline, electric or hydraulic motors. Available in a many configurations. High pressure control units sold separately on most units.

Download Product Manual

• Max flow: 42.4 gpm
• Max pressure: 725 psi
• Shaft: 1-3/8" 6-spline male PTO on both ends
• Port sizes: 1-1/2" HB inlet, 3/4" NPT outlet
• Pump shaft rotation: CW and CCW

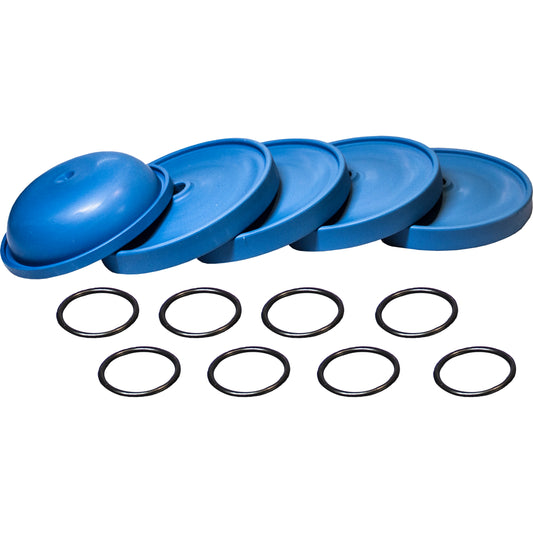

• Diaphragms: 4, semi-hydraulic, BlueFlex® material
• Housing: Anodized aluminum
• Head & Manifold material: Anodized aluminum
• Recommended control unit: VDR50 or GH50
• Recommended gearbox: None - cannot mount gearbox to this pump
• Max fluid temperature: 140°F
• Weight: 112 lbs
