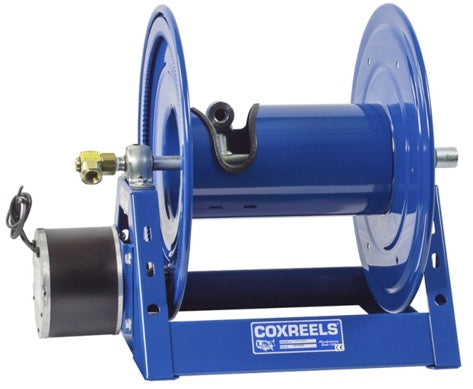

Coxreels® manufactures their reels right here in the USA. Through performance, technology, and innovation they have perfected their product since opening in 1923. Designed with the industry professional in mind - 1125 series reels are durable and user friendly. The 1125-4-100-E-XXY electric rewind reel features a welded "A" frame base and will hold up to 140' of 3/8" ID or 100' of 1/2" ID hose.

Coxreels® 1125 Series hose reels have the features demanded by industry professionals. The industry preferred design features a sturdy one piece all welded "A" frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap. All listed models are supplied less hose. Stainless steel models are available.

• Machined solid brass 90 degree full flow NPT swivel (nickel plated steel swivel on 1" models)
• All welded steel "A" frame construction for superior reel structure
• Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
• Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation
• Adjustable tension brake to prevent "free-wheeling" during operation
• Long-handled locking pin to secure reel from rotation during transport or storage
• Solid steel direct hand crank with smooth round handle
• Professional grade heavy duty steel construction
• Durable proprietary CPC powder coat process
• Rolled edges & ribbed discs provide strength & safety
• 2 year manufacturer's limited warranty

• Rewind: Electric
• Construction: Steel, long lasting, chip resistant and rust inhibiting CPC powder coat finish (blue color)
• Distance between discs: 6"
• 1/3 hp electric motor (12V power source needed)
• Standard inlet: 90° solid brass full-flow, 1/2" female NPT threads
• Standard outlet: 1/2" female NPT threads
• Optional rollers available: 4-way or 3-way assembly available
• Rated up to pressure of 3000 psi
• Consult factory for other pressures and temperatures
• Hose/Cable Size: 3/8" to 1/2" ID
• Capacity of Reel: 100 to 140 feet depending on ID of hose
• 3/8" ID hose capacity: 140 feet
• 1/2" ID hose capacity: 100 feet
• Approximate weight: 49 lbs
