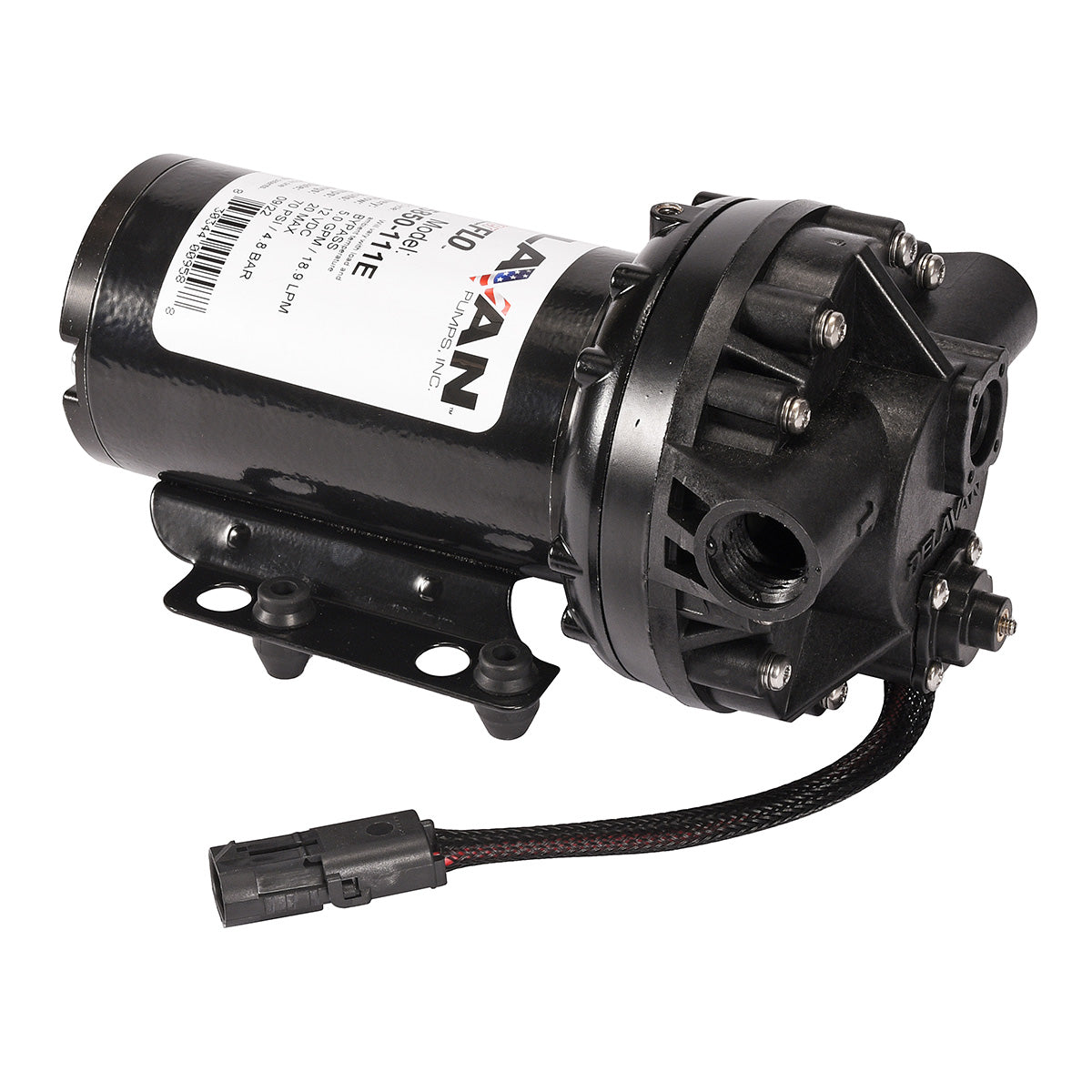

This Delavan 5850-111E PowerFLO Electric Diaphragm Pump, which comes in a bypass version with this model, is perfect for low-pressure sprayer operations. Rated with a maximum pressure of 60 PSI and an upper flow limit of 5 GPM, it's fabricated with Viton valves and a Santoprene diaphragm for enhanced protection against corrosion. Choose this pump for industrial, agricultural and commercial uses.

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

(Image shown may not match exactly) Model: 5850-111E - 12 VDC Bypass with Weatherproof Electric Connector Delavan designs, engineers and manufactures a wide variety of electric pumps for many different applications. The 5850 series are 12 VDC or 115VAC and are also available in both Automatic Demand and Bypass versions. Pumps are manufactured with Viton valves and Santoprene diaphragm for increased corrosion resistance.

Download Product Manual

• Bypass
• Self-priming up to 14 vertical feet
• Can run dry without damage
• Built-in check valve
• Max flow: 5 gpm
• Max pressure: 60 psi
• Voltage: 12 VDC
• Component material: Viton® valves, Santoprene® diaphragm
• Port size: 1/2" FNPT
• Max fluid temperature: 140°F
• Weight: 8 lbs
