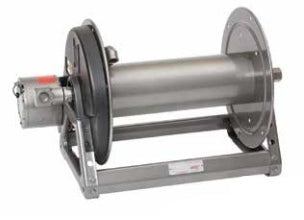

Hannay E1822-17-18 Electric Rewind Hose Reel

14" between the discs. Handles 5/8" or 3/4" ID hose

E1822-17-18 can hold up to 150' of 5/8" ID hose or 100' of 3/4" ID hose.

Features:

-Lightweight, compact reels designed for long lengths of hose in manual and power rewind

-Equipped with 1/3 HP motor

-Direct crank rewind is permanently attached

-Chain and sprocket drive is powered by electric, hydraulic or compressed air motor

-Manual reels include: Cam-lock drag brake, spring actuated pin lock

-Standard inlet is 90º ball bearing swivel joint with 1" FNPT threads

-Standard outlet is 3/4" FNPT thread

-Operating pressure up to 2000 psi

-Operating temperatures from -40° F to +250° F (-40° C to +121° C)

-Option roller guides available

Actual weight: 48 lbs.
