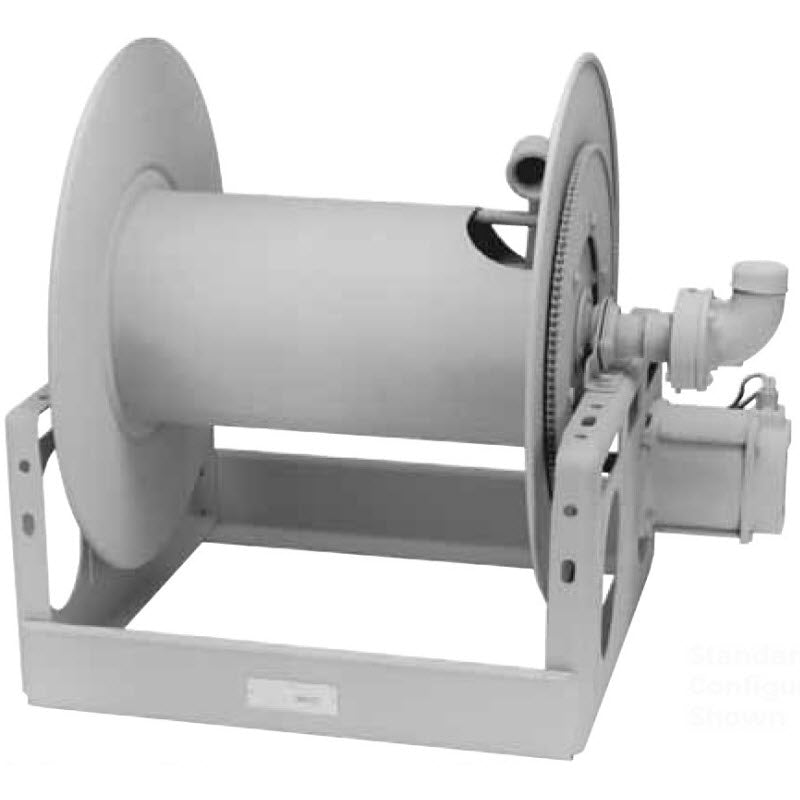

Hannay E7522-30-31 Electric Rewind Hose Reel

13.5" between the discs. Handles 1" to 1-1/2" ID hose

E7522-30-31 can hold up to 190' of 1" ID hose, 160' of 1-1/4" ID or 100' of 1-1/2" ID hose.

Features:

-Heavy-duty reel designed for longer lengths

-Standard inlet is 90º ball bearing swivel joint with 1-1/2" female NPT threads and 2" vitaulic groove

-Standard outlet flanged riser is 1-1/2" female NPT threads

-Standard inlet, outlet riser and hub assembly are steel

-Optional bronze or aluminum swivel joint and stainless steel hub assembly and riser are available

-Optional rollers available

-Operating pressure up to 600 psi

-Operating temperatures from -60° F to +175° F (-51° C to +79° C)

Download Product Manual
