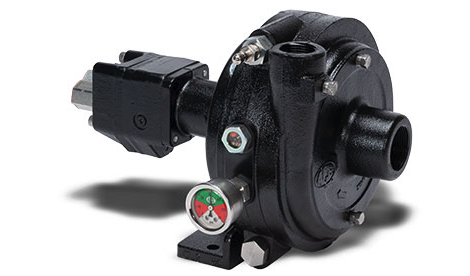

FMCWS-125-HYD-206-PWM Centrifugal Pump (Oasis™ WetSeal)
FMCWS-125-HYD-206-PWM Centrifugal Pump (Oasis™ WetSeal)
Brand:
Ace Pumps
Weight:
51.0 lb
Item #
FMCWS125HYD206PWM
FMCWS-125-HYD-206-PWM Centrifugal Pump (Oasis™ WetSeal)
FMCWS-125-HYD-206-PWM Centrifugal Pump (Oasis™ WetSeal)
Brand:
Ace Pumps
Weight:
51.0 lb
Item #
FMCWS125HYD206PWM
Regular price
$2,195.40
Sale price
$2,195.40
Regular price
List Price:
$3,659.00
Unit price
per
Free Shipping on Qualified Orders Over $100
In stock orders placed withinship out same day. Learn more
Earn 6,586 points with this purchase.
Collapsible content
Product Overview
The Pro 5 Series has the same compact, close coupled design that you have come to expect with several new features to maximize life and reliability. E-coat corrosion protection and larger bearings provide longer life. Oasis Wet Seal Technology prevents run dry failure and isolates seals from harsh chemicals. Interchangeability of parts within the Pro 5 Series simplifies stock and reduces inventory needed for field support.
Manufacturer description
- E-Coated cast iron housings for added corrosion resistance
- Larger bearings provide longer life
- Ace Pump's exclusive Oasis WetSeal Technology
- Optional motor with integrated PWM (pulse width modulated) motor for precision applications
- The 206 motor requires 7 GPM (26.5 LPM) maximum hydraulic fluid input and fits virtually all tractor hydraulic systems.
- Pressure Compensating Closed Center Systems
- Load Sensing Closed Center Systems
- Open Center Systems up to 16 GPM (60.6 LPM) using internal needle valve bypass
Resources
Features
- Ports -1-¼" suction, 1" discharge
- Max Flow- 110 GPM (416 LPM)
- Max Pressure- 120 PSI (8.3 BAR)
- Construction- E- coated Cast Iron
- Seal- Carbon Ceramic/ FKM
- Shaft- Stainless Steel
- Bearings- Sealed for Long Life
- Impeller- Thermoplastic with Stainless Steel Hub
- Wear Ring- Stainless Steel
