Hypro 1537-SP Centrifugal (Gas Driven)

Hypro 1537-SP Centrifugal (Gas Driven)

Brand:
Hypro
Weight:
78.0 lb
Item #
1537SP
Skip to product information
1 of 1

Hypro 1537-SP Centrifugal (Gas Driven)

Hypro 1537-SP Centrifugal (Gas Driven)

Brand:
Hypro
Weight:
78.0 lb
Item #
1537SP

Regular price $2,176.04
Sale price $2,176.04 Regular price List Price: $3,956.43

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 6,528 points with this purchase.

View full details

Collapsible content

Product Overview

98 gpm, 70 psi.

2" NPT inlet x 2" NPT outlet.

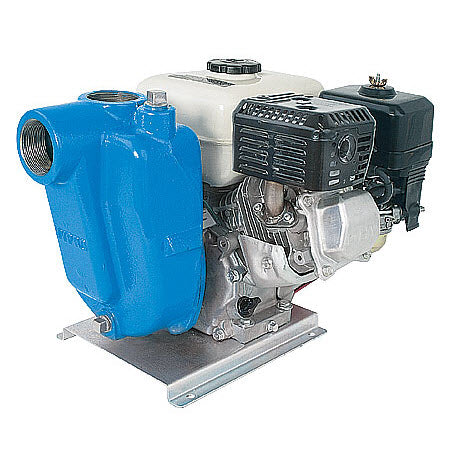

Hypro 1537-SP Centrifugal Gas Engine Driven pump. Close coupled 5.5 HP Honda engine. Cast Iron housing.

Hypro self-priming centrifugal pumps handle big, high-capacity spraying jobs with ease. They offer outstanding performance without the need for a flooded suction inlet. The pumps are ideal for sprayers that require pump mounting above the carrier tank. High pressure capabilities allow the pump to be used for both tank filling and spraying.

The broad, versatile line includes models with rugged housings of cast iron that stand up to strong chemical herbicides. 78 lbs.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pipe Plug
    • Ref No: 1
    • Part No: 24060001
    • Qty Req: 4
    Our price: $3.97 List price: $4.90
  • Pump Casing (with SS Wear Ring)
    • Ref No: 2
    • Part No: 01529070C
    • Qty Req: 1
    Our price: $742.15 List price: $916.24
  • Impeller (Nylon)
    • Ref No: 3
    • Part No: 04029200P
    • Qty Req: 1
    Our price: $154.10 List price: $190.25
  • Gasket
    • Ref No: 4
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.74 List price: $7.09
  • O-Ring
    • Ref No: 5
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • 3430-0332 Seal & O-Ring Repair Kit Hypro Cast Iron Centrifugal Pumps
    • Ref No: 6
    • Part No: 34300332
    • Qty Req: 1
    Our price: $69.24 List price: $85.48
  • Bolt
    • Ref No: 7
    • Part No: 22100098
    • Qty Req: 4
    Our price: $3.13 List price: $3.87
  • Seal
    • Ref No: 8
    • Part No: 17000119
    • Qty Req: 4
    Our price: $8.31 List price: $10.26
  • Flange
    • Ref No: 9
    • Part No: 07039200C
    • Qty Req: 1
    Our price: $230.56 List price: $284.64
  • Mounting Plate
    • Ref No: 10
    • Part No: 15100083
    • Qty Req: 1
    Our price: $111.24 List price: $137.33
  • Lock Washer
    • Ref No: 11
    • Part No: 22600002
    • Qty Req: 4
    Our price: $1.18 List price: $1.46
  • Hex Head Cap Screw
    • Ref No: 13
    • Part No: 22100021
    • Qty Req: 4
    Our price: $1.14 List price: $1.41
  • Washer
    • Ref No: 14
    • Part No: 22700040
    • Qty Req: 4
    Our price: $0.95 List price: $1.17
  • Honda GX160 5.5 HP Engine (Threaded Shaft)
    • Ref No: 15
    • Part No: GX160UT2TX2
    • Qty Req: 1
    Our price: $447.00 List price: $497.00
  • Hex Head Cap Screw
    • Ref No: 17
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.12 List price: $1.38
  • Plug
    • Ref No: 18
    • Part No: 24060002
    • Qty Req: 1
    Our price: $3.52 List price: $4.34
