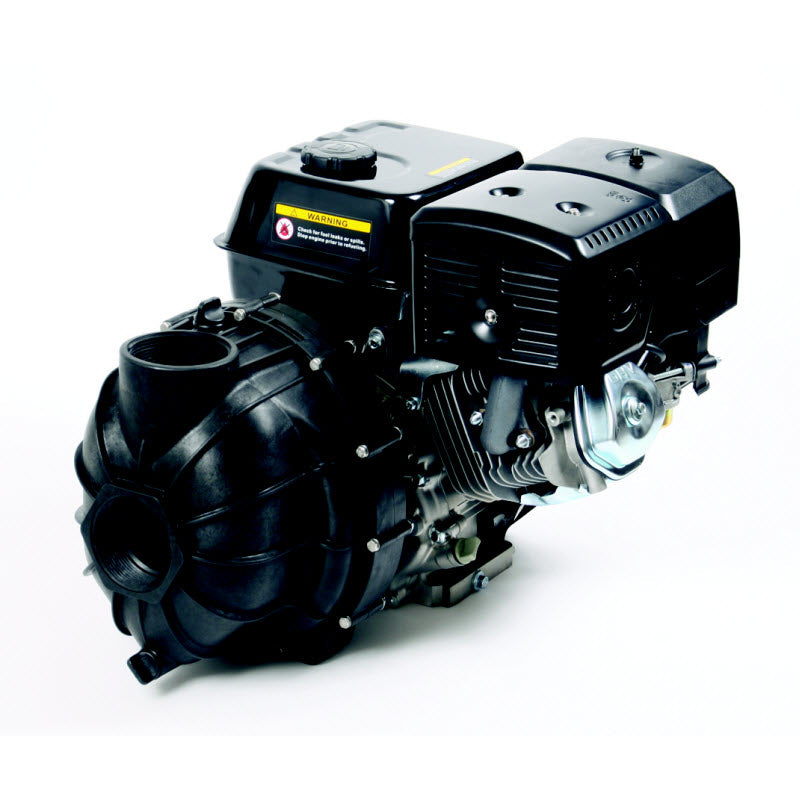

Hypro 1543P-390EHSP 3" Poly Transfer Pump (Electric Start Honda)

Hypro 1543P-390EHSP 3" Poly Transfer Pump (Electric Start Honda)

Brand:
Hypro
Weight:
150.0 lb
Item #
1543P390EHSP
Skip to product information
1 of 1

Hypro 1543P-390EHSP 3" Poly Transfer Pump (Electric Start Honda)

Hypro 1543P-390EHSP 3" Poly Transfer Pump (Electric Start Honda)

Brand:
Hypro
Weight:
150.0 lb
Item #
1543P390EHSP

Regular price $2,052.34
Sale price $2,052.34 Regular price List Price: $3,731.53

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 6,157 points with this purchase.

View full details

Collapsible content

Product Overview

Gas Engine-Drive, Self Priming Polypropylene Transfer Pump.

440 gpm, 54 psi.

1543P-390EHSP Hypro 3" Poly Transfer Pump with 13 HP Electric start GX390 Honda Engine.

Achieve more flow (up to 440 GPM), more horsepower and greater efficiency than other 3” transfer pumps on the market! The Hypro 3" poly transfer pumps significantly reduce fill time for large sprayers. Hypro's Poly Transfer pumps handle big, high capacity, liquid transfer jobs with ease. Ideal for nursetank transfer and other closed system applications, this pump was specifically designed to work with 9 and 13 HP PowerPro engines and will fit on standard SAE j609a flanged engines between 8 and 18 HP.

The polypropylene housing and EPDM elastomers protect the pump from most chemicals and corrosive environments.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Honda GX390 13 HP Engine (Electric Start)
    • Ref No: 1B
    • Part No: GX390K1QAE2
    • Qty Req: 1
    Our price: $1,035.00 List price: $1,150.00
  • Hex Flange Bolt
    • Ref No: 4
    • Part No: 22100182
    • Qty Req: 4
    Our price: $11.17 List price: $13.79
  • Key
    • Ref No: 6
    • Part No: 16100069
    • Qty Req: 1
    Our price: $1.59 List price: $1.96
  • O-Ring
    • Ref No: 7
    • Part No: 17230142
    • Qty Req: 1
    Our price: $0.92 List price: $1.13
  • Hex Flange Bolt
    • Ref No: 8
    • Part No: 22100181
    • Qty Req: 1
    Our price: $9.62 List price: $11.88
  • Pump Volute
    • Ref No: 9
    • Part No: 01501543P
    • Qty Req: 1
    Our price: $40.26 List price: $49.70
  • Pump Housing
    • Ref No: 11
    • Part No: 01001543PK
    • Qty Req: 1
    Our price: $217.83 List price: $268.92
  • Slinger Ring
    • Ref No: 14
    • Part No: 14100091
    • Qty Req: 1
    Our price: $5.86 List price: $7.23
  • Back Plate
    • Ref No: 15
    • Part No: 07501543P
    • Qty Req: 1
    Our price: $111.24 List price: $137.33
  • Impeller
    • Ref No: 18
    • Part No: 04001543P
    • Qty Req: 1
    Our price: $54.45 List price: $67.22
  • Fill/Drain Plug
    • Ref No: 19
    • Part No: 24040350P
    • Qty Req: 2
    Our price: $1.75 List price: $2.16
  • O-Ring
    • Ref No: 20
    • Part No: 17200230
    • Qty Req: 2
    Our price: $1.13 List price: $1.40
  • Hex Washer Head Screw
    • Ref No: 21
    • Part No: 22100183
    • Qty Req: 4
    Our price: $5.91 List price: $7.30
