Hypro 9018C-O Centrifugal Pump

Hypro 9018C-O Centrifugal Pump

Brand:
Hypro
Weight:
45.0 lb
Item #
9018CO
1 1

Hypro 9018C-O Centrifugal Pump

Hypro 9018C-O Centrifugal Pump

Brand:
Hypro
Weight:
45.0 lb
Item #
9018CO

$1,138.74
$1,138.74 List Price: $2,070.44

Earn 3,416 points with this purchase.

See Details

View full details

Product Overview

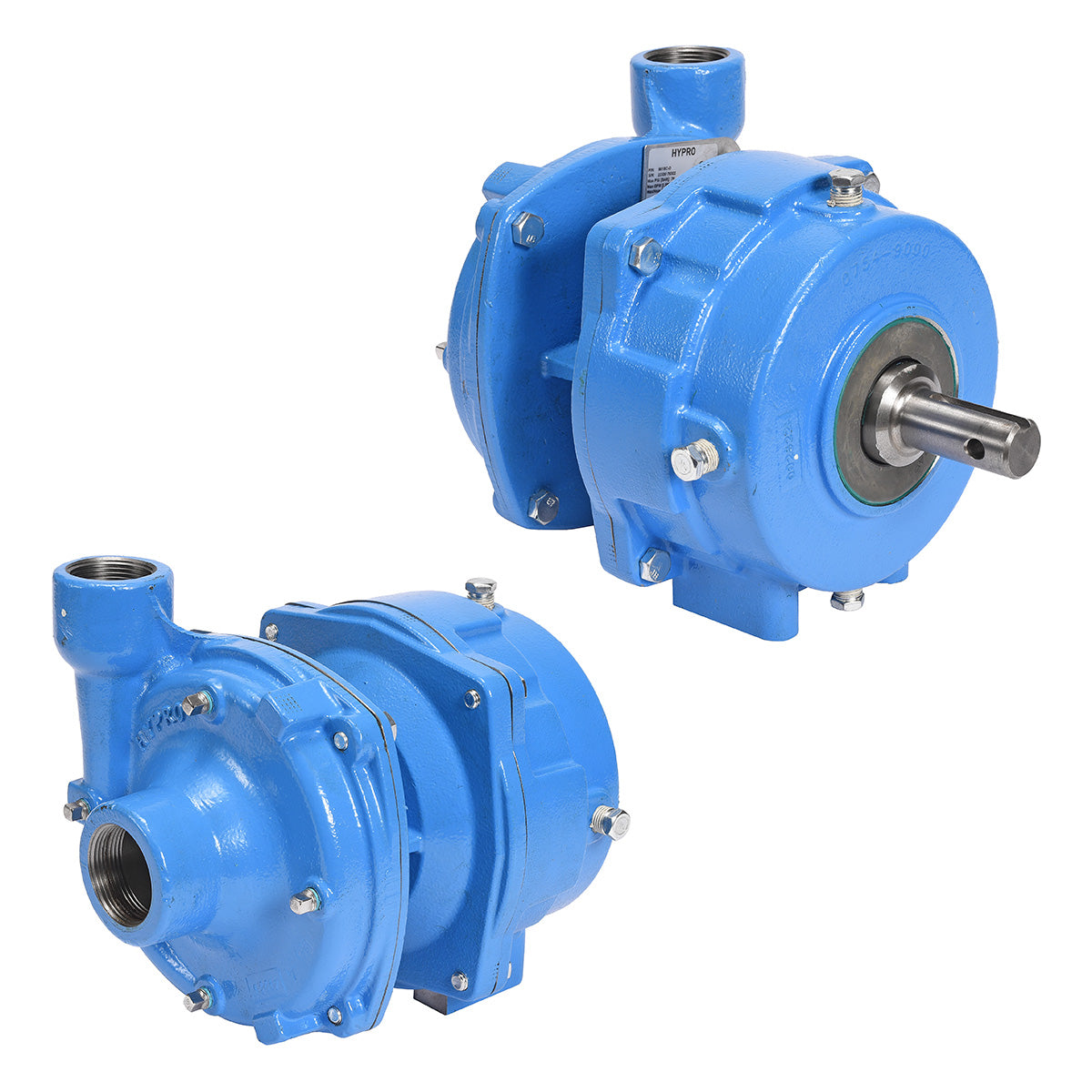

Hypro 9018C-O Gear Driven Centrifugal Pump.

110 gpm, 75 psi.

1-1/2" NPT Inlet x 1-1/4" NPT Outlet. Max RPM 1000, 1" Solid Shaft PTO Output.

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids. The line includes models with rugged housings of cast iron that stand up to strong chemical herbicides.

The series includes models 9006C-O, 9008C-O, 9016C-O, 9018C-O, and 9028C-O.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing (w / SS wear ring)
    • Ref No: 2
    • Part No: 01509000C
    • Qty Req: 1
    Our price: $260.71 List price: $321.87
  • Impeller Nut
    • Ref No: 3
    • Part No: 22530001
    • Qty Req: 1
    Our price: $7.79 List price: $9.62
  • Impeller (Nylon)
    • Ref No: 4
    • Part No: 04009000P
    • Qty Req: 1
    Our price: $67.20 List price: $82.96
  • Gasket
    • Ref No: 5
    • Part No: 17000101
    • Qty Req: 1
    Our price: $6.83 List price: $8.43
  • Mechanical Seal (Optional Buna-N)
    • Ref No: 6
    • Part No: 21200010
    • Qty Req: 1
    Our price: $38.82 List price: $47.92
  • 3430-0334 Seal & O-Ring Repair Kit Hypro 9000C-O Centrifugal Pumps
    • Ref No: 6
    • Part No: 34300334
    • Qty Req: 1
    Our price: $62.56 List price: $77.24
  • O-Ring
    • Ref No: 7
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • Mounting Flange Adapter
    • Ref No: 8
    • Part No: 07529000C
    • Qty Req: 1
    Our price: $307.22 List price: $379.29
  • Hex Head Cap Screw
    • Ref No: 9
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.12 List price: $1.38
  • O-Ring
    • Ref No: 10
    • Part No: 17200139
    • Qty Req: 1
    Our price: $4.03 List price: $4.97
  • Bearing Lip Seal
    • Ref No: 11
    • Part No: 21300018
    • Qty Req: 1
    Our price: $30.60 List price: $37.78
  • Gasket
    • Ref No: 12
    • Part No: 17000098
    • Qty Req: 1
    Our price: $1.22 List price: $1.50
  • Retainer Ring (Shaft)
    • Ref No: 13
    • Part No: 18100013
    • Qty Req: 2
    Our price: $1.17 List price: $1.45
  • Main Bearing - Hypro Pumps
    • Ref No: 14
    • Part No: 20080001
    • Qty Req: 1
    Our price: $18.61 List price: $22.98
  • Retaining Ring (housing)
    • Ref No: 15
    • Part No: 18200025
    • Qty Req: 1
    Our price: $4.70 List price: $5.80
  • Impeller Shaft (1000 rpm)
    • Ref No: 16
    • Part No: 05009002
    • Qty Req: 1
    Our price: $279.22 List price: $344.72
  • Sun Gear (1000 rpm)
    • Ref No: 17
    • Part No: 39000013
    • Qty Req: 1
    Our price: $230.56 List price: $284.64
  • Retaining Ring (1000 rpm)
    • Ref No: 18
    • Part No: 18100011
    • Qty Req: 1
    Our price: $1.53 List price: $1.89
  • Hex Head Capscrew
    • Ref No: 19
    • Part No: 22100046
    • Qty Req: 3
    Our price: $4.80 List price: $5.93
  • Washer
    • Ref No: 20
    • Part No: 22700003
    • Qty Req: 3
    Our price: $1.22 List price: $1.50
  • Thrust Washer
    • Ref No: 21
    • Part No: 22650003
    • Qty Req: 6
    Our price: $1.68 List price: $2.07
  • Bearing ( included with driver gear)
    • Ref No: 22
    • Part No: 20070052
    • Qty Req: 3
    Our price: $15.62 List price: $19.28
  • Bearing Inner Race
    • Ref No: 23
    • Part No: 20070022
    • Qty Req: 3
    Our price: $7.58 List price: $9.36
  • Driver Gear w/ Bearing (1000 rpm)
    • Ref No: 24
    • Part No: 39000040
    • Qty Req: 3
    Our price: $69.52 List price: $85.83
  • Solid Shaft
    • Ref No: 26
    • Part No: 05019018D
    • Qty Req: 1
    Our price: $320.93 List price: $396.21
  • Key
    • Ref No: 27
    • Part No: 16100005
    • Qty Req: 1
    Our price: $2.01 List price: $2.48
  • Locking Collar Kit (Hollow Shaft)
    • Ref No: 29
    • Part No: 34350058
    • Qty Req: 1
    Our price: $59.98 List price: $74.05
  • Woodruff Key**(1) 540 rpm (2) 1000rpm
    • Ref No: 33
    • Part No: 16100012
    • Qty Req: 2
    Our price: $1.49 List price: $1.84
  • Retaining Ring
    • Ref No: 37
    • Part No: 18000014
    • Qty Req: 1
    Our price: $26.44 List price: $32.64
  • Main Bearing
    • Ref No: 38
    • Part No: 20050002
    • Qty Req: 1
    Our price: $157.56 List price: $194.52
  • Retainer Ring
    • Ref No: 39
    • Part No: 18100001
    • Qty Req: 1
    Our price: $2.02 List price: $2.49
  • Ring Gear
    • Ref No: 40
    • Part No: 39000009
    • Qty Req: 1
    Our price: $96.75 List price: $119.45
  • Cushion Bumper
    • Ref No: 41
    • Part No: 14500004
    • Qty Req: 8
    Our price: $1.26 List price: $1.56
  • Gear Casing
    • Ref No: 42
    • Part No: 07549000C
    • Qty Req: 1
    Our price: $212.03 List price: $261.77
  • Hex Head Capscrew
    • Ref No: 43
    • Part No: 22100026
    • Qty Req: 4
    Our price: $1.18 List price: $1.46
  • Breather Vent
    • Ref No: 44
    • Part No: 24040193
    • Qty Req: 1
    Our price: $26.44 List price: $32.64
  • Oil Seal
    • Ref No: 45
    • Part No: 21020025
    • Qty Req: 1
    Our price: $18.82 List price: $23.24
  • O-Ring
    • Ref No: 46
    • Part No: 17200022
    • Qty Req: 1
    Our price: $1.17 List price: $1.45
  • Oil Plug
    • Ref No: 49
    • Part No: 24060019
    • Qty Req: 4
    Our price: $2.03 List price: $2.51
  • Mounting Clip
    • Ref No: 50
    • Part No: 15200034
    • Qty Req: 1
    Our price: $96.16 List price: $118.72
