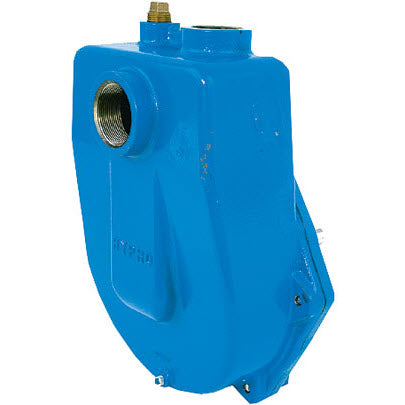

Hypro 9203C-SP Centrifugal Pump

Hypro 9203C-SP Centrifugal Pump

Brand:
Hypro
Weight:
38.0 lb
Item #
9203CSP
1 1

Hypro 9203C-SP Centrifugal Pump

Hypro 9203C-SP Centrifugal Pump

Brand:
Hypro
Weight:
38.0 lb
Item #
9203CSP

$812.38
$812.38 List Price: $1,477.05

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 2,437 points with this purchase.

See Details

View full details

Product Overview

Hypro 9203C-SP Self Priming Centrifugal Pump.

120 gpm, 157 psi.

1-1/2" NPT Inlet, 1-1/4" NPT Outlet. 5/8" Solid Shaft. CCW Rotation.

Hypro self-priming centrifugal pumps handle big, high-capacity spraying jobs with ease. They offer outstanding performance without the need for a flooded suction inlet. The pumps are ideal for sprayers that require pump mounting above the carrier tank. High pressure capabilities allow the pump to be used for both tank filling and spraying.

The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing (Self-Priming Units)
    • Ref No: 2
    • Part No: 34300480SP
    • Qty Req: 1
    Our price: $426.36 List price: $526.37
  • Impeller Nut (Cast Iron Series)
    • Ref No: 3
    • Part No: 22530002
    • Qty Req: 1
    Our price: $6.76 List price: $8.34
  • Impeller, Nylon
    • Ref No: 4
    • Part No: 04019100P
    • Qty Req: 1
    Our price: $58.51 List price: $72.24
  • Impeller, GTX Material (Optional)
    • Ref No: 4
    • Part No: 04079303P
    • Qty Req: 1
    Our price: $159.89 List price: $197.39
  • Gasket
    • Ref No: 5
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.74 List price: $7.09
  • Mechanical Seal (Optional Buna-N)
    • Ref No: 6
    • Part No: 21200008
    • Qty Req: 1
    Our price: $35.62 List price: $43.97
  • 3430-0332 Seal & O-Ring Repair Kit Hypro Cast Iron Centrifugal Pumps
    • Ref No: 6
    • Part No: 34300332
    • Qty Req: 1
    Our price: $69.24 List price: $85.48
  • 3430-0589 Life Guard Silicon Carbide Seal Repair Kit Hypro Stainless Centrifugal Pumps
    • Ref No: 6
    • Part No: 34300589
    • Qty Req: 1
    Our price: $268.80 List price: $331.85
  • O-Ring
    • Ref No: 7
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • Slinger Seal
    • Ref No: 8
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.53 List price: $1.89
  • Mounting Flange (Cast Iron Series)
    • Ref No: 9
    • Part No: 07509200C3
    • Qty Req: 1
    Our price: $195.81 List price: $241.74
  • Hex Head Cap Screw
    • Ref No: 10
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.12 List price: $1.38
  • Pipe Plug
    • Ref No: 11
    • Part No: 24060001
    • Qty Req: 1
    Our price: $3.97 List price: $4.90
  • Ball Bearing for Hypro Pumps
    • Ref No: 12
    • Part No: 20000010
    • Qty Req: 2
    Our price: $12.57 List price: $15.52
  • Key (Cast Iron Series)
    • Ref No: 13
    • Part No: 16100015
    • Qty Req: 1
    Our price: $2.15 List price: $2.66
  • Pump Shaft
    • Ref No: 14
    • Part No: 05059200
    • Qty Req: 1
    Our price: $162.20 List price: $200.25
  • Key
    • Ref No: 15
    • Part No: 16100004
    • Qty Req: 1
    Our price: $2.08 List price: $2.57
  • Retainer Ring
    • Ref No: 16
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • Head Hex Cap Screw
    • Ref No: 17
    • Part No: 22100003
    • Qty Req: 1
    Our price: $1.20 List price: $1.48
  • Washer
    • Ref No: 18
    • Part No: 22700092
    • Qty Req: 1
    Our price: $9.68 List price: $11.95
  • Spacer
    • Ref No: 21
    • Part No: 14100107
    • Qty Req: 1
    Our price: $23.70 List price: $29.26
  • Set Screw
    • Ref No: 22
    • Part No: 22300001
    • Qty Req: 3
    Our price: $2.37 List price: $2.92
  • Clutch Kit
    • Ref No: 24
    • Part No: 34300592
    • Qty Req: 1
    Our price: $991.77 List price: $1,224.41
  • Retaining Ring
    • Ref No: 26
    • Part No: 18100036
    • Qty Req: 1
    Our price: $6.25 List price: $7.72
