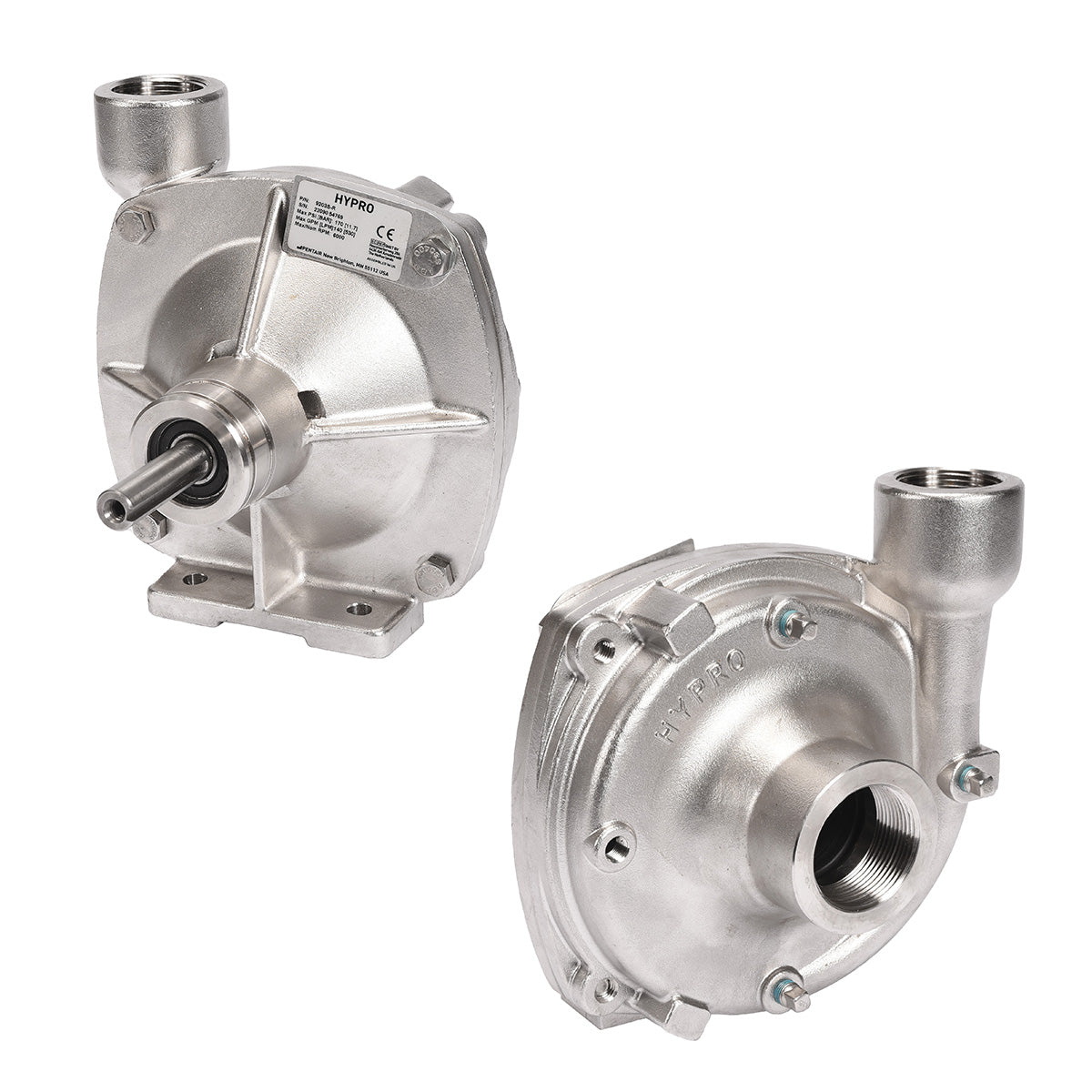

Hypro 9203S-R Centrifugal Pump

Hypro 9203S-R Centrifugal Pump

Brand:
Hypro
Weight:
19.0 lb
Item #
9203SR
1 1

Hypro 9203S-R Centrifugal Pump

Hypro 9203S-R Centrifugal Pump

Brand:
Hypro
Weight:
19.0 lb
Item #
9203SR

$1,038.54
$1,038.54 List Price: $1,888.25

Earn 3,116 points with this purchase.

See Details

View full details

Product Overview

9203S-R (Reverse Rotation for Gas Engine Drive).

140 gpm, 170 psi. Max RPM 6000, 5/8" Stainless Steel Shaft.

1-1/2" NPT inlet, 1-1/4" NPT outlet.

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids.

The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid application.

The series includes models 9203C, 9203S, 9203C-R, and 9203S-R.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Drain Plug
    • Ref No: 1
    • Part No: 24060016
    • Qty Req: 4
    Our price: $10.15 List price: $12.53
  • Pump Casing - Reverse (Stainless Series)
    • Ref No: 2A
    • Part No: 01529000S
    • Qty Req: 1
    Our price: $534.00 List price: $534.00
  • Impeller Nut (Stainless Series)
    • Ref No: 3
    • Part No: 22530006
    • Qty Req: 1
    Our price: $34.12 List price: $42.12
  • Impeller Poly (Stainless Series) (Reversed)
    • Ref No: 4A
    • Part No: 04039100P
    • Qty Req: 1
    Our price: $108.34 List price: $133.75
  • Key
    • Ref No: 5
    • Part No: 16100044
    • Qty Req: 1
    Our price: $8.68 List price: $10.71
  • Gasket
    • Ref No: 6
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.74 List price: $7.09
  • O-Ring
    • Ref No: 7
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • Mechanical Seal (Optional Buna-N)
    • Ref No: 8
    • Part No: 21200008
    • Qty Req: 1
    Our price: $35.62 List price: $43.97
  • 3430-0589 Life Guard Silicon Carbide Seal Repair Kit Hypro Stainless Centrifugal Pumps
    • Ref No: 8
    • Part No: 34300589
    • Qty Req: 1
    Our price: $268.80 List price: $331.85
  • Mounting Flange (Stainless Series)
    • Ref No: 9
    • Part No: 07569200S
    • Qty Req: 1
    Our price: $739.20 List price: $912.59
  • Hex Head Cap Screw
    • Ref No: 10
    • Part No: 22100125
    • Qty Req: 4
    Our price: $2.15 List price: $2.66
  • Slinger Seal
    • Ref No: 11
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.53 List price: $1.89
  • Ball Bearing for Hypro Pumps
    • Ref No: 12
    • Part No: 20000010
    • Qty Req: 2
    Our price: $12.57 List price: $15.52
  • Pump Shaft
    • Ref No: 13
    • Part No: 05059200
    • Qty Req: 1
    Our price: $162.20 List price: $200.25
  • Key
    • Ref No: 14
    • Part No: 16100004
    • Qty Req: 1
    Our price: $2.08 List price: $2.57
  • Retainer Ring
    • Ref No: 15
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • Head Hex Cap Screw
    • Ref No: 16
    • Part No: 22100003
    • Qty Req: 1
    Our price: $1.20 List price: $1.48
  • Washer
    • Ref No: 17
    • Part No: 22700092
    • Qty Req: 1
    Our price: $9.68 List price: $11.95
  • Spacer
    • Ref No: 18
    • Part No: 14100107
    • Qty Req: 1
    Our price: $23.70 List price: $29.26
  • Hypro 2526-0012 Magnetic Clutch Assembly for 9263C-CR-SP Models
    • Ref No: 20
    • Part No: 25260012
    • Qty Req: 1
    Our price: $542.83 List price: $986.96
  • Set Screw
    • Ref No: 21
    • Part No: 22300001
    • Qty Req: 3
    Our price: $2.37 List price: $2.92
  • Clutch Kit
    • Ref No: 22
    • Part No: 34300592
    • Qty Req: 1
    Our price: $991.77 List price: $1,224.41
  • Retaining Ring
    • Ref No: 25
    • Part No: 18100036
    • Qty Req: 1
    Our price: $6.25 List price: $7.72
