Hypro 9206C Centrifugal Pump

Hypro 9206C Centrifugal Pump

Brand:
Hypro
Weight:
23.0 lb
Item #
9206C
1 review
1 1

Hypro 9206C Centrifugal Pump

Hypro 9206C Centrifugal Pump

Brand:
Hypro
Weight:
23.0 lb
Item #
9206C
1 review

$592.96
$592.96 List Price: $1,078.11

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,779 points with this purchase.

See Details

View full details

Product Overview

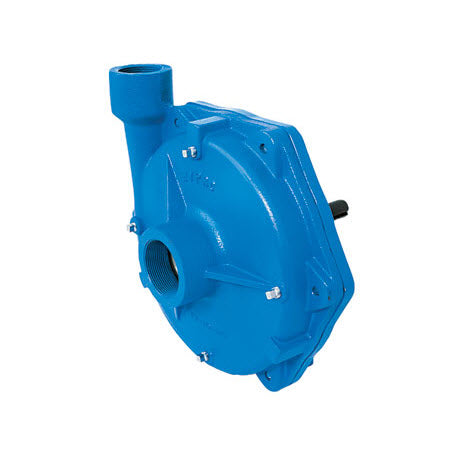

Hypro 9206C Pedestal Mount, Direct Drive Centrifugal Pump.

225 gpm, 80 psi.

2" NPT Inlet, 1-1/2" NPT Outlet. 5/8" Solid Shaft. CCW Rotation.

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids.

The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing
    • Ref No: 2
    • Part No: 01549200C1
    • Qty Req: 1
    Our price: $412.47 List price: $509.22
  • Impeller Nut (Cast Iron Series)
    • Ref No: 3
    • Part No: 22530002
    • Qty Req: 1
    Our price: $6.76 List price: $8.34
  • Impeller (Nylon Std. 9306C)
    • Ref No: 4
    • Part No: 04019200P2
    • Qty Req: 1
    Our price: $123.97 List price: $153.05
  • Gasket
    • Ref No: 5
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.74 List price: $7.09
  • 3430-0332 Seal & O-Ring Repair Kit Hypro Cast Iron Centrifugal Pumps
    • Ref No: 6
    • Part No: 34300332
    • Qty Req: 1
    Our price: $69.24 List price: $85.48
  • O-Ring
    • Ref No: 7
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • Mounting Flange
    • Ref No: 8
    • Part No: 07509200C4
    • Qty Req: 1
    Our price: $209.70 List price: $258.89
  • Hex Head Cap Screw
    • Ref No: 9
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.12 List price: $1.38
  • Slinger Seal
    • Ref No: 10
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.53 List price: $1.89
  • Ball Bearing for Hypro Pumps
    • Ref No: 11
    • Part No: 20000010
    • Qty Req: 2
    Our price: $12.57 List price: $15.52
  • Square Key (HM3C)
    • Ref No: 12
    • Part No: 16100053
    • Qty Req: 1
    Our price: $2.15 List price: $2.66
  • Pump Shaft
    • Ref No: 13
    • Part No: 05059200
    • Qty Req: 1
    Our price: $162.20 List price: $200.25
  • Retainer Ring
    • Ref No: 14
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • 9204C Washer
    • Ref No: 15
    • Part No: 22700071
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • Key
    • Ref No: 16
    • Part No: 16100004
    • Qty Req: 1
    Our price: $2.08 List price: $2.57
