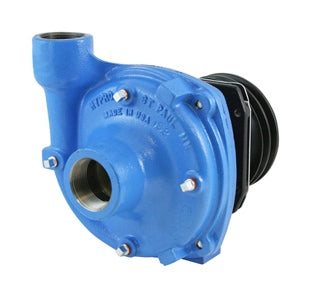

Hypro 9262C-C Centrifugal Pump

Hypro 9262C-C Centrifugal Pump

Brand:
Hypro
Weight:
23.0 lb
Item #
9262CC
1 review

$865.03
$865.03 List Price: $1,572.78

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 2,595 points with this purchase.

See Details

View full details

Product Overview

Hypro 9262C-C Clutch-Driven Cast Iron Centrifugal Pump.

103 gpm, 170 psi.

1-1/4" NPT Inlet, 1" NPT Outlet.

Features:

-Max RPM 5000, CCW Rotation.

-Available in Cast Iron and 316 Stainless Steel.

-Pedestal mount with DC clutch drive.

-Nylon Impeller in Cast Iron; Polypropylene Impeller in Stainless Steel.

-Amp draw: 45 watts at 12 volts.

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids.

The broad, versatile line includes models with rugged housings of cast iron and stainless steel. Stainless steel pumps are ideal for use with Roundup® or other acid applications.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing
    • Ref No: 1
    • Part No: 01509200C
    • Qty Req: 1
    Our price: $287.77 List price: $355.27
  • Impeller Nut (Cast Iron Series)
    • Ref No: 2
    • Part No: 22530002
    • Qty Req: 1
    Our price: $6.76 List price: $8.34
  • Impeller, Nylon
    • Ref No: 3
    • Part No: 04019100P
    • Qty Req: 1
    Our price: $58.51 List price: $72.24
  • Key (Cast Iron Series)
    • Ref No: 4
    • Part No: 16100015
    • Qty Req: 1
    Our price: $2.15 List price: $2.66
  • Gasket
    • Ref No: 5
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.74 List price: $7.09
  • O-Ring
    • Ref No: 6
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11

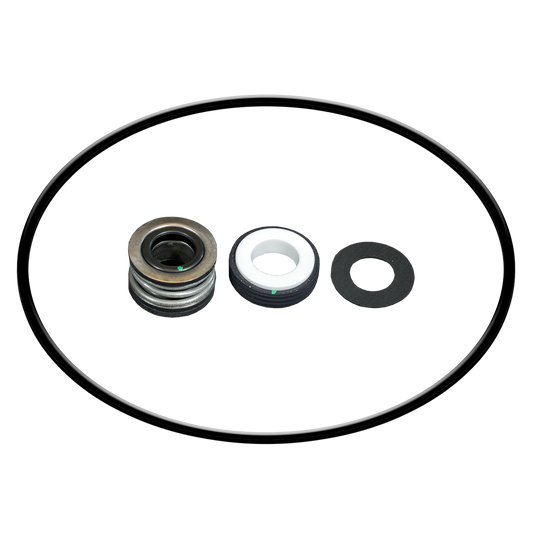

  • 3430-0332 Seal & O-Ring Repair Kit Hypro Cast Iron Centrifugal Pumps
    • Ref No: 7
    • Part No: 34300332
    • Qty Req: 1
    Our price: $69.24 List price: $85.48
  • Mounting Flange (Cast Iron Series)
    • Ref No: 8
    • Part No: 07509200C3
    • Qty Req: 1
    Our price: $195.81 List price: $241.74
  • Hex Head Cap Screw
    • Ref No: 9
    • Part No: 22100020
    • Qty Req: 1
    Our price: $1.12 List price: $1.38
  • Slinger Seal
    • Ref No: 10
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.53 List price: $1.89
  • Ball Bearing for Hypro Pumps
    • Ref No: 11
    • Part No: 20000010
    • Qty Req: 2
    Our price: $12.57 List price: $15.52
  • Pump Shaft
    • Ref No: 12
    • Part No: 05059200
    • Qty Req: 1
    Our price: $162.20 List price: $200.25
  • Key
    • Ref No: 13
    • Part No: 16100004
    • Qty Req: 1
    Our price: $2.08 List price: $2.57
  • Retainer Ring
    • Ref No: 14
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • Set Screw
    • Ref No: 16
    • Part No: 22300001
    • Qty Req: 3
    Our price: $2.37 List price: $2.92
  • Spacer
    • Ref No: 17
    • Part No: 14100107
    • Qty Req: 1
    Our price: $23.70 List price: $29.26
  • Hypro 2526-0012 Magnetic Clutch Assembly for 9263C-CR-SP Models
    • Ref No: 18
    • Part No: 25260012
    • Qty Req: 1
    Our price: $542.83 List price: $986.96
  • Washer
    • Ref No: 19
    • Part No: 22700092
    • Qty Req: 1
    Our price: $9.68 List price: $11.95
  • Head Hex Cap Screw
    • Ref No: 20
    • Part No: 22100003
    • Qty Req: 1
    Our price: $1.20 List price: $1.48
