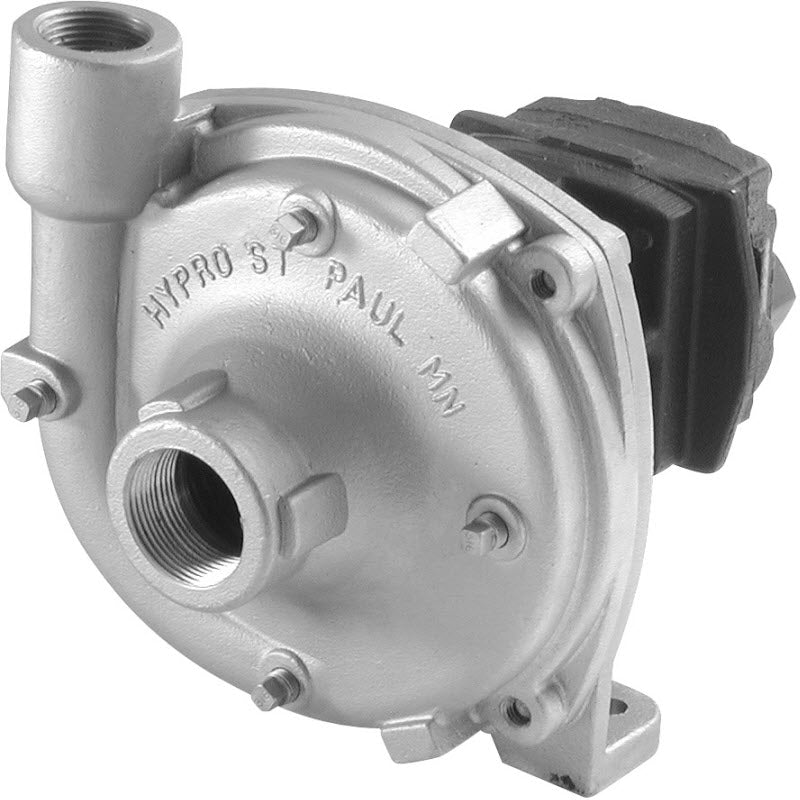

Hypro 9302S-HM2C Centrifugal Pump

Hypro 9302S-HM2C Centrifugal Pump

Brand:
Hypro
Weight:
27.0 lb
Item #
9302SHM2C
1 1

Hypro 9302S-HM2C Centrifugal Pump

Hypro 9302S-HM2C Centrifugal Pump

Brand:
Hypro
Weight:
27.0 lb
Item #
9302SHM2C

$1,805.52
$1,805.52 List Price: $3,282.77

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 5,417 points with this purchase.

See Details

View full details

Product Overview

65 gpm, 96 psi. Max Hydraulic 6 gpm. For Open/Closed Systems.

1-1/4" NPT inlet, 1" NPT outlet.

Hypro 9302S-HM2C Centrifugal Pump.

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc.

Hypro Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle’s hydraulic system and freeing the PTO for other uses. The Hypro “close-coupled” design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor.

The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Drain Plug
    • Ref No: 1
    • Part No: 24060016
    • Qty Req: 4
    Our price: $10.15 List price: $12.53
  • Pump Casing (Centrifugal Pumps- 9302SHM1C/SHM2C/SHM4C)
    • Ref No: 2
    • Part No: 01569200S
    • Qty Req: 1
    Our price: $484.29 List price: $597.89
  • Impeller Nut (Stainless Series)
    • Ref No: 3
    • Part No: 22530006
    • Qty Req: 1
    Our price: $34.12 List price: $42.12
  • Impeller, Poly (9203S, 9302S & 9303P)
    • Ref No: 4
    • Part No: 04029100P
    • Qty Req: 1
    Our price: $64.61 List price: $79.76
  • O-Ring
    • Ref No: 5
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • 3430-0589 Life Guard Silicon Carbide Seal Repair Kit Hypro Stainless Centrifugal Pumps
    • Ref No: 7
    • Part No: 34300589
    • Qty Req: 1
    Our price: $268.80 List price: $331.85
  • Mounting Flange
    • Ref No: 8
    • Part No: 07569300S
    • Qty Req: 1
    Our price: $354.49 List price: $437.64
  • Hex Head Cap Screw
    • Ref No: 9
    • Part No: 22100125
    • Qty Req: 4
    Our price: $2.15 List price: $2.66
  • Slinger Seal
    • Ref No: 10
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.53 List price: $1.89
  • Retainer Ring
    • Ref No: 11
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • Snap Ring
    • Ref No: 12
    • Part No: 18100014
    • Qty Req: 1
    Our price: $1.26 List price: $1.56
  • Ball Bearing for Hypro Pumps
    • Ref No: 13
    • Part No: 20000010
    • Qty Req: 1
    Our price: $12.57 List price: $15.52
  • Spacer
    • Ref No: 14
    • Part No: 14100073
    • Qty Req: 1
    Our price: $4.70 List price: $5.80
  • Shaft Seal
    • Ref No: 15
    • Part No: 21040005
    • Qty Req: 1
    Our price: $101.23 List price: $0.00
  • Seal Spacer
    • Ref No: 16
    • Part No: 14100074
    • Qty Req: 1
    Our price: $1.56 List price: $1.92
  • Thrust Bearing Assembly
    • Ref No: 17
    • Part No: 20290014
    • Qty Req: 1
    Our price: $36.51 List price: $45.07
  • Snap Ring
    • Ref No: 18
    • Part No: 18100026
    • Qty Req: 1
    Our price: $1.28 List price: $1.58
  • Shaft 6-3/4" Long (HM2 & HM4 Models)
    • Ref No: 19
    • Part No: 05092500
    • Qty Req: 1
    Our price: $287.33 List price: $354.73
  • Bolt
    • Ref No: 21
    • Part No: 22100005
    • Qty Req: 4
    Our price: $0.92 List price: $1.14
  • O-Ring
    • Ref No: 22
    • Part No: 17200110
    • Qty Req: 2
    Our price: $1.47 List price: $1.81
  • Gerotor Housing 1/4" Wide (HM2C Model)
    • Ref No: 23
    • Part No: 07012500C1
    • Qty Req: 1
    Our price: $201.94 List price: $249.31
  • Dowel Pin (HM2C & HM4C Models)
    • Ref No: 24
    • Part No: 16000045
    • Qty Req: 1
    Our price: $17.21 List price: $21.25
  • Dowel Pin (HM2C & HM4C Models)
    • Ref No: 25
    • Part No: 16000042
    • Qty Req: 1
    Our price: $17.21 List price: $21.25
  • Gerotor (HM2C Model)
    • Ref No: 26
    • Part No: 39000023
    • Qty Req: 1
    Our price: $203.93 List price: $251.76
  • Motor End Plate
    • Ref No: 27
    • Part No: 02512500C2
    • Qty Req: 1
    Our price: $126.00 List price: $126.00
  • Washer
    • Ref No: 28
    • Part No: 22700039
    • Qty Req: 4
    Our price: $1.22 List price: $1.50
  • Cap Screw (HM2C & HM4C Models)
    • Ref No: 29
    • Part No: 22200045
    • Qty Req: 4
    Our price: $1.73 List price: $2.14
  • O-Ring
    • Ref No: 30
    • Part No: 17200108
    • Qty Req: 2
    Our price: $1.26 List price: $1.56
  • Pressure Port Adapter
    • Ref No: 31
    • Part No: 33600021
    • Qty Req: 1
    Our price: $15.62 List price: $19.28
  • Poppet
    • Ref No: 32
    • Part No: 32600068
    • Qty Req: 1
    Our price: $5.74 List price: $7.09
  • Tank Port Adapter
    • Ref No: 34
    • Part No: 33200049
    • Qty Req: 1
    Our price: $25.72 List price: $31.75
  • Bypass Adjusting Screw
    • Ref No: 35
    • Part No: 32200029
    • Qty Req: 1
    Our price: $10.40 List price: $12.84
  • Gasket
    • Ref No: 36
    • Part No: 17000047
    • Qty Req: 1
    Our price: $4.98 List price: $6.15
  • Washer
    • Ref No: 37
    • Part No: 22700027
    • Qty Req: 1
    Our price: $2.15 List price: $2.66
  • Lock Nut
    • Ref No: 38
    • Part No: 22500038
    • Qty Req: 1
    Our price: $1.22 List price: $1.50
  • Roll Pin (HM2C & HM4C Models)
    • Ref No: 39
    • Part No: 16100032
    • Qty Req: 1
    Our price: $9.32 List price: $11.50
