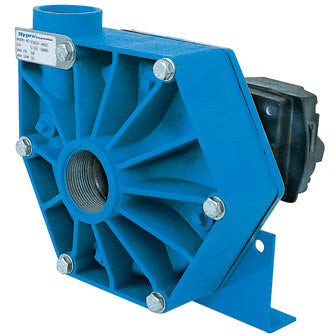

Hypro 9303P-HM4C Centrifugal Pump

Hypro 9303P-HM4C Centrifugal Pump

Brand:
Hypro
Weight:
26.0 lb
Item #
9303PHM4C
1 1

Hypro 9303P-HM4C Centrifugal Pump

Hypro 9303P-HM4C Centrifugal Pump

Brand:
Hypro
Weight:
26.0 lb
Item #
9303PHM4C

$1,047.52
$1,047.52 List Price: $1,904.59

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,143 points with this purchase.

See Details

View full details

Product Overview

82 gpm, 84 psi. Max Hydraulic 7 gpm. For Open/Closed Systems.

1-1/2" NPT inlet, 1-1/4" NPT outlet.

Hypro 9303P-HM4C Centrifugal Pump.

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Polypropylene may also be used to pump acid fertilizer, calcium chloride and other highly corrosive liquids such as sulfuric and phosphoric acids.

Hypro hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle’s hydraulic system and freeing the PTO for other uses. The Hypro “close-coupled” design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor.

The series includes models 9303P-HM1C, 9303P-HM2C, 9303P-HM3C, 9303P-HM4C, and 9303P-HM5C.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Hex Head Cap Screw
    • Ref No: 1
    • Part No: 22100087
    • Qty Req: 4
    Our price: $1.47 List price: $1.81
  • Hex Head Cap Screw (Base Only)
    • Ref No: 2
    • Part No: 22100016
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • Washer
    • Ref No: 3
    • Part No: 22700041
    • Qty Req: 6
    Our price: $1.26 List price: $1.56
  • Pipe Plug
    • Ref No: 4
    • Part No: 24060020
    • Qty Req: 4
    Our price: $10.15 List price: $12.53
  • Pump Casing
    • Ref No: 5
    • Part No: 07009000P
    • Qty Req: 1
    Our price: $54.90 List price: $67.78
  • Impeller Nut
    • Ref No: 6
    • Part No: 22500052
    • Qty Req: 1
    Our price: $1.92 List price: $2.37
  • Jam Nut
    • Ref No: 7
    • Part No: 22500051
    • Qty Req: 1
    Our price: $2.49 List price: $3.07
  • Gasket (Viton)
    • Ref No: 8
    • Part No: 17000097
    • Qty Req: 1
    Our price: $9.04 List price: $11.16
  • Washer
    • Ref No: 9
    • Part No: 22700057
    • Qty Req: 1
    Our price: $2.69 List price: $3.32
  • Impeller, Poly (9203S, 9302S & 9303P)
    • Ref No: 10
    • Part No: 04029100P
    • Qty Req: 1
    Our price: $64.61 List price: $79.76
  • Gasket
    • Ref No: 11
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.74 List price: $7.09
  • Mechanical Seal (Stainless Series)
    • Ref No: NA
    • Part No: 21200039
    • Qty Req: 0
    Our price: $111.20 List price: $139.00
  • Mechanical Seal (Silicon Carbide) (Opt.)
    • Ref No: 12
    • Part No: 34300593
    • Qty Req: 1
    Our price: $293.13 List price: $361.89
  • O-Ring
    • Ref No: 13
    • Part No: 17210083
    • Qty Req: 1
    Our price: $19.77 List price: $24.41
  • Cover
    • Ref No: 14
    • Part No: 07509300P
    • Qty Req: 1
    Our price: $24.42 List price: $30.15
  • Screw
    • Ref No: 15
    • Part No: 22100088
    • Qty Req: 1
    Our price: $1.26 List price: $1.56
  • Intermediate Flange
    • Ref No: 16
    • Part No: 07509006C
    • Qty Req: 1
    Our price: $236.92 List price: $292.49
  • Base Plate
    • Ref No: 17
    • Part No: 15100063
    • Qty Req: 1
    Our price: $42.60 List price: $52.59
  • Hex Nut
    • Ref No: 18
    • Part No: 22500008
    • Qty Req: 2
    Our price: $1.94 List price: $2.40
  • Slinger Seal
    • Ref No: 19
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.53 List price: $1.89
  • Snap Ring
    • Ref No: 20
    • Part No: 18100014
    • Qty Req: 1
    Our price: $1.26 List price: $1.56
  • Retainer Ring
    • Ref No: 21
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • Ball Bearing for Hypro Pumps
    • Ref No: 22
    • Part No: 20000010
    • Qty Req: 1
    Our price: $12.57 List price: $15.52
  • Thrust Bearing Assembly
    • Ref No: 27
    • Part No: 20290014
    • Qty Req: 1
    Our price: $36.51 List price: $45.07
  • Woodruff Key (All Except HM3C)
    • Ref No: 28
    • Part No: 16100042
    • Qty Req: 1
    Our price: $7.61 List price: $9.40
  • Snap Ring
    • Ref No: 30
    • Part No: 18100026
    • Qty Req: 1
    Our price: $1.28 List price: $1.58
  • Roll Pin (HM2C & HM4C Models)
    • Ref No: 31
    • Part No: 16100032
    • Qty Req: 1
    Our price: $9.32 List price: $11.50
  • Hex Head Cap Screw
    • Ref No: 33
    • Part No: 22100021
    • Qty Req: 4
    Our price: $1.14 List price: $1.41
  • O-Ring
    • Ref No: 34
    • Part No: 17200110
    • Qty Req: 2
    Our price: $1.47 List price: $1.81
  • Dowel Pin (HM2C & HM4C Models)
    • Ref No: 35
    • Part No: 16000045
    • Qty Req: 1
    Our price: $17.21 List price: $21.25
  • Dowel Pin (HM2C & HM4C Models)
    • Ref No: 36
    • Part No: 16000042
    • Qty Req: 1
    Our price: $17.21 List price: $21.25
  • Gerotor (HM4C Models)
    • Ref No: 37
    • Part No: 39000025
    • Qty Req: 1
    Our price: $221.29 List price: $273.20
  • Gerotor Housing 5/16" Wide (HM4C Model)
    • Ref No: 38
    • Part No: 07032500C1
    • Qty Req: 1
    Our price: $139.03 List price: $171.64
  • Motor End Plate, Includes Needle Bearing
    • Ref No: 39
    • Part No: 02542500C2
    • Qty Req: 1
    Our price: $168.01 List price: $207.42
  • Washer
    • Ref No: 40
    • Part No: 22700039
    • Qty Req: 4
    Our price: $1.22 List price: $1.50
  • Cap Screw (HM2C & HM4C Models)
    • Ref No: 41
    • Part No: 22200045
    • Qty Req: 4
    Our price: $1.73 List price: $2.14
  • Tank Port Adapter (Includes O-Ring)
    • Ref No: 44
    • Part No: 33200051A
    • Qty Req: 1
    Our price: $50.40 List price: $62.22
  • Gasket
    • Ref No: 47
    • Part No: 17000047
    • Qty Req: 1
    Our price: $4.98 List price: $6.15
  • Washer
    • Ref No: 48
    • Part No: 22700027
    • Qty Req: 1
    Our price: $2.15 List price: $2.66
