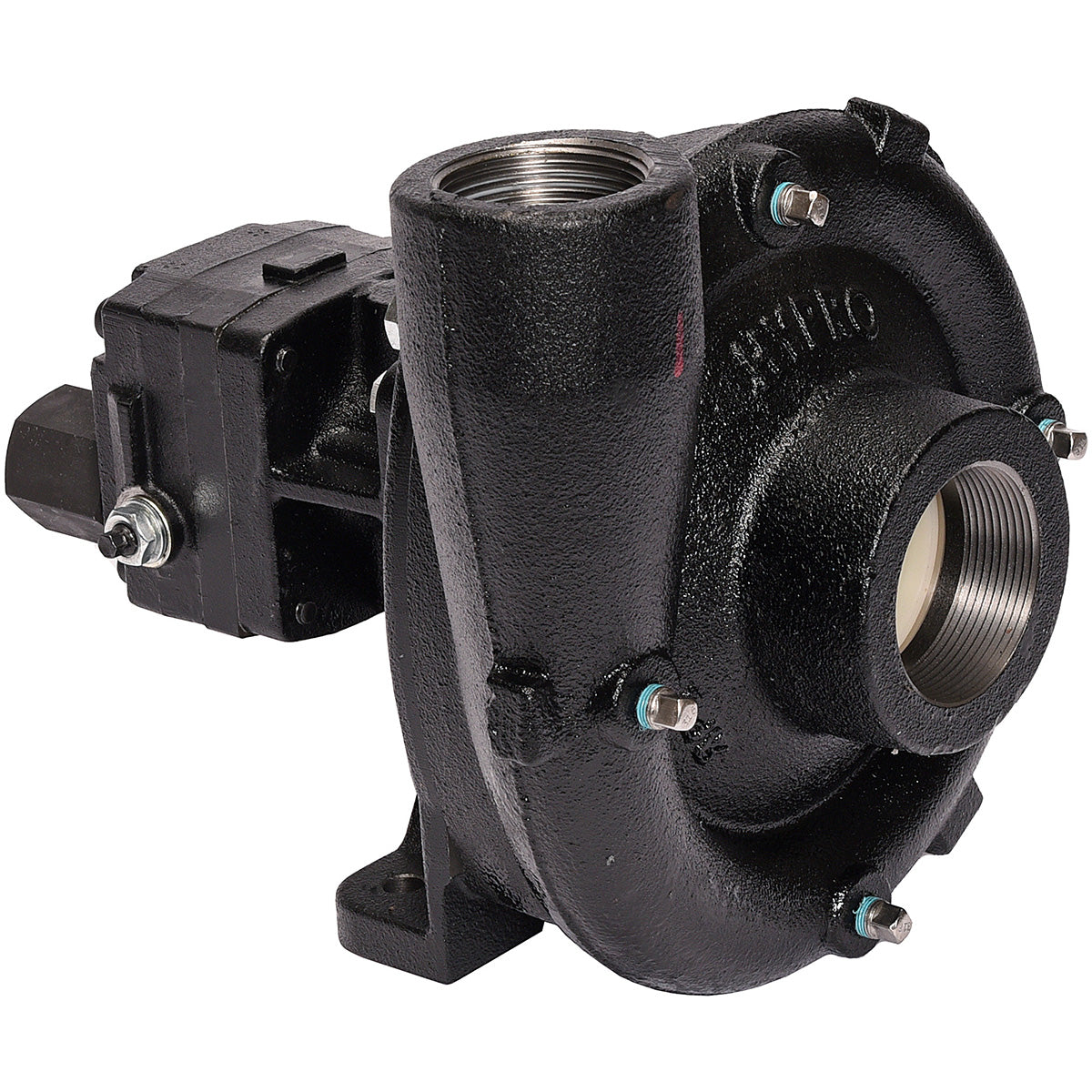

Hypro continues its tradition of making products precision-tooled for many different spraying systems with its 9306C-HM1C Centrifugal Pump. Rated with a maximum pressure of 130 PSI and a flow of 207 GPM, it's ideal for many agricultural and industrial spraying jobs. Use it to deliver water, insecticide, liquid fertilizer, emulsives and wettable powders. This product can be mounted on a tractor or sprayer and features durable constructions of cast iron and stainless steel.

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Hypro Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle's hydraulic system and freeing the PTO for other uses. The Hypro close-coupled" design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications. The series includes models 9306C-HM1C, 9306S-HM1C, 9306C-HM3C, 9306S-HM3C, 9306C-HM5C, and 9306S-HM5C.

Download Product Manual

• Max flow: 207 gpm
• Max pressure: 130 psi
• Port sizes: 2" FNPT inlet, 1-1/2" FNPT outlet
• Housing: Cast iron
• Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
• Impeller: Nylon
• Hydraulic system: Open/Closed, Max 13 gpm
• Hydraulic motor ports: 1/2" NPT inlet, 3/4" NPT outlet
• Hydraulic motor seal: Double-lip Teflon®
• Max fluid temperature: 140°F
• Weight: 33 lbs
