Hypro 9307CWS-GM12 Centrifugal Pump

Hypro 9307CWS-GM12 Centrifugal Pump

Brand:
Hypro
Weight:
87.0 lb
Item #
9307CWSGM12
1 1

Hypro 9307CWS-GM12 Centrifugal Pump

Hypro 9307CWS-GM12 Centrifugal Pump

Brand:
Hypro
Weight:
87.0 lb
Item #
9307CWSGM12

$5,189.66
$5,189.66 List Price: $9,435.74

Earn 15,569 points with this purchase.

See Details

View full details

Product Overview

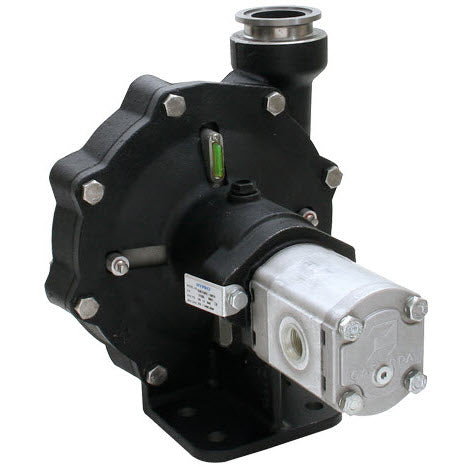

Hypro 9307CWS-GM12 Centrifugal Pump

Cast Iron, Hydraulically Driven with ForceField Technology.

370 gpm, 135 psi. Max Hydraulic 23 gpm. For Open/Closed Systems.  316 Stainless Steel Impeller.

300 Universal Flange Inlet x 220 Universal Flange Outlet.

NEW ForceField seal technology:

    Resources

    Download Product Manual

    Parts breakdown

    Diagram

    Diagram parts

    Parts list

    • Pump Casing (Universal Flange)
      • Ref No: 1
      • Part No: 01519300C
      • Qty Req: 1
      Our price: $1,967.32 List price: $2,428.79
    • Pipe Plug
      • Ref No: 2
      • Part No: 24060039
      • Qty Req: 4
      Our price: $53.88 List price: $66.52
    • Acorn Nut
      • Ref No: 3
      • Part No: 22530010
      • Qty Req: 1
      Our price: $50.12 List price: $61.88
    • Washer
      • Ref No: 4
      • Part No: 22700094
      • Qty Req: 1
      Our price: $12.00 List price: $14.82
    • Impeller
      • Ref No: 5
      • Part No: 04019307S
      • Qty Req: 1
      Our price: $1,198.01 List price: $1,479.02
    • Key
      • Ref No: 6
      • Part No: 16100058
      • Qty Req: 1
      Our price: $11.75 List price: $14.51
    • Drain Plug
      • Ref No: 13
      • Part No: 24060016
      • Qty Req: 2
      Our price: $10.15 List price: $12.53
    • O-Ring
      • Ref No: 14
      • Part No: 23358
      • Qty Req: 1
      Our price: $3.81 List price: $4.70
    • Shaft Assembly
      • Ref No: 17
      • Part No: 05029307
      • Qty Req: 1
      Our price: $386.98 List price: $477.75
    • Retaining Ring
      • Ref No: 18
      • Part No: 18200040
      • Qty Req: 1
      Our price: $31.25 List price: $38.58
    • Bearing
      • Ref No: 19
      • Part No: 20050006
      • Qty Req: 1
      Our price: $157.56 List price: $194.52
    • Pedestal
      • Ref No: 20
      • Part No: 07579300C
      • Qty Req: 1
      Our price: $985.96 List price: $1,217.24
    • Bolt
      • Ref No: 21
      • Part No: 22100131
      • Qty Req: 8
      Our price: $5.74 List price: $7.09
    • O-Ring
      • Ref No: 22
      • Part No: 17200209
      • Qty Req: 1
      Our price: $1.12 List price: $1.38
    • Plug, 5/8" Black Poly
      • Ref No: 23
      • Part No: 23000040
      • Qty Req: 1
      Our price: $3.26 List price: $4.03
    • Retainer Ring
      • Ref No: 24
      • Part No: 18100001
      • Qty Req: 2
      Our price: $2.02 List price: $2.49
    • Tone Wheel
      • Ref No: 25
      • Part No: 14200031
      • Qty Req: 1
      Our price: $157.56 List price: $194.52
    • Bearing
      • Ref No: 27
      • Part No: 20070063
      • Qty Req: 1
      Our price: $54.45 List price: $67.22
    • Hydraulic Motor
      • Ref No: 28
      • Part No: 25000286
      • Qty Req: 1
      Our price: $1,875.52 List price: $3,410.04
    • Hex Head Capscrew
      • Ref No: 29
      • Part No: 22100026
      • Qty Req: 2
      Our price: $1.18 List price: $1.46
