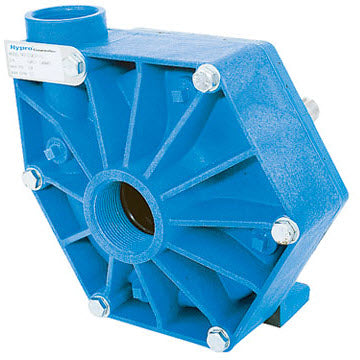

Hypro 9500P-S Centrifugal Pump (Replaced by 9203P-SR)

Hypro 9500P-S Centrifugal Pump (Replaced by 9203P-SR)

Brand:
Hypro
Weight:
14.0 lb
Item #
9500PS
1 1

Hypro 9500P-S Centrifugal Pump (Replaced by 9203P-SR)

Hypro 9500P-S Centrifugal Pump (Replaced by 9203P-SR)

Brand:
Hypro
Weight:
14.0 lb
Item #
9500PS

$596.91
$596.91 List Price: $1,085.29

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,791 points with this purchase.

See Details

View full details

Product Overview

Hypro 9500P-S Centrifugal Pump (Replaced by 9203P-SR). CW Rotation for Gas Engine Drive.

100 gpm, 82 psi.

1-1/2" NPT Inlet, 1-1/4" NPT Outlet. 7/8" Solid, 316 Stainless Steel Shaft. CW Rotation.

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids.

The broad, versatile line includes models with rugged housings of polypropylene that stand up to strong chemical herbicides. Polypropylene pumps are lightweight and provide excellent resistance to corrosive chemicals.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing
    • Ref No: 1A
    • Part No: 07019500P
    • Qty Req: 1
    Our price: $60.54 List price: $74.74
  • Impeller (Polypropylene)
    • Ref No: 2A
    • Part No: 04029000P
    • Qty Req: 1
    Our price: $92.11 List price: $113.72
  • Gasket
    • Ref No: 3
    • Part No: 17000101
    • Qty Req: 1
    Our price: $6.83 List price: $8.43
  • 3430-0333 Seal & O-Ring Repair Kit Hypro Poly Centrifugal Pumps
    • Ref No: 4
    • Part No: 34300333
    • Qty Req: 1
    Our price: $88.63 List price: $109.42
  • O-Ring
    • Ref No: 5
    • Part No: 17210083
    • Qty Req: 1
    Our price: $19.77 List price: $24.41
  • Back Cover
    • Ref No: 6A
    • Part No: 07009500P
    • Qty Req: 1
    Our price: $25.18 List price: $31.09
  • Slinger Ring
    • Ref No: 7
    • Part No: 14100083
    • Qty Req: 1
    Our price: $2.34 List price: $2.89
  • Flange
    • Ref No: 8
    • Part No: 07029200C
    • Qty Req: 1
    Our price: $300.08 List price: $370.47
  • Main Bearing - Hypro Pumps
    • Ref No: 9
    • Part No: 20080001
    • Qty Req: 2
    Our price: $18.61 List price: $22.98
  • Woodruff Key (Stainless Steel)
    • Ref No: 10
    • Part No: 04432SHW
    • Qty Req: 1
    Our price: $6.59 List price: $8.14
  • Pump Shaft
    • Ref No: 11
    • Part No: 05079200
    • Qty Req: 1
    Our price: $356.85 List price: $440.56
  • Retaining Ring (housing)
    • Ref No: 12
    • Part No: 18200025
    • Qty Req: 1
    Our price: $4.70 List price: $5.80
  • Key
    • Ref No: 13
    • Part No: 16100004
    • Qty Req: 1
    Our price: $2.08 List price: $2.57
  • Drain Plug
    • Ref No: 15
    • Part No: 24060016
    • Qty Req: 4
    Our price: $10.15 List price: $12.53
  • Hex Head Cap Screw
    • Ref No: 16
    • Part No: 22100087
    • Qty Req: 6
    Our price: $1.47 List price: $1.81
  • Washer
    • Ref No: 17
    • Part No: 22700041
    • Qty Req: 6
    Our price: $1.26 List price: $1.56
  • Jam Nut
    • Ref No: 18
    • Part No: 22500051
    • Qty Req: 1
    Our price: $2.49 List price: $3.07
  • Washer
    • Ref No: 19
    • Part No: 22700057
    • Qty Req: 1
    Our price: $2.69 List price: $3.32
  • Gasket (Viton)
    • Ref No: 20
    • Part No: 17000097
    • Qty Req: 1
    Our price: $9.04 List price: $11.16
  • Impeller Nut
    • Ref No: 21
    • Part No: 22500052
    • Qty Req: 1
    Our price: $1.92 List price: $2.37
  • Screw
    • Ref No: 22
    • Part No: 22100088
    • Qty Req: 1
    Our price: $1.26 List price: $1.56
