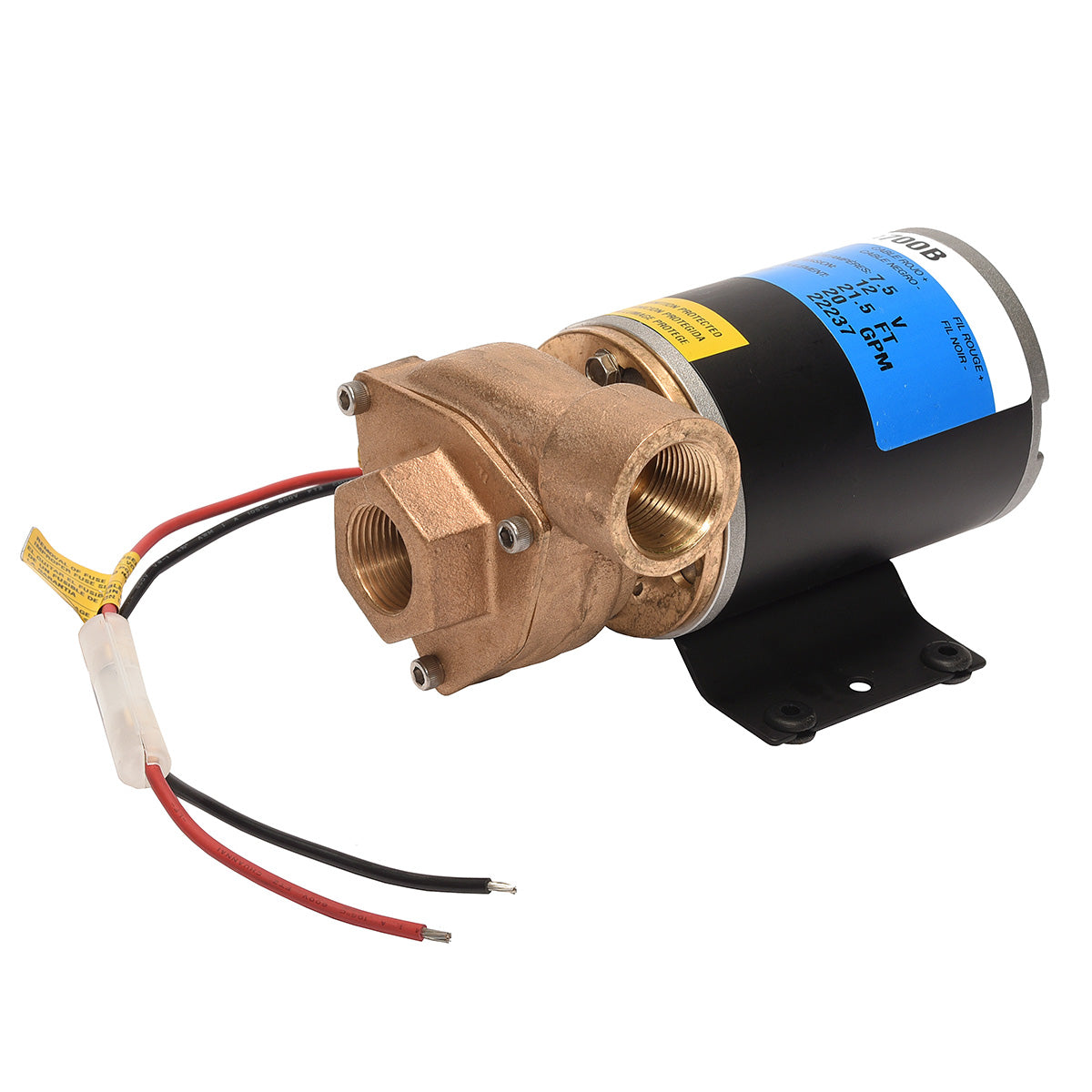

Hypro 9700B (Bronze) Aqua-Tiger 12V Pump

Hypro 9700B (Bronze) Aqua-Tiger 12V Pump

Brand:
Hypro
Weight:
6.0 lb
Item #
9700B
2 reviews
1 1

Hypro 9700B (Bronze) Aqua-Tiger 12V Pump

Hypro 9700B (Bronze) Aqua-Tiger 12V Pump

Brand:
Hypro
Weight:
6.0 lb
Item #
9700B
2 reviews

$324.01
$324.01 List Price: $589.11

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 972 points with this purchase.

See Details

View full details

Product Overview

The Hypro 9700B (Bronze) Aqua-Tiger 12V Pump is a reliable pump that can be used to fill or circulate a livewell and in similar situations. The pump may have to be attached to hoses if it is going to fill the livewell area. Once the Aqua-Tiger is in place, it should need little maintenance. Because of its convenience, this product can be used in a variety of applications, such as industrial or agricultural.

Manufacturer description

The Aqua-Tiger is suitable for general pumping applications where a flooded intake is provided. Typical applications include livewell filling and circulation and any other application not requiring a self-priming pump.

Resources

Download Product Manual

Features

  • Max flow: 19 gpm
  • Max pressure: 7 psi
  • Voltage: 12 VDC
  • Housing: Bronze
  • Impeller: Bronze
  • Seal: Viton¨
  • Max Draw: 11 amps
  • Port size: 3/4" FNPT
  • Weight: 5 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cover Screw
    • Ref No: 1
    • Part No: 22100124
    • Qty Req: 3
    Our price: $0.73 List price: $0.90
  • Cover
    • Ref No: 2
    • Part No: 19893
    • Qty Req: 1
    Our price: $43.94 List price: $54.25
  • O-Ring (Viton)
    • Ref No: 3
    • Part No: 19898SHU
    • Qty Req: 1
    Our price: $31.80 List price: $39.75
  • Impeller
    • Ref No: 4
    • Part No: 19892
    • Qty Req: 1
    Our price: $47.58 List price: $58.75
  • Pipe Plug
    • Ref No: 6
    • Part No: 00336
    • Qty Req: 1
    Our price: $2.51 List price: $3.10
  • Hex Head Screw
    • Ref No: 7
    • Part No: 22100123
    • Qty Req: 2
    Our price: $0.97 List price: $1.20
  • Housing
    • Ref No: 8
    • Part No: 19891
    • Qty Req: 1
    Our price: $115.62 List price: $142.75
  • Lip Seal (Viton)
    • Ref No: 9
    • Part No: 19928SHU
    • Qty Req: 1
    Our price: $31.40 List price: $39.25
  • Grommet
    • Ref No: 10
    • Part No: 21138
    • Qty Req: 4
    Our price: $0.97 List price: $1.20
  • Motor 12VDC (TENV)
    • Ref No: 11
    • Part No: 23697SSHU
    • Qty Req: 1
    Our price: $392.00 List price: $490.00
  • Set Screw
    • Ref No: 12
    • Part No: 19929
    • Qty Req: 1
    Our price: $1.32 List price: $1.45
