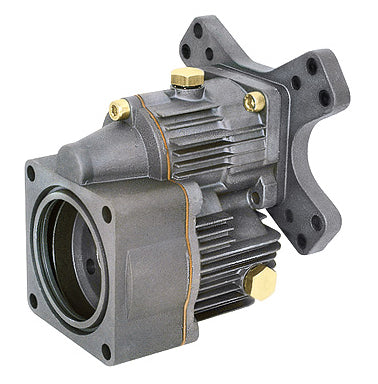

Hypro 9910KIT1642 Gear Box

Hypro 9910KIT1642 Gear Box

Brand:
Hypro
Weight:
8.32 lb
Item #
9910KIT1642
1 1

Hypro 9910KIT1642 Gear Box

Hypro 9910KIT1642 Gear Box

Brand:
Hypro
Weight:
8.32 lb
Item #
9910KIT1642

$451.14
$451.14 List Price: $960.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,353 points with this purchase.

See Details

View full details

Product Overview

The Hypro 9910KIT1642 Gear Box is the ideal component requiring little maintenance and providng the smooth operation of sprayer pumps. The design optimizes the performance of most medium- to large-size sprayers for a variety of applications. This gearbox supports a wide spectrum of pressures and flows for suspensions and slurries useful for standard eight to 18 HP gas engines with one-inch shafts.

Manufacturer description

6:1 gear box for standard 8 to 18 hp gas engine with 1" shaft. Fits pump models 9910-D50, 9910-D503, 9910-D813, 9910-D1064 and 9910-D1265.

Resources

Download Product Manual

Features

  • Fits pump models: 9910-D50, D503, D813, D1064 & D1265
  • Gear ratio: 6 to 1
  • Engine Size: 8-18 hp with 1" solid keyed shaft
  • Weight: 8.5 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • O-Ring
    • Ref No: 1
    • Part No: 9910620561
    • Qty Req: 1
    Our price: $6.83 List price: $8.43
  • Bolt
    • Ref No: 2
    • Part No: 9910180030
    • Qty Req: 1
    Our price: $1.89 List price: $2.33
  • Pump Adapter Flange
    • Ref No: 3
    • Part No: 9910621000
    • Qty Req: 1
    Our price: $208.79 List price: $257.77
  • Bearing
    • Ref No: 4
    • Part No: 9910620990
    • Qty Req: 1
    Our price: $89.12 List price: $110.03
  • Gear
    • Ref No: 5
    • Part No: 9910651620
    • Qty Req: 1
    Our price: $236.07 List price: $291.45
  • Lockwasher
    • Ref No: 6
    • Part No: 9910200231
    • Qty Req: 6
    Our price: $1.75 List price: $2.16
  • Bolt
    • Ref No: 7
    • Part No: 9910160671
    • Qty Req: 3
    Our price: $4.07 List price: $5.03
  • Allen Bolt
    • Ref No: 7
    • Part No: 9910620470
    • Qty Req: 3
    Our price: $2.48 List price: $3.06
  • Gearbox Body
    • Ref No: 8
    • Part No: 9910620960
    • Qty Req: 1
    Our price: $197.00 List price: $243.21
  • Oil drain plug
    • Ref No: 9
    • Part No: 24060023
    • Qty Req: 3
    Our price: $11.32 List price: $13.97
  • O-Ring
    • Ref No: 10
    • Part No: 9910740290
    • Qty Req: 3
    Our price: $1.92 List price: $2.37
  • Bolt
    • Ref No: 11
    • Part No: 9910540290
    • Qty Req: 4
    Our price: $2.98 List price: $3.68
  • Bolt
    • Ref No: 12
    • Part No: 9910621010
    • Qty Req: 4
    Our price: $6.05 List price: $7.47
  • Vent Plug
    • Ref No: 13
    • Part No: 99101140370
    • Qty Req: 1
    Our price: $13.37 List price: $16.50
  • Pinion Gear
    • Ref No: 14
    • Part No: 9910651610
    • Qty Req: 1
    Our price: $254.75 List price: $314.50
  • Retaining Ring (Ext.)
    • Ref No: 15
    • Part No: 9910320240
    • Qty Req: 2
    Our price: $3.43 List price: $4.23
  • Bearing
    • Ref No: 16
    • Part No: 9910961780
    • Qty Req: 1
    Our price: $75.50 List price: $93.21
  • Retaining Ring (Int.)
    • Ref No: 17
    • Part No: 9910961790
    • Qty Req: 1
    Our price: $5.87 List price: $7.25
  • Seal
    • Ref No: 18
    • Part No: 9910961800
    • Qty Req: 1
    Our price: $30.09 List price: $37.15
  • Bolt
    • Ref No: 19
    • Part No: 9910651000
    • Qty Req: 4
    Our price: $10.69 List price: $13.20
  • Bolt
    • Ref No: 20
    • Part No: 9910961900
    • Qty Req: 4
    Our price: $3.73 List price: $4.60
  • Adapter Flange
    • Ref No: 21
    • Part No: 99101320940
    • Qty Req: 1
    Our price: $117.62 List price: $145.21
  • Spacer
    • Ref No: 22
    • Part No: 9910961770
    • Qty Req: 4
    Our price: $12.58 List price: $15.53
  • Key
    • Ref No: 23
    • Part No: 9910650990
    • Qty Req: 1
    Our price: $13.41 List price: $16.56
  • Gasket
    • Ref No: 24
    • Part No: 9910620950
    • Qty Req: 1
    Our price: $3.39 List price: $4.18
  • Gasket
    • Ref No: 25
    • Part No: 9910650270
    • Qty Req: 1
    Our price: $3.17 List price: $3.91
  • Old Style Gear
    • Ref No: 27
    • Part No: 9910620980
    • Qty Req: 1
    Our price: $347.49 List price: $429.00
  • Pinion Gear
    • Ref No: 28
    • Part No: 9910650400
    • Qty Req: 1
    Our price: $251.60 List price: $314.50
