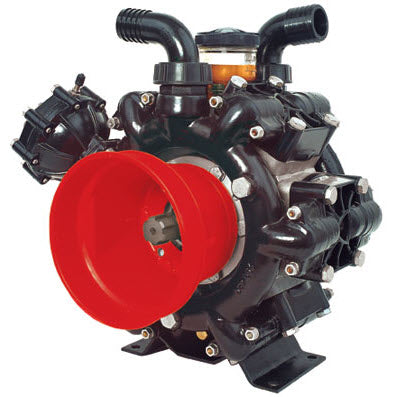

Hypro D250 Diaphragm Pump

Hypro D250 Diaphragm Pump

Brand:
Hypro
Weight:
92.0 lb
Item #
9910D250
Skip to product information
1 of 1

Hypro D250 Diaphragm Pump

Hypro D250 Diaphragm Pump

Brand:
Hypro
Weight:
92.0 lb
Item #
9910D250

Regular price $2,367.04
Sale price $2,367.04 Regular price List Price: $4,303.70

Earn 7,101 points with this purchase.

View full details

Collapsible content

Product Overview

With low-cost maintenance and operation that's low in wear and tear, this Hypro D250 Diaphragm Pump is a wise choice for your medium or large-sized sprayer assembly. It's tooled with a maximum flow rate of 66 GPM and an upper pressure limit of 290 PSI. That means it's ideal for medium-pressure spraying, especially for the deployment of liquid fertilizer, pesticide and herbicide.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

Manufacturer description

Hypro low pressure diaphragm pumps are recommended for ground and low-level spraying of herbicides, pesticides, liquid fertilizers and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of medium to large sized sprayers. Hypro low pressure diaphragm pumps can be adapted for splined shaft, hollow shaft, and solid shaft drive options. Pumps include a pulsation dampener.

Features

  • Max flow: 66 gpm
  • Max pressure: 290 psi
  • Shaft: Dual 1-3/8" 6 spline male PTO shaft
  • Port sizes: 2" HB inlet, 1-1/2" HB outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 6, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Mounting base: Included
  • Recommended control unit: 3300-0082 (remote mount)
  • Max fluid temperature: 140°F
  • Weight: 92 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bolt
    • Ref No: 1
    • Part No: 9910750071
    • Qty Req: 4
    Our price: $9.02 List price: $11.13
  • Base
    • Ref No: 2
    • Part No: 9910750200
    • Qty Req: 1
    Our price: $128.54 List price: $158.69
  • O-ring
    • Ref No: 3
    • Part No: 9910750740
    • Qty Req: 2
    Our price: $11.75 List price: $14.50
  • Suction Manifold Kit
    • Ref No: 4
    • Part No: 9910KIT2486
    • Qty Req: 1
    Our price: $503.82 List price: $622.00
  • Nut
    • Ref No: 5
    • Part No: 9910380242
    • Qty Req: 26
    Our price: $1.49 List price: $1.84
  • Head
    • Ref No: 6
    • Part No: 9910750100
    • Qty Req: 6
    Our price: $146.80 List price: $181.23
  • O-Ring
    • Ref No: 7
    • Part No: 9910680070
    • Qty Req: 12
    Our price: $4.23 List price: $5.22
  • Complete valve
    • Ref No: 8
    • Part No: 9910759051
    • Qty Req: 12
    Our price: $46.27 List price: $57.12
  • Retainer Ring
    • Ref No: 9
    • Part No: 9910200390
    • Qty Req: 2
    Our price: $11.95 List price: $14.75
  • Crankshaft
    • Ref No: 10
    • Part No: 9910750170
    • Qty Req: 1
    Our price: $681.07 List price: $840.83
  • Sleeve
    • Ref No: 11
    • Part No: 9910750110
    • Qty Req: 6
    Our price: $145.88 List price: $180.10
  • M12 X 65 Bolt
    • Ref No: 12
    • Part No: 9910750061
    • Qty Req: 20
    Our price: $8.59 List price: $10.61
  • Bolt
    • Ref No: 13
    • Part No: 9910680350
    • Qty Req: 2
    Our price: $2.48 List price: $3.06
  • O-Ring
    • Ref No: 14
    • Part No: 99101040060
    • Qty Req: 1
    Our price: $8.74 List price: $10.79
  • Black oil tank cap
    • Ref No: 15
    • Part No: 9910750057
    • Qty Req: 1
    Our price: $21.37 List price: $26.38
  • Oil reservoir
    • Ref No: 16
    • Part No: 9910750030
    • Qty Req: 1
    Our price: $54.88 List price: $67.75
  • Gasket
    • Ref No: 17
    • Part No: 9910750040
    • Qty Req: 1
    Our price: $1.69 List price: $2.09
  • Pump body
    • Ref No: 18
    • Part No: 9910750010
    • Qty Req: 1
    Our price: $730.62 List price: $902.00
  • O-Ring
    • Ref No: 19
    • Part No: 9910851360
    • Qty Req: 1
    Our price: $3.04 List price: $3.75
  • Shaft support
    • Ref No: 20
    • Part No: 9910680020
    • Qty Req: 1
    Our price: $180.72 List price: $223.11
  • Bolt
    • Ref No: 21
    • Part No: 9910160672
    • Qty Req: 6
    Our price: $3.04 List price: $3.75
  • Threaded
    • Ref No: 22
    • Part No: 9910751130
    • Qty Req: 1
    Our price: $22.07 List price: $27.25
  • O-ring
    • Ref No: 23
    • Part No: 9910751140
    • Qty Req: 1
    Our price: $12.25 List price: $15.12
  • O-Ring
    • Ref No: 23
    • Part No: 9910390290
    • Qty Req: 1
    Our price: $2.10 List price: $2.59
  • Ring nut
    • Ref No: 24
    • Part No: 9910750670
    • Qty Req: 1
    Our price: $13.66 List price: $16.87
  • Elbow 1-1/2"
    • Ref No: 25
    • Part No: 99103040160
    • Qty Req: 1
    Our price: $24.62 List price: $30.40
  • Diaphragm Desmopan (Standard)
    • Ref No: 26
    • Part No: 9910550085
    • Qty Req: 6
    Our price: $36.43 List price: $44.97
  • Diaphragm Buna (Optional)
    • Ref No: 26
    • Part No: 9910550080
    • Qty Req: 6
    Our price: $43.54 List price: $53.75
  • Piston Ring
    • Ref No: 27
    • Part No: 9910500260
    • Qty Req: 6
    Our price: $19.86 List price: $24.52
  • Piston
    • Ref No: 28
    • Part No: 9910750122
    • Qty Req: 6
    Our price: $85.25 List price: $105.25
  • Manifold
    • Ref No: 29
    • Part No: 9910751080
    • Qty Req: 1
    Our price: $506.34 List price: $625.11
  • Pin
    • Ref No: 30
    • Part No: 9910160700
    • Qty Req: 6
    Our price: $32.76 List price: $40.45
  • Retainer Ring
    • Ref No: 31
    • Part No: 9910160691
    • Qty Req: 2
    Our price: $2.72 List price: $3.36
  • Connecting Rod
    • Ref No: 32
    • Part No: 9910750140
    • Qty Req: 6
    Our price: $254.38 List price: $314.05
  • Roller bearing
    • Ref No: 33
    • Part No: 9910750090
    • Qty Req: 2
    Our price: $277.60 List price: $342.71
  • Connecting rod ring
    • Ref No: 34
    • Part No: 9910750130
    • Qty Req: 2
    Our price: $51.69 List price: $63.82
  • Spacer washer
    • Ref No: 35
    • Part No: 9910540040
    • Qty Req: 2
    Our price: $55.95 List price: $69.07
  • Bearing
    • Ref No: 36
    • Part No: 9910230350
    • Qty Req: 2
    Our price: $168.67 List price: $208.24
  • Seal Ring
    • Ref No: 37
    • Part No: 9910160740
    • Qty Req: 2
    Our price: $39.44 List price: $48.69
  • Washer
    • Ref No: 38
    • Part No: 9910380243
    • Qty Req: 26
    Our price: $1.49 List price: $1.84
  • Washer
    • Ref No: 39
    • Part No: 9910250143
    • Qty Req: 4
    Our price: $1.93 List price: $2.38
  • Bolt
    • Ref No: 40
    • Part No: 9910850251
    • Qty Req: 6
    Our price: $2.39 List price: $2.95
  • Shield, 199 mm
    • Ref No: 41
    • Part No: 99101500350
    • Qty Req: 2
    Our price: $52.50 List price: $64.82
  • Elbow 2"
    • Ref No: 42
    • Part No: 9910750850
    • Qty Req: 1
    Our price: $25.64 List price: $31.65
  • Ring nut
    • Ref No: 43
    • Part No: 9910750710
    • Qty Req: 1
    Our price: $21.60 List price: $26.67
  • Flange Plug
    • Ref No: 44
    • Part No: 99102420120
    • Qty Req: 1
    Our price: $60.04 List price: $74.12
  • O-Ring
    • Ref No: 45
    • Part No: 9910480440
    • Qty Req: 1
    Our price: $1.76 List price: $2.17
  • Accumulator Head
    • Ref No: 46
    • Part No: 9910620232
    • Qty Req: 1
    Our price: $53.91 List price: $66.55
  • Accumulator Diaphragm, Buna-N
    • Ref No: 47
    • Part No: 9910550190
    • Qty Req: 1
    Our price: $24.75 List price: $30.55
  • Accumulator body
    • Ref No: 48
    • Part No: 9910680180
    • Qty Req: 1
    Our price: $141.32 List price: $174.47
  • Bolt
    • Ref No: 49
    • Part No: 9910621781
    • Qty Req: 8
    Our price: $2.39 List price: $2.95
  • Plug
    • Ref No: 53
    • Part No: 9910330173
    • Qty Req: 2
    Our price: $7.59 List price: $9.37
  • O-ring
    • Ref No: 54
    • Part No: 9910650542
    • Qty Req: 1
    Our price: $1.97 List price: $2.43
  • Air Valve
    • Ref No: 55
    • Part No: 9910180020
    • Qty Req: 1
    Our price: $41.03 List price: $50.66
  • Elbow
    • Ref No: 56
    • Part No: 9910750370
    • Qty Req: 1
    Our price: $16.77 List price: $20.70
  • Oil drain plug
    • Ref No: 57
    • Part No: 9910880581
    • Qty Req: 1
    Our price: $5.03 List price: $6.21
  • Washer
    • Ref No: 58
    • Part No: 9910390314
    • Qty Req: 6
    Our price: $1.39 List price: $1.71
  • Diaphragm Bolt
    • Ref No: 59
    • Part No: 9910580360
    • Qty Req: 6
    Our price: $14.04 List price: $17.33
  • Plate
    • Ref No: 60
    • Part No: 9910580370
    • Qty Req: 6
    Our price: $11.37 List price: $14.04
  • Washer
    • Ref No: 63
    • Part No: 99102420290
    • Qty Req: 2
    Our price: $0.75 List price: $0.92
  • Bolt
    • Ref No: 64
    • Part No: 99102420280
    • Qty Req: 2
    Our price: $3.62 List price: $4.47
