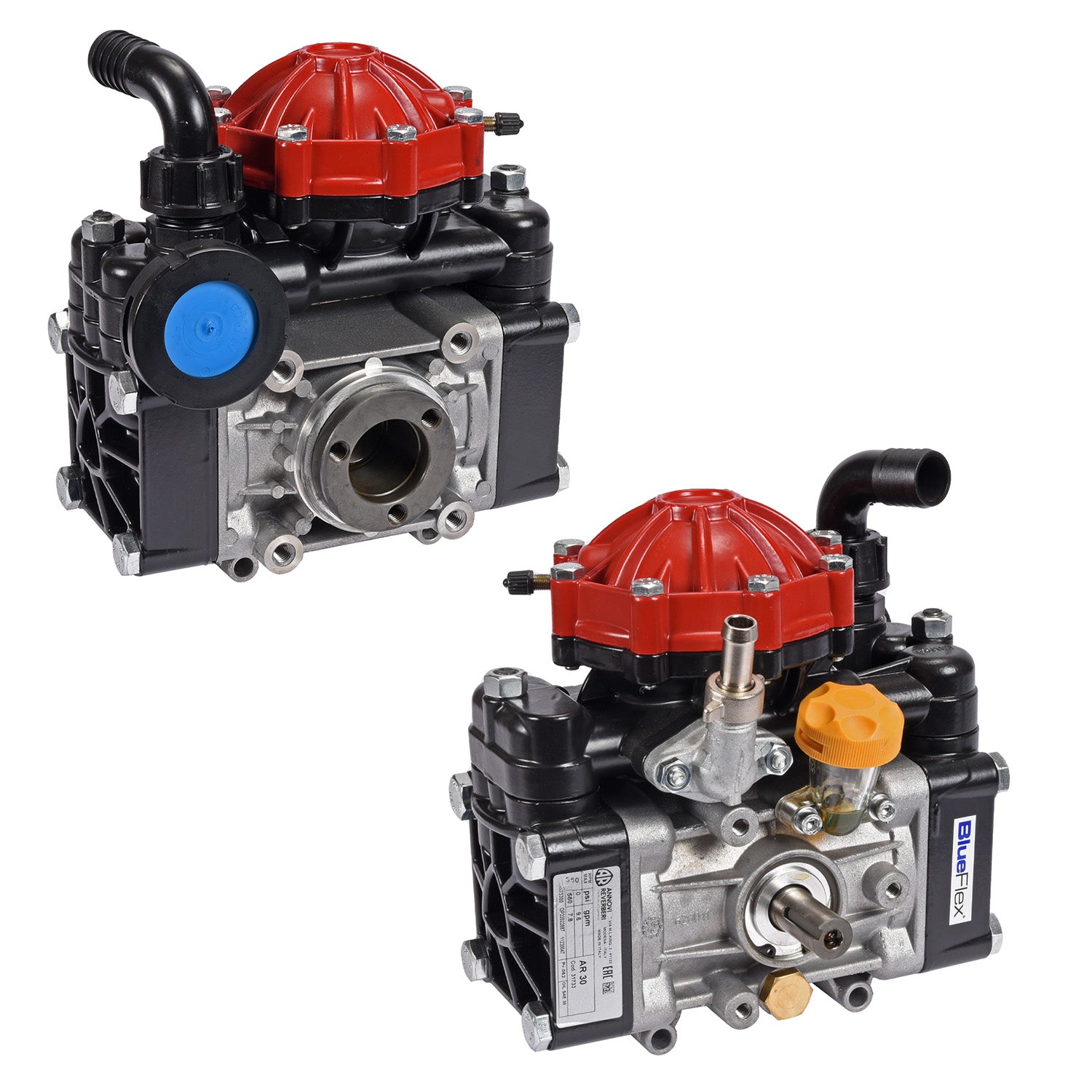

Hypro D30AP-A Diaphragm Pump

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps and related parts; however, the pumps and repair parts are still available and will now feature factory labeling.



Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Hypro medium pressure diaphragm pumps can be adapted for male 1-3/8" splined shaft, female 1-3/8" splined shaft, 1" solid shaft, or gear reduction drive options. See kits on page 2. Pumps include a pulsation dampener except for Models 9910-D303, D403, and D503.

• Max flow: 9.6 gpm
• Max pressure: 580 psi
• Port sizes: 1" HB Inlet. 1/2" HB outlet
• Max RPM: 550
• Max. fluid temperature: 140°F/60°C
• Shaft: Flanged w/ 3/4" shaft ext.
• Diaphragms: 2, semi-hydraulic BlueFlex, Desmopan® and Buna available
• Housing components for liquid handling: epoxy-coated
• Pump shaft rotation: CW and CCW.
• Recommended control unit: 9910-GS40GI
• Weight: 24 lbs.
