Hypro D30GRGI & Honda GX160 Engine Assembly

Hypro D30GRGI & Honda GX160 Engine Assembly

Brand:
Hypro
Weight:
82.0 lb
Item #
GXD30
16 reviews

Regular price $1,249.00
Sale price $1,249.00 Regular price List Price: $2,200.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,747 points with this purchase.

View full details

Collapsible content

Product Overview

For plenty of power and consistent liquid delivery, choose this Hypro D30GRGI & GX160 Engine Assy for your sprayer. Perfectly tooled to handle medium-pressure applications, it comes with a maximum pressure capacity of 580 PSI and an upper flow limit of 9.5 GPM. And with its impressive 5.5 horsepower Honda commercial-grade engine, you'll value it for sprayer applications of pesticide, herbicide and liquid fertilizer.

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

Manufacturer description

Hypro medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids. Pressure and output are designed for optimum performance of small to medium-sized sprayers. Honda's GX series engines are legendary for superior reliability and performance. And there's no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions without sacrificing power output or performance.

Features

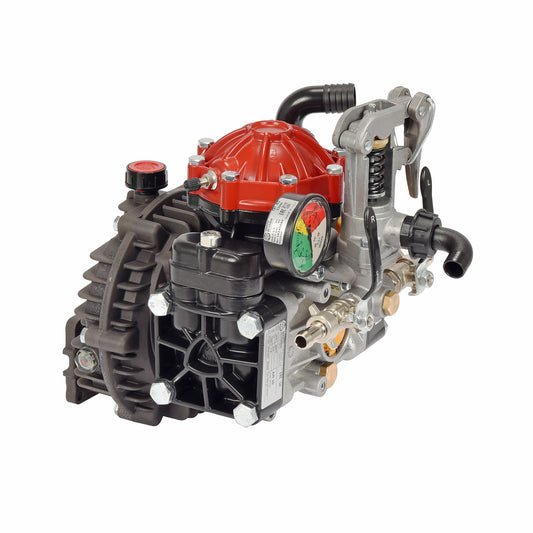

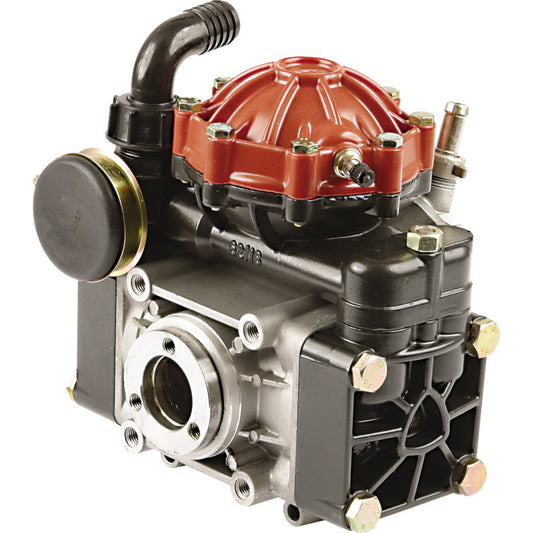

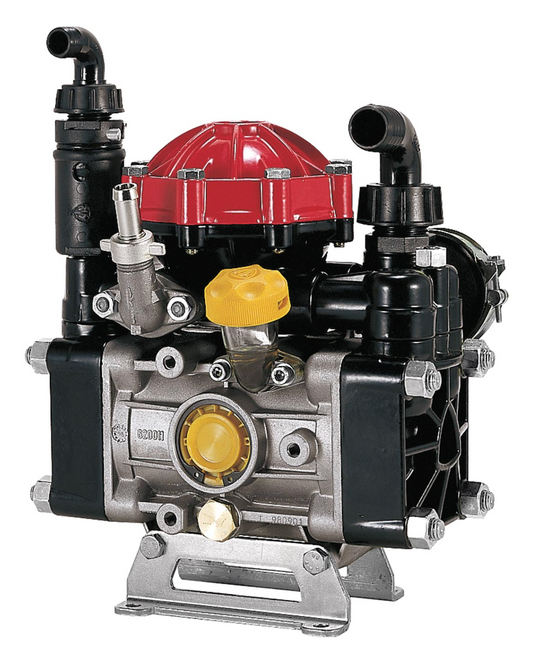

9910-D30GRGI:
  • Max flow: 9.5 gpm
  • Max pressure: 580 psi

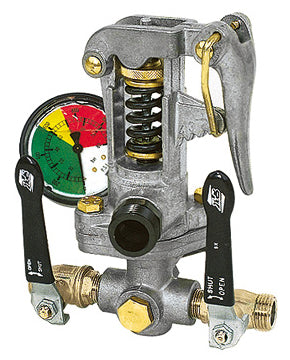

  • Includes 9910-GS40GI pressure regulator and 9910-KIT1640 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp gas engines
  • Port sizes: 1" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F

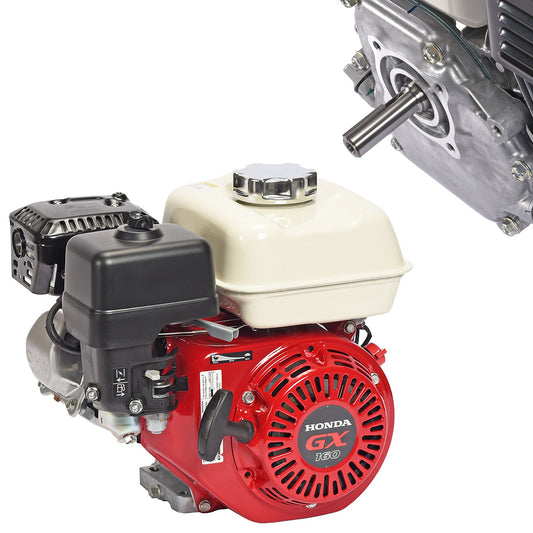

Honda GX160 Recoil Start Engine:
  • Engine type: Air-cooled 4-stroke OHV
  • Starting sytem: Recoil starter
  • Shaft: 3/4" solid keyed
  • Bore x stroke: 68 x 45 mm
  • Displacement: 163 cm3
  • Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
  • Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
  • PTO shaft rotation: Counterclockwise from PTO shaft side
  • Compression ratio: 9.0 : 1
  • Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
  • Carburetor: Butterfly
  • Ignition system: Transistorized magneto
  • Lubrication system: Splash
  • Governor system: Centrifugal mechanical
  • Air cleaner: Dual element
  • Oil capacity: 0.61 US qt. (0.58 L)
  • Fuel tank capacity: 3.3 US qts (3.1 liters)
  • Fuel: Unleaded 86 octane or higher
  • Dry weight 33 lbs (15.1 kg)
  • Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
  • Warranty: 3 year commercial warranty (limited to manufacturer defects)

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Body w/ Bolts
    • Ref No: 1
    • Part No: 9910629011
    • Qty Req: 1
    Our price: $284.46 List price: $351.19
  • Right Head Assembly (DX) D30
    • Ref No: 2
    • Part No: 9910620101
    • Qty Req: 1
    Our price: $123.21 List price: $152.11
  • Left Head Assembly (SX) D30
    • Ref No: 3
    • Part No: 9910620102
    • Qty Req: 1
    Our price: $139.50 List price: $172.22
  • Bolt 12 x 55
    • Ref No: 4
    • Part No: 9910621430
    • Qty Req: 8
    Our price: $3.22 List price: $3.97
  • Piston Diaphragm, Desmopan (Std.)
    • Ref No: 5
    • Part No: 9910620085
    • Qty Req: 2
    Our price: $34.19 List price: $42.21
  • Diaphragm, Buna-N (Opt.)
    • Ref No: 5
    • Part No: 9910620080
    • Qty Req: 2
    Our price: $31.54 List price: $38.94
  • Piston
    • Ref No: 6
    • Part No: 9910620120
    • Qty Req: 2
    Our price: $55.56 List price: $68.59
  • Connecting Rod
    • Ref No: 7
    • Part No: 9910620140
    • Qty Req: 2
    Our price: $52.20 List price: $64.44
  • Sleeve
    • Ref No: 8
    • Part No: 9910620110
    • Qty Req: 2
    Our price: $90.27 List price: $111.44
  • Connecting rod ring
    • Ref No: 9
    • Part No: 9910580470
    • Qty Req: 2
    Our price: $5.92 List price: $7.31
  • Connecting Rod Pin
    • Ref No: 10
    • Part No: 9910380300
    • Qty Req: 2
    Our price: $25.24 List price: $31.16
  • Ring Pin
    • Ref No: 11
    • Part No: 9910380080
    • Qty Req: 4
    Our price: $2.73 List price: $3.37
  • Piston Ring
    • Ref No: 12
    • Part No: 9910160230
    • Qty Req: 2
    Our price: $15.28 List price: $18.87
  • Retaining Washer
    • Ref No: 14
    • Part No: 99101040180
    • Qty Req: 2
    Our price: $18.78 List price: $23.18
  • Diaphragm Bolt
    • Ref No: 15
    • Part No: 9910580360
    • Qty Req: 2
    Our price: $14.04 List price: $17.33
  • Nut
    • Ref No: 16
    • Part No: 9910180150
    • Qty Req: 2
    Our price: $1.64 List price: $2.02
  • O-Ring
    • Ref No: 18
    • Part No: 9910620030
    • Qty Req: 4
    Our price: $1.97 List price: $2.43
  • Complete Valve Assembly
    • Ref No: 19
    • Part No: 99101409050
    • Qty Req: 4
    Our price: $28.70 List price: $35.43
  • Retaining Ring
    • Ref No: 20
    • Part No: 9910111120
    • Qty Req: 2
    Our price: $7.32 List price: $9.04
  • Cover
    • Ref No: 21
    • Part No: 9910620020
    • Qty Req: 1
    Our price: $7.59 List price: $9.37
  • O-Ring
    • Ref No: 22
    • Part No: 9910620210
    • Qty Req: 1
    Our price: $2.48 List price: $3.06
  • Retaining Ring
    • Ref No: 23
    • Part No: 9910620291
    • Qty Req: 1
    Our price: $7.13 List price: $8.80
  • Bearing
    • Ref No: 24
    • Part No: 9910620190
    • Qty Req: 1
    Our price: $135.07 List price: $225.12
  • Washer
    • Ref No: 26
    • Part No: 9910550331
    • Qty Req: 2
    Our price: $1.51 List price: $1.86
  • Oil Sight Glass for Hypro D30
    • Ref No: 29
    • Part No: 9910550030
    • Qty Req: 1
    Our price: $19.00 List price: $23.46
  • O-Ring
    • Ref No: 30
    • Part No: 9910550040
    • Qty Req: 1
    Our price: $1.76 List price: $2.17
  • Oil Sight Glass Cap
    • Ref No: 31
    • Part No: 9910550056
    • Qty Req: 1
    Our price: $11.52 List price: $14.22
  • Spacer
    • Ref No: 32
    • Part No: 9910620160
    • Qty Req: 1
    Our price: $5.35 List price: $6.61
  • Roller bearing
    • Ref No: 33
    • Part No: 9910550060
    • Qty Req: 1
    Our price: $64.27 List price: $79.34
  • Seal Ring
    • Ref No: 34
    • Part No: 9910620130
    • Qty Req: 1
    Our price: $24.41 List price: $30.14
  • Retainer Ring
    • Ref No: 35
    • Part No: 9910620330
    • Qty Req: 1
    Our price: $12.16 List price: $15.01
  • Crankshaft
    • Ref No: 36
    • Part No: 9910620170
    • Qty Req: 1
    Our price: $289.93 List price: $357.94
  • Suction Manifold
    • Ref No: 37
    • Part No: 9910620150
    • Qty Req: 1
    Our price: $95.66 List price: $118.10
  • Threaded Adapter
    • Ref No: 38
    • Part No: 9910550340
    • Qty Req: 1
    Our price: $8.74 List price: $10.79
  • O-Ring
    • Ref No: 39
    • Part No: 9910550350
    • Qty Req: 2
    Our price: $1.79 List price: $2.21
  • Ring Nut
    • Ref No: 40
    • Part No: 9910550242
    • Qty Req: 1
    Our price: $9.23 List price: $11.39
  • Hose Barb 1"
    • Ref No: 41
    • Part No: 9910550370
    • Qty Req: 1
    Our price: $13.20 List price: $16.30
  • O-Ring
    • Ref No: 42
    • Part No: 9910390060
    • Qty Req: 4
    Our price: $1.79 List price: $2.21
  • Bolt
    • Ref No: 44
    • Part No: 9910621780
    • Qty Req: 8
    Our price: $3.19 List price: $3.94
  • Upper Air Chamber
    • Ref No: 45
    • Part No: 9910629211
    • Qty Req: 1
    Our price: $87.11 List price: $107.54
  • Accumulator Diaphragm, Buna-N
    • Ref No: 46
    • Part No: 9910550190
    • Qty Req: 1
    Our price: $24.75 List price: $30.55
  • Lower Air Chamber Body
    • Ref No: 47
    • Part No: 9910622070
    • Qty Req: 1
    Our price: $224.29 List price: $276.90
  • O-ring
    • Ref No: 49
    • Part No: 9910650542
    • Qty Req: 1
    Our price: $1.97 List price: $2.43
  • Air Valve
    • Ref No: 50
    • Part No: 9910180020
    • Qty Req: 1
    Our price: $41.03 List price: $50.66
  • O-Ring
    • Ref No: 51
    • Part No: 9910390290
    • Qty Req: 1
    Our price: $2.10 List price: $2.59
  • Seal
    • Ref No: 58
    • Part No: 9910620630
    • Qty Req: 1
    Our price: $14.32 List price: $17.68
  • Cover
    • Ref No: 59
    • Part No: 9910620021
    • Qty Req: 1
    Our price: $56.38 List price: $69.60
  • Diaphragm Holder **No longer available, DO NOT ORDER, replaced by suction dampening kit- 659213.**
    • Ref No: 60
    • Part No: 9910650660
    • Qty Req: 1
    Our price: $34.90 List price: $32.21
  • Dampener Diaphragm, Buna AR30/50
    • Ref No: 61
    • Part No: 9910650670
    • Qty Req: 1
    Our price: $14.30 List price: $17.65
  • Clamp
    • Ref No: 62
    • Part No: 9910650690
    • Qty Req: 1
    Our price: $18.65 List price: $23.03
  • Oil drain plug
    • Ref No: 66
    • Part No: 24060023
    • Qty Req: 1
    Our price: $11.32 List price: $13.97
  • O-Ring
    • Ref No: 67
    • Part No: 9910740290
    • Qty Req: 1
    Our price: $1.92 List price: $2.37
  • Spacer
    • Ref No: 68
    • Part No: 9910620930
    • Qty Req: 1
    Our price: $3.10 List price: $3.83
  • Spacer
    • Ref No: 69
    • Part No: 9910620940
    • Qty Req: 1
    Our price: $2.95 List price: $3.64
  • Bearing
    • Ref No: 70
    • Part No: 9910380230
    • Qty Req: 1
    Our price: $52.65 List price: $65.00
  • Nut
    • Ref No: 74
    • Part No: 9910390270
    • Qty Req: 2
    Our price: $1.68 List price: $2.08
  • Discharge Flange Housing
    • Ref No: 75
    • Part No: 9910450145
    • Qty Req: 1
    Our price: $36.51 List price: $45.07
  • 1/2" Hose Barb & Nut
    • Ref No: 76
    • Part No: 9910110130
    • Qty Req: 1
    Our price: $15.09 List price: $18.63
