Product Overview

** We currently experiencing delays on some Hypro products, including this pump. Please contact customer service for current availability.**

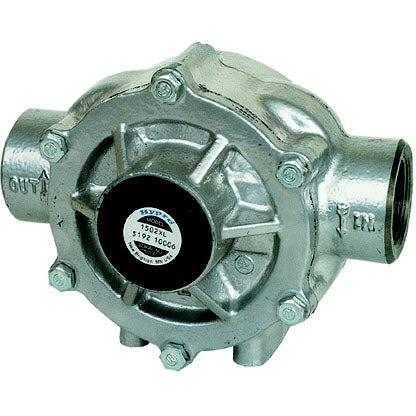

Hypro Roller Pump

Model: 1502XL

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids.

The economical rotary-action r

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Main Bearing - Hypro Pumps
    • Ref No: 2
    • Part No: 20080001
    • Qty Req: 2
    Our price: $18.61 List price: $22.98
  • Buna-N Seal (Optional)
    • Ref No: 3
    • Part No: 21120001
    • Qty Req: 2
    Our price: $18.77 List price: $23.17
  • Viton Seal (Std.)
    • Ref No: 3
    • Part No: 21120003
    • Qty Req: 2
    Our price: $20.53 List price: $25.35
  • Hex Head Capscrew
    • Ref No: 4
    • Part No: 22100026
    • Qty Req: 6
    Our price: $1.18 List price: $1.46
  • Endplate (SilverCast) with Seal
    • Ref No: 5
    • Part No: 02001500X
    • Qty Req: 1
    Our price: $603.16 List price: $744.64
  • O-Ring Gasket for Endplate
    • Ref No: 6
    • Part No: 17200003
    • Qty Req: 1
    Our price: $3.64 List price: $4.49
  • Rotor (SilverCast) w/ Shaft
    • Ref No: 7
    • Part No: 03001502X
    • Qty Req: 1
    Our price: $764.06 List price: $943.28
  • Shaft Only
    • Ref No: 8
    • Part No: 05001502
    • Qty Req: 1
    Our price: $78.20 List price: $96.54
  • Key
    • Ref No: 9
    • Part No: 16100005
    • Qty Req: 1
    Our price: $2.01 List price: $2.48
  • Set Screw
    • Ref No: 10
    • Part No: 22300018
    • Qty Req: 1
    Our price: $0.95 List price: $1.17
  • Set Screw (SilverCast Only)
    • Ref No: 10
    • Part No: 22300034
    • Qty Req: 1
    Our price: $7.08 List price: $8.74
  • Super Roller (Standard)
    • Ref No: 11
    • Part No: 10050005
    • Qty Req: 6
    Our price: $9.99 List price: $12.33
  • Polypropylene Roller
    • Ref No: 11
    • Part No: 10020005
    • Qty Req: 6
    Our price: $8.85 List price: $10.92
  • Body (SilverCast) with Seal
    • Ref No: 12
    • Part No: 01001500X
    • Qty Req: 1
    Our price: $1,341.94 List price: $1,656.72
  • Bearing Cover
    • Ref No: 14
    • Part No: 23000020
    • Qty Req: 1
    Our price: $1.82 List price: $2.25
  • Shaft Bearing Cover
    • Ref No: 15
    • Part No: 23000022
    • Qty Req: 1
    Our price: $1.82 List price: $2.25
