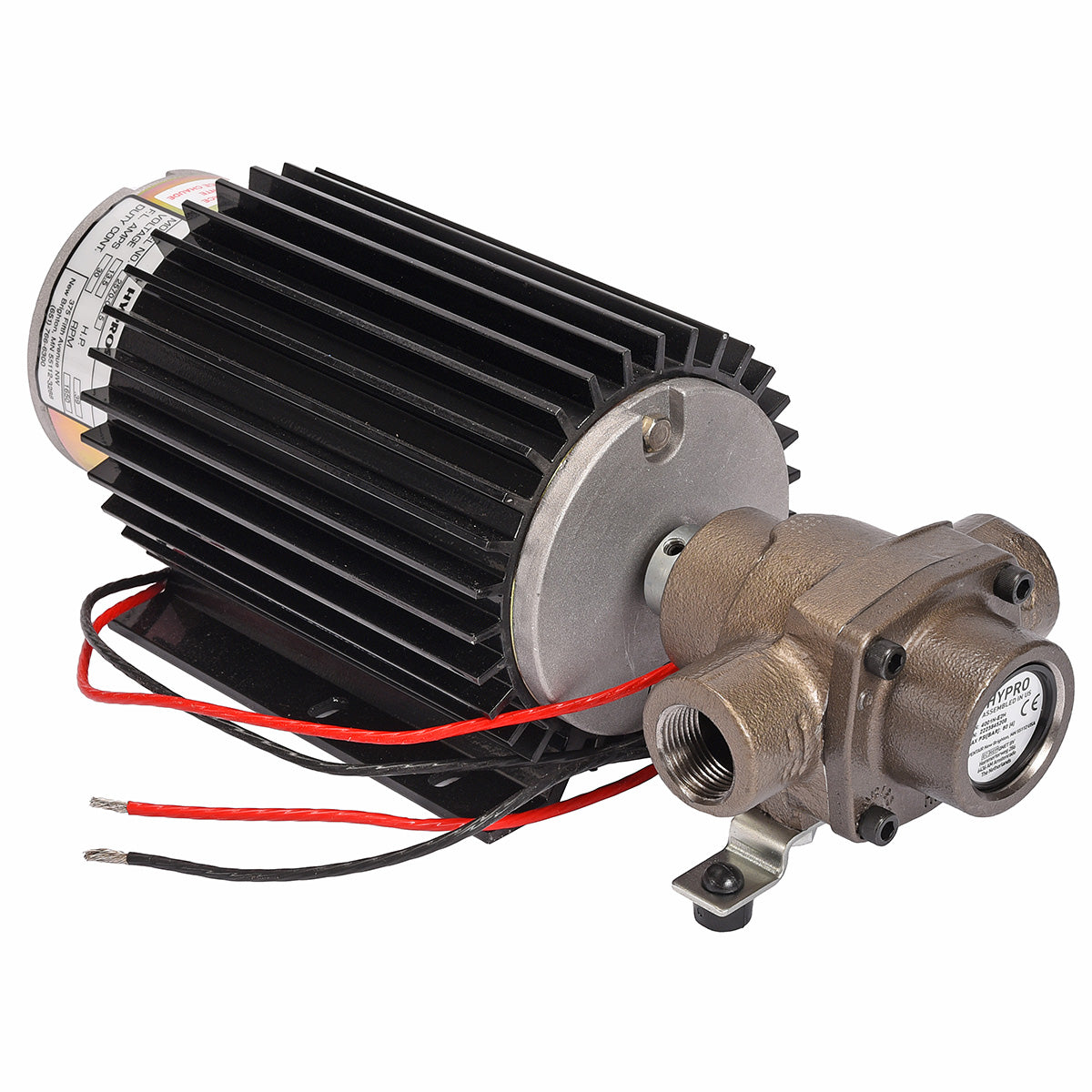

Name: Hypro Pump - 4101N-E2H (4101N-AE2H)
Brand: Hypro
SKU: 4101NE2H
Price: 762.23 USD
Availability: InStock

Hypro Pump - 4101N-E2H (4101N-AE2H)

Brand:

Hypro

Weight:

18.0 lb

Item #

4101NE2H

1 1

Hypro Pump - 4101N-E2H (4101N-AE2H)

Brand:

Hypro

Weight:

18.0 lb

Item #

4101NE2H

$762.23

$762.23 List Price: ~~$1,385.87~~

Product variants

Earn 2,287 points with this purchase.

See Details

View full details

Product Overview

Hypro Roller Pump

Model: 4101NE2H

The 4000 series, 4 roller, 12 volt pump achieves up to 10.4 gym (39.3 lpm) and 90 psi (6.2 bar). The series includes models 4001N-EH, 4001XL-EH, 4001XL-EH, 4101N-EH, 4101XL-EH, 4001N-E2H, 4001XL-E2H, 4101N-E2H and 4101XL-E2H

Features:

Max flow: 5.9 gpm
Max pressure: 90 psi
Max speed: 1900 rpm
Port sizes: 3/4" NPT FNPT Inlet/Outlet
Locking collar and torque arm
Viton® standard shaft seals
Pump direct coupled to a 12 volt DC motor
Also available in poly and PTFE for superior chemical

Resources

Download Product Manual

Parts breakdown

Diagram

Parts list

Body (Ni-Resist)
- Ref No: 1
- Part No: 01004101N
- Qty Req: 1
Our price: $255.25 List price: $315.12
Electric Motor (12 vdc, .39hp) (black)
- Ref No: 2
- Part No: 25700015
- Qty Req: 1
Our price: $506.35 List price: $843.92
Endplate (Ni-Resist) with Std. Seal
- Ref No: 3
- Part No: 02004101N
- Qty Req: 1
Our price: $98.56 List price: $121.68
Bearing Cover
- Ref No: 4
- Part No: 23000021
- Qty Req: 1
Our price: $1.82 List price: $2.25
Viton Seal (Std.)
- Ref No: 5
- Part No: 21070002
- Qty Req: 2
Our price: $12.95 List price: $15.99
Buna-N Seal (Optional)
- Ref No: 5
- Part No: 21020001
- Qty Req: 2
Our price: $30.62 List price: $37.80
Teflon® Coated Buna-N Seal (Optional)
- Ref No: 5
- Part No: 21020001T
- Qty Req: 2
Our price: $47.50 List price: $58.64
Endplate Screw
- Ref No: 6
- Part No: 22200018
- Qty Req: 4
Our price: $1.12 List price: $1.38
O-Ring Gasket for Endplate
- Ref No: 7
- Part No: 17200104
- Qty Req: 1
Our price: $1.18 List price: $1.46
Rotor Assembly (Hollow Shaft)
- Ref No: 8
- Part No: 34300781
- Qty Req: 1
Our price: $139.03 List price: $171.64
Super Rollers (Std.)
- Ref No: 9
- Part No: 10050002
- Qty Req: 4
Our price: $4.76 List price: $5.88
Polypropylene Rollers (Optional)
- Ref No: 9
- Part No: 10020002
- Qty Req: 4
Our price: $4.16 List price: $5.13
Teflon® Rollers (Optional)
- Ref No: 9
- Part No: 10550002
- Qty Req: 4
Our price: $30.79 List price: $38.01
Base
- Ref No: 10
- Part No: 15100054
- Qty Req: 1
Our price: $17.19 List price: $21.22
Lock Washer
- Ref No: 11
- Part No: 22600002
- Qty Req: 2
Our price: $1.18 List price: $1.46
Head Hex Cap Screw
- Ref No: 12
- Part No: 22100003
- Qty Req: 2
Our price: $1.20 List price: $1.48
Bumper
- Ref No: 13
- Part No: 14500003
- Qty Req: 2
Our price: $1.70 List price: $2.10
Ball Bearing for Hypro Pumps
- Ref No: 14
- Part No: 20000010
- Qty Req: 2
Our price: $12.57 List price: $15.52
Locking Collar
- Ref No: 15
- Part No: 14200001
- Qty Req: 1
Our price: $7.39 List price: $9.12
Set Screw
- Ref No: 16
- Part No: 22300001
- Qty Req: 1
Our price: $2.37 List price: $2.92
Hypro 4101N-H Roller Pump (Hollow Shaft)
- Ref No: sku:4101NH
- Part No: 4101NH
- Qty Req: 1
Our price: $327.60 List price: $595.64
