Hypro Pump - D160

Hypro Pump - D160

Brand:
Hypro
Weight:
66.0 lb
Item #
9910D160
1 review
1 1

Hypro Pump - D160

Hypro Pump - D160

Brand:
Hypro
Weight:
66.0 lb
Item #
9910D160
1 review

$1,942.80
$1,942.80 List Price: $3,368.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 5,828 points with this purchase.

See Details

View full details

Product Overview

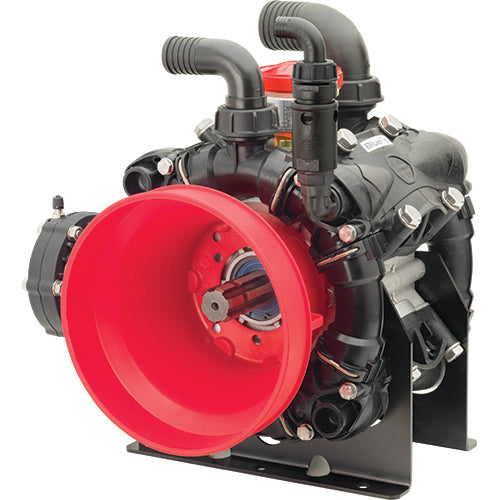

Hypro Diaphragm Pump

Model #: 9910-D160

Hypro low pressure diaphragm pumps are recommended for ground and low-level spraying of herbicides, pesticides, liquid fertilizers and many other hard-to-handle fluids.

Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of medium to large sized sprayers. Hypro low pressure diaphragm pumps can be adapted for splined shaft, hollow shaft, and solid shaft drive options. Pumps include a pulsation dampener.

Features:
  • Max flow: 42.5 gpm
  • Max pressure: 290 psi
  • Port sizes: 2" HB inlet, 1-1/2" HB outlet
  • 1-3/8" 6 Spline Male Thru-Shaft


Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts. Products with Hypro labeling will be unavailable soon.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Elbow 2"
    • Ref No: 1
    • Part No: 9910760020
    • Qty Req: 1
    Our price: $44.22 List price: $54.59
  • Ring Nut
    • Ref No: 2
    • Part No: 9910760040
    • Qty Req: 1
    Our price: $20.89 List price: $25.79
  • Threaded Adapter (No longer available, manifold has changed)
    • Ref No: 3
    • Part No: 9910760030
    • Qty Req: 1
    Our price: $26.53 List price: $32.75
  • O-Ring
    • Ref No: 4
    • Part No: 9910250310
    • Qty Req: 1
    Our price: $1.93 List price: $2.38
  • Suction Manifold
    • Ref No: 5
    • Part No: 9910760220
    • Qty Req: 1
    Our price: $762.21 List price: $941.00
  • Nut
    • Ref No: 6
    • Part No: 9910380242
    • Qty Req: 18
    Our price: $1.49 List price: $1.84
  • Head
    • Ref No: 7
    • Part No: 9910750100
    • Qty Req: 4
    Our price: $146.80 List price: $181.23
  • O-Ring
    • Ref No: 8
    • Part No: 9910680070
    • Qty Req: 8
    Our price: $4.23 List price: $5.22
  • Complete valve
    • Ref No: 9
    • Part No: 9910759051
    • Qty Req: 9
    Our price: $46.27 List price: $57.12
  • Bolt
    • Ref No: 10
    • Part No: 9910750071
    • Qty Req: 4
    Our price: $9.02 List price: $11.13
  • Oil drain plug
    • Ref No: 11
    • Part No: 24060023
    • Qty Req: 2
    Our price: $11.32 List price: $13.97
  • Sleeve
    • Ref No: 12
    • Part No: 9910750110
    • Qty Req: 4
    Our price: $145.88 List price: $180.10
  • M12 X 65 Bolt
    • Ref No: 13
    • Part No: 9910750061
    • Qty Req: 12
    Our price: $8.59 List price: $10.61
  • Bolt
    • Ref No: 14
    • Part No: 9910680350
    • Qty Req: 2
    Our price: $2.48 List price: $3.06
  • O-Ring
    • Ref No: 15
    • Part No: 99101040060
    • Qty Req: 1
    Our price: $8.74 List price: $10.79
  • Black oil tank cap
    • Ref No: 16
    • Part No: 9910750057
    • Qty Req: 1
    Our price: $21.37 List price: $26.38
  • Oil reservoir
    • Ref No: 17
    • Part No: 9910750030
    • Qty Req: 1
    Our price: $54.88 List price: $67.75
  • Gasket
    • Ref No: 18
    • Part No: 9910750040
    • Qty Req: 1
    Our price: $1.69 List price: $2.09
  • Pump body
    • Ref No: 19
    • Part No: 9910760010
    • Qty Req: 1
    Our price: $440.64 List price: $544.00
  • O-Ring
    • Ref No: 20
    • Part No: 9910851360
    • Qty Req: 1
    Our price: $3.04 List price: $3.75
  • Shaft support
    • Ref No: 21
    • Part No: 9910680020
    • Qty Req: 1
    Our price: $180.72 List price: $223.11
  • Bolt
    • Ref No: 22
    • Part No: 9910160672
    • Qty Req: 6
    Our price: $3.04 List price: $3.75
  • Threaded Adapter
    • Ref No: 23
    • Part No: 9910540530
    • Qty Req: 1
    Our price: $25.60 List price: $31.60
  • Ring Nut
    • Ref No: 25
    • Part No: 9910540540
    • Qty Req: 1
    Our price: $18.08 List price: $22.32
  • Elbow 1-1/2"
    • Ref No: 26
    • Part No: 9910540550
    • Qty Req: 1
    Our price: $29.71 List price: $36.68
  • Diaphragm Desmopan (Standard)
    • Ref No: 27
    • Part No: 9910550085
    • Qty Req: 4
    Our price: $36.43 List price: $44.97
  • Diaphragm Buna (Optional)
    • Ref No: 27
    • Part No: 9910550080
    • Qty Req: 4
    Our price: $43.54 List price: $53.75
  • Piston Ring
    • Ref No: 28
    • Part No: 9910500260
    • Qty Req: 28
    Our price: $19.86 List price: $24.52
  • Piston
    • Ref No: 29
    • Part No: 9910750122
    • Qty Req: 4
    Our price: $85.25 List price: $105.25
  • Manifold
    • Ref No: 30
    • Part No: 9910760070
    • Qty Req: 1
    Our price: $477.09 List price: $589.00
  • Pin
    • Ref No: 31
    • Part No: 9910160700
    • Qty Req: 4
    Our price: $32.76 List price: $40.45
  • Retainer Ring
    • Ref No: 32
    • Part No: 9910160691
    • Qty Req: 8
    Our price: $2.72 List price: $3.36
  • Connecting Rod
    • Ref No: 33
    • Part No: 9910760140
    • Qty Req: 4
    Our price: $98.46 List price: $121.56
  • Roller bearing
    • Ref No: 34
    • Part No: 9910750090
    • Qty Req: 2
    Our price: $277.60 List price: $342.71
  • Connecting rod ring
    • Ref No: 35
    • Part No: 9910750130
    • Qty Req: 2
    Our price: $51.69 List price: $63.82
  • Spacer washer
    • Ref No: 36
    • Part No: 9910540040
    • Qty Req: 2
    Our price: $55.95 List price: $69.07
  • Bearing
    • Ref No: 37
    • Part No: 9910230350
    • Qty Req: 2
    Our price: $168.67 List price: $208.24
  • Seal Ring
    • Ref No: 38
    • Part No: 9910160740
    • Qty Req: 2
    Our price: $39.44 List price: $48.69
  • Retainer Ring
    • Ref No: 39
    • Part No: 9910200390
    • Qty Req: 2
    Our price: $11.95 List price: $14.75
  • Base
    • Ref No: 40
    • Part No: 9910760201
    • Qty Req: 2
    Our price: $27.92 List price: $34.47
  • Crankshaft
    • Ref No: 41
    • Part No: 9910750170
    • Qty Req: 1
    Our price: $681.07 List price: $840.83
  • O-Ring
    • Ref No: 42
    • Part No: 9910390290
    • Qty Req: 1
    Our price: $2.10 List price: $2.59
  • Washer
    • Ref No: 43
    • Part No: 9910380243
    • Qty Req: 18
    Our price: $1.49 List price: $1.84
  • Washer
    • Ref No: 44
    • Part No: 9910250143
    • Qty Req: 4
    Our price: $1.93 List price: $2.38
  • Plug
    • Ref No: 45
    • Part No: 9910330173
    • Qty Req: 2
    Our price: $7.59 List price: $9.37
  • Accumulator Diaphragm, Buna-N
    • Ref No: 46
    • Part No: 9910550190
    • Qty Req: 1
    Our price: $24.75 List price: $30.55
  • O-ring
    • Ref No: 47
    • Part No: 9910650542
    • Qty Req: 1
    Our price: $1.97 List price: $2.43
  • Air Valve
    • Ref No: 48
    • Part No: 9910180020
    • Qty Req: 1
    Our price: $41.03 List price: $50.66
  • Accumulator Head
    • Ref No: 49
    • Part No: 9910620232
    • Qty Req: 1
    Our price: $53.91 List price: $66.55
  • Bolt
    • Ref No: 50
    • Part No: 9910621781
    • Qty Req: 8
    Our price: $2.39 List price: $2.95
  • Accumulator body
    • Ref No: 51
    • Part No: 9910680180
    • Qty Req: 1
    Our price: $141.32 List price: $174.47
  • Shield, 199 mm
    • Ref No: 52
    • Part No: 99101500350
    • Qty Req: 2
    Our price: $52.50 List price: $64.82
  • Bolt
    • Ref No: 53
    • Part No: 9910850251
    • Qty Req: 6
    Our price: $2.39 List price: $2.95
  • O-Ring
    • Ref No: 55
    • Part No: 9910740290
    • Qty Req: 2
    Our price: $1.92 List price: $2.37
  • Diaphragm Bolt
    • Ref No: 56
    • Part No: 9910580360
    • Qty Req: 4
    Our price: $14.04 List price: $17.33
  • Washer
    • Ref No: 57
    • Part No: 9910390314
    • Qty Req: 6
    Our price: $1.39 List price: $1.71
  • Plate
    • Ref No: 58
    • Part No: 9910580370
    • Qty Req: 4
    Our price: $11.37 List price: $14.04
  • Accumulator stud
    • Ref No: 59
    • Part No: 9910390670
    • Qty Req: 1
    Our price: $8.33 List price: $10.28
  • O-Ring
    • Ref No: 60
    • Part No: 9910620210
    • Qty Req: 1
    Our price: $2.48 List price: $3.06
  • O-Ring
    • Ref No: 61
    • Part No: 9910480440
    • Qty Req: 1
    Our price: $1.76 List price: $2.17
  • Flange Plug
    • Ref No: 62
    • Part No: 99102420120
    • Qty Req: 1
    Our price: $60.04 List price: $74.12
  • Washer
    • Ref No: 64
    • Part No: 99102420290
    • Qty Req: 2
    Our price: $0.75 List price: $0.92
  • Bolt
    • Ref No: 65
    • Part No: 99102420280
    • Qty Req: 2
    Our price: $3.62 List price: $4.47
