Hypro VDR50 Control Unit/Pressure Regulator

Hypro VDR50 Control Unit/Pressure Regulator

Brand:
Hypro
Weight:
7.41 lb
Item #
9910VDR50
1 review
1 1

Hypro VDR50 Control Unit/Pressure Regulator

Hypro VDR50 Control Unit/Pressure Regulator

Brand:
Hypro
Weight:
7.41 lb
Item #
9910VDR50
1 review

$450.66
$450.66 List Price: $777.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,352 points with this purchase.

See Details

View full details

Product Overview

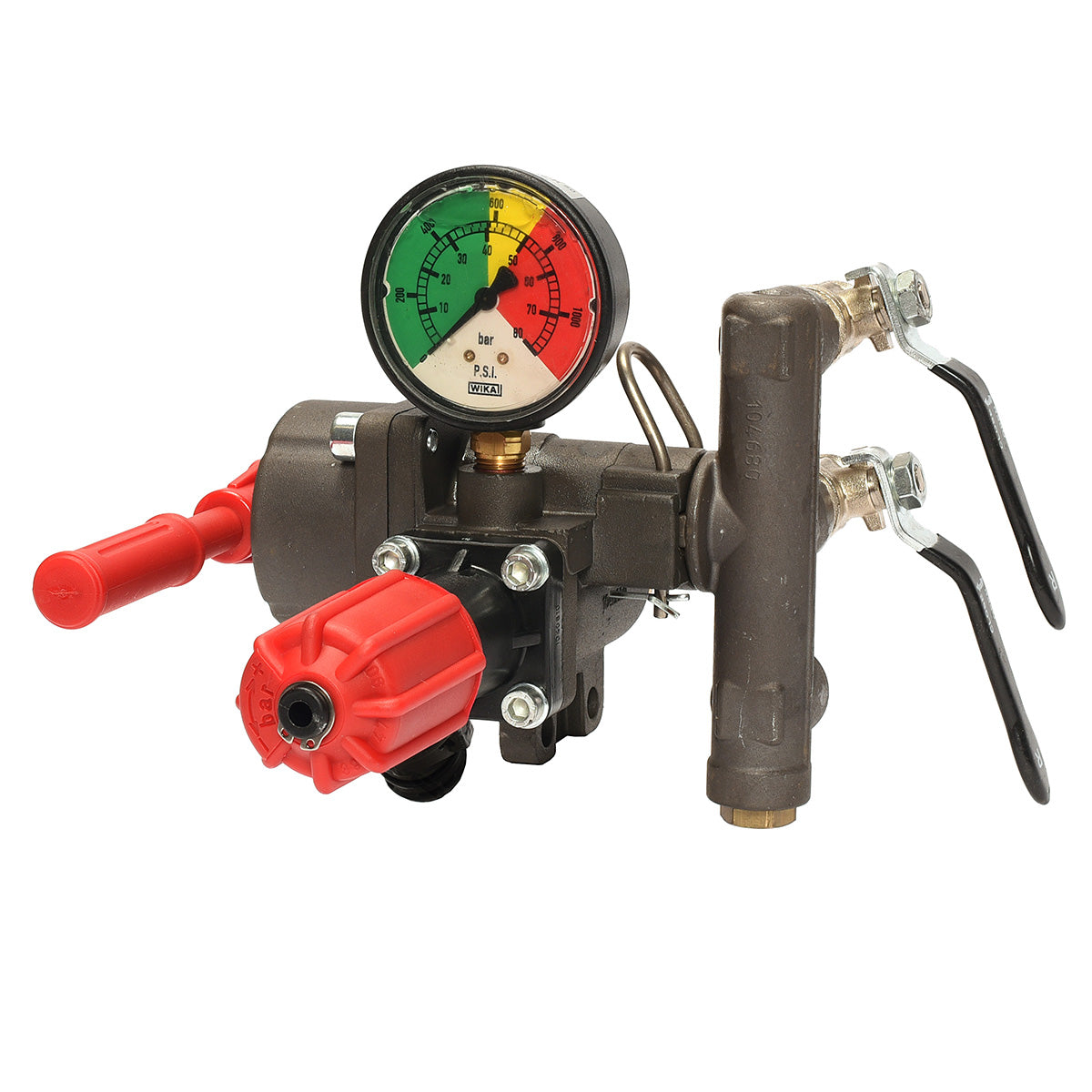

The Hypro VDR50 Control Unit/Pressure Regulator provides optimum pressure and superior output control of a sprayer with two hose barb outlets, pressure gauge, bypass lever, and adjustable high-pressure relief valve. This unit is designed for straightforward mounting or coupling directly to a pump, and offers the opportunity to plumb a return line to the tank for managing any excess flow and pressure.

Manufacturer description

This control unit, for mounting on pump model 9910-D813, 9910-D1064 and 9910-D1265, is capable of handling flow rates up to 35 gpm (132.5 lpm) and pressures up to 725 psi (50 bar). It includes a pressure gauge, one adjustable high pressure relief valve, one complete bypass lever, two 1/2" HB outlets with individual shut-offs and one 1" HB bypass. For additional ball valve, order Part Number 9910-130491.

Resources

Download Product Manual

Features

  • Mounts to pump models: 9910-D813, D1064 & D1265
  • Max flow: 35 gpm
  • Max pressure: 725 psi
  • Port sizes: 1" hose barb bypass, two 1/2" hose barb outlets with individual shut-offs
  • Pressure gauge: 0-1000 psi, color coded, glycerin filled
  • Weight: 3.5 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Hose Barb 1"
    • Ref No: 1
    • Part No: 9910550370
    • Qty Req: 1
    Our price: $13.20 List price: $16.30
  • Ring Nut
    • Ref No: 2
    • Part No: 9910550242
    • Qty Req: 1
    Our price: $9.23 List price: $11.39
  • O-Ring
    • Ref No: 3
    • Part No: 9910550350
    • Qty Req: 2
    Our price: $1.79 List price: $2.21
  • Port Adapter
    • Ref No: 4
    • Part No: 99101040780
    • Qty Req: 1
    Our price: $48.49 List price: $59.86
  • O-Ring
    • Ref No: 5
    • Part No: 9910550040
    • Qty Req: 1
    Our price: $1.76 List price: $2.17
  • Spacer
    • Ref No: 6
    • Part No: 99101040670
    • Qty Req: 1
    Our price: $32.16 List price: $39.70
  • Valve Seat
    • Ref No: 8
    • Part No: 99101040660
    • Qty Req: 1
    Our price: $67.92 List price: $83.85
  • Outlet ball valve w/o barb
    • Ref No: 9
    • Part No: 9910130491
    • Qty Req: 2
    Our price: $85.55 List price: $106.94
  • Retainer Clip
    • Ref No: 10
    • Part No: 99101040690
    • Qty Req: 2
    Our price: $24.41 List price: $30.14
  • 9910-550545 Pressure Gauge (Color Coded, Oil-Filled)
    • Ref No: 11
    • Part No: 9910550545
    • Qty Req: 1
    Our price: $59.03 List price: $72.88
  • Outlet Manifold
    • Ref No: 12
    • Part No: 99101040680
    • Qty Req: 1
    Our price: $86.04 List price: $106.22
  • O-Ring
    • Ref No: 13
    • Part No: 9910390180
    • Qty Req: 8
    Our price: $1.51 List price: $1.86
  • Plug
    • Ref No: 14
    • Part No: 9910130171
    • Qty Req: 2
    Our price: $4.75 List price: $5.86
  • Pin
    • Ref No: 15
    • Part No: 99101040820
    • Qty Req: 1
    Our price: $3.94 List price: $4.86
  • Bolt
    • Ref No: 16
    • Part No: 9910180030
    • Qty Req: 4
    Our price: $1.89 List price: $2.33
  • Selector Housing
    • Ref No: 17
    • Part No: 99101040720
    • Qty Req: 1
    Our price: $105.83 List price: $130.65
  • Pressure Release Lever
    • Ref No: 18
    • Part No: 99101040730
    • Qty Req: 1
    Our price: $44.36 List price: $54.77
  • O-Ring
    • Ref No: 19
    • Part No: 99101080200
    • Qty Req: 1
    Our price: $3.94 List price: $4.86
  • Selector Body
    • Ref No: 20
    • Part No: 99101040700
    • Qty Req: 1
    Our price: $46.81 List price: $57.79
  • Spring
    • Ref No: 21
    • Part No: 9910850680
    • Qty Req: 1
    Our price: $4.02 List price: $4.96
  • Ball
    • Ref No: 22
    • Part No: 9910850660
    • Qty Req: 1
    Our price: $27.07 List price: $33.42
  • Seat
    • Ref No: 23
    • Part No: 9910850650
    • Qty Req: 2
    Our price: $14.95 List price: $18.46
  • O-Ring
    • Ref No: 24
    • Part No: 9910740290
    • Qty Req: 2
    Our price: $1.92 List price: $2.37
  • O-Ring
    • Ref No: 25
    • Part No: 99101040710
    • Qty Req: 1
    Our price: $3.02 List price: $3.73
  • Main Body
    • Ref No: 26
    • Part No: 99101040600
    • Qty Req: 1
    Our price: $272.71 List price: $336.68
  • Bolt
    • Ref No: 27
    • Part No: 9910680560
    • Qty Req: 1
    Our price: $6.25 List price: $7.71
  • Spring
    • Ref No: 28
    • Part No: 99101040650
    • Qty Req: 1
    Our price: $6.64 List price: $8.20
  • Valve Cap
    • Ref No: 29
    • Part No: 99101040640
    • Qty Req: 1
    Our price: $43.15 List price: $53.27
  • Diaphragm
    • Ref No: 30
    • Part No: 99101040630
    • Qty Req: 1
    Our price: $29.18 List price: $36.02
  • O-Ring
    • Ref No: 31
    • Part No: 9910880830
    • Qty Req: 1
    Our price: $1.89 List price: $2.33
  • Piston
    • Ref No: 32
    • Part No: 99101040620
    • Qty Req: 1
    Our price: $35.17 List price: $43.42
  • Spring
    • Ref No: 34
    • Part No: 99101040830
    • Qty Req: 1
    Our price: $35.21 List price: $43.47
  • Spring Guide
    • Ref No: 35
    • Part No: 9910394770
    • Qty Req: 1
    Our price: $23.26 List price: $28.72
  • Spring Guide Body
    • Ref No: 36
    • Part No: 99101040610
    • Qty Req: 1
    Our price: $34.87 List price: $43.05
  • Washer
    • Ref No: 37
    • Part No: 9910550331
    • Qty Req: 4
    Our price: $1.51 List price: $1.86
  • Bolt
    • Ref No: 38
    • Part No: 9910780330
    • Qty Req: 4
    Our price: $2.60 List price: $3.21
  • Knob
    • Ref No: 39
    • Part No: 9910394790
    • Qty Req: 1
    Our price: $34.19 List price: $42.21
  • Retaining Ring
    • Ref No: 40
    • Part No: 9910480550
    • Qty Req: 4
    Our price: $1.68 List price: $2.08
  • 3/4" MNPT Male Adapter
    • Ref No: 43
    • Part No: 99101040761
    • Qty Req: 1
    Our price: $47.62 List price: $58.79
  • 3/4" MNPT Female Adapter
    • Ref No: 48
    • Part No: 99101040771
    • Qty Req: 1
    Our price: $47.62 List price: $58.79
  • 1" Straight Hose Barb
    • Ref No: 49
    • Part No: 9910550210
    • Qty Req: 1
    Our price: $7.47 List price: $9.22
  • Nut
    • Ref No: 50
    • Part No: 9910390270
    • Qty Req: 2
    Our price: $1.68 List price: $2.08
  • Bolt
    • Ref No: 51
    • Part No: 9910180370
    • Qty Req: 2
    Our price: $4.02 List price: $4.96
  • Mounting Bracket
    • Ref No: 52
    • Part No: 9910850690
    • Qty Req: 1
    Our price: $39.48 List price: $48.74
  • Cotter Pin
    • Ref No: 53
    • Part No: 99101040950
    • Qty Req: 2
    Our price: $1.39 List price: $1.71
  • Bolt
    • Ref No: 54
    • Part No: 99101150650
    • Qty Req: 1
    Our price: $1.96 List price: $2.42
  • O-Ring
    • Ref No: 55
    • Part No: 9910770130
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • 1/2" Hose Barb & Nut
    • Ref No: 56
    • Part No: 9910110130
    • Qty Req: 2
    Our price: $15.09 List price: $18.63
