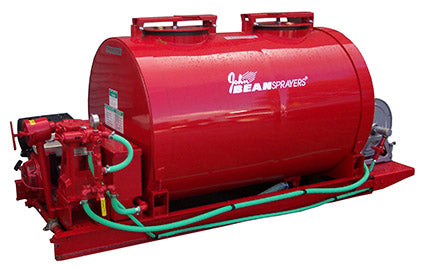

The John Bean DM10E200FERH 200 Gallon Hydraulic Sprayer (Fiberglass Tank) has an adjustable relief valve that can provide anywhere between 50 and 800 PSI. To reduce pulsation, an air chamber has been installed within the discharge line. Numerous optional accessories can be obtained for this device, including spray booms, hose reels, drawbars and axle packages. The battery is not included in this piece.

Optional accessories shown in picture. Features: FMC/John Bean R10 piston pump capable of 10 GPM @ 500 PSI Honda 8 HP electric start gas engine Relief valve (50-800 psi) is adjustable with replaceable packing, valves and seat Star type suction strainer inline between suction point and pump inlet, 16 mesh screen Air chamber (pulsation dampener) installed in discharge line to reduce pulsation 15" filler opening Vented non-leak screw off lid Mechanical paddle agitation with lubricated bearings and packing ring seals 0-1000 psi liquid filled pressure gauge Tank level sight glass Battery is not included from factory for the electric start engine Standard color is John Bean red

Standard sprayer includes skid frame, tank, pump and engine. Pictures shows additional options available for purchase but not included.

• Tank: 200 gallon fiberglass
• Additional options: Axle packages for turf and roadway, drawbars, hose reels and spray booms
• Frame: Skid, steel
• Color: John Bean red
• Pump: R10 piston pump
• Gas engine: Honda GX240 8 hp electric start
• Max flow: 10 gpm
• Max pressure: 500 psi
• Dimensions: 64" L x 43" W x 37" H
• Weight: 600 lbs
