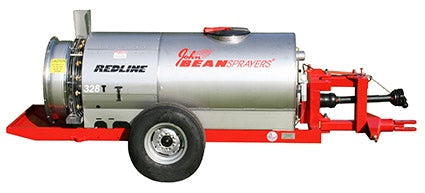

John Bean Redline Model 328T Air Sprayer w/ Diaphragm Pump (Tracking Hitch)

John Bean Redline Model 328T Air Sprayer w/ Diaphragm Pump (Tracking Hitch)

Brand:
FMC/John Bean
Weight:
1000.0 lb
Item #
5284549
1 1

John Bean Redline Model 328T Air Sprayer w/ Diaphragm Pump (Tracking Hitch)

John Bean Redline Model 328T Air Sprayer w/ Diaphragm Pump (Tracking Hitch)

Brand:
FMC/John Bean
Weight:
1000.0 lb
Item #
5284549

View full details

Product Overview

John Bean Redline Model 328T Air Sprayer w/ Diaphragm Pump (Tracking Hitch)

300 Gallon Capacity, Tracking Hitch

24 GPM, 650 PSI

Dimensions:  182" L x 64" W x 64" H

Catalog Number 5284549

Features:
  • 300 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
  • 32" (.82M) twelve blade variable axial flow with inside air handling at discharge. Galvanized fan shroud. Stainless steel manifolds. Two speed with neutral gearbox, variable 30 - 60 tractor horsepower.
  • PTO Power - Constant velocity
  • Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
  • Bertolini PA 908, 3 piston diaphragm, 24 GPM (91L) @ 540 RPM pressure to 650 PSI (45 bar)
  • 14 double rollover nozzles with diaphragm check valves
  • Suction Strainer mounted under hood on right side, cylindrical fi
