John Bean Redline Model 448 Air Sprayer w/ Centrifugal Pump
John Bean Redline Model 448 Air Sprayer w/ Centrifugal Pump
Brand:
FMC/John Bean
Weight:
1000.0 lb
Item #
5284272
John Bean Redline Model 448 Air Sprayer w/ Centrifugal Pump
John Bean Redline Model 448 Air Sprayer w/ Centrifugal Pump
Brand:
FMC/John Bean
Weight:
1000.0 lb
Item #
5284272
Collapsible content
Product Overview

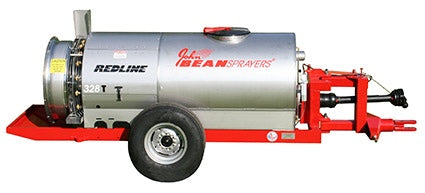

John Bean Redline Model 448 Air Sprayer w/ Centrifugal Pump
400 Gallon Capacity, Conventional Hitch
70 GPM, 160 PSI
Dimensions: 180" L x 64" W x 64" H
Catalog Number 5284272
Features:
400 Gallon Capacity, Conventional Hitch
70 GPM, 160 PSI
Dimensions: 180" L x 64" W x 64" H
Catalog Number 5284272
Features:
- 400 gallon round 304 stainless steel with mechanical agitator. One-eighth-turn hinged lid with air vents. Plastic basket-type filler strainer. Tank level sight gauge.
- 32" (.82M) twelve blade variable pitch fan with inside air handling at discharge. Galvanized fan shroud. Stainless steel manifolds. Two speed with neutral gearbox, variable 30 - 60 tractor horsepower.
- PTO Power - Constant velocity
- Remote manual left and right spray control valve plus remote bypass valve. (Electric optional)
- Two Stage Centrifugal Pump rated at 70 GPM, 160 PSI
- 14 double rollover nozzles with diaphragm check valves
- Suction Strainer mounted under hood on right side, cylindrical filter and built in check valve.
- Axle i
